Product Details:
Payment & Shipping Terms:
|
| Main Feature: | Sealed Acid Battery, Free-maintenance Battery | Applications: | Sensitive Electronic Equipment, Telecom Etc |
|---|---|---|---|
| Voltage Range: | 120VAC | Frequency Range: | 40-60HZ |
| High Light: | Single Phase UPS,Three Phase UPS |
||

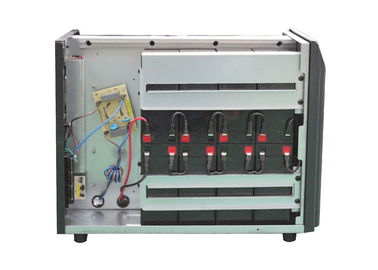

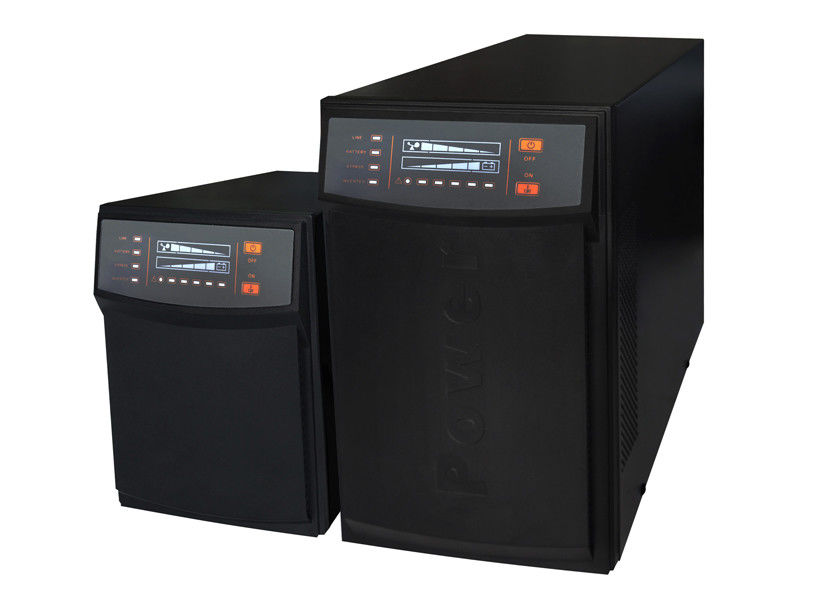

Single Phase High Frequency Online UPS With Sealed Acid Battery
Applications:
Servers, Data-Center Critical network devices, Sensitive electronic equipment, Telecom, Departmental servers, smaller LANs, workstation, IPC, Small medical equipment, small precision electronic instrument
Specifications:
| MODEL | Castle Series | C1KVA | C1KS | C2KVA | C2KS | C3KVA | C3KS |
| CAPACITY | VA/W | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | |||
| INPUT | Voltage Range | 120VAC | |||||
| Frequency Range | 40-60HZ(adjustable) | ||||||
| Phase | Single phase with ground | ||||||
| Harmonic Distortion | ＜4% THD(Linear loads); | ||||||
| ＜7%THD(Non-Linear loads); | |||||||
| Power Factor | ≧0.97 | ||||||
| Generator Input | Support | ||||||
| OUTPUT | Voltage | 120VAC | |||||
| Voltage Regulation | ± 2% | ||||||
| Frequency (Syn Range) | 46 ~ 54Hz / 56 ~ 64Hz | ||||||
| Frequency (Batt Mode) | 50/60Hz ± 0.2 Hz | ||||||
| Current Crest Ratio | 3:01 | ||||||
| Harmonic Distortion | ≦2% THD ( Linear Load) | ||||||
| ≦5% THD ( Non-Linear Load) | |||||||
| Waveform | Pure Sinewave | ||||||
| Outlet | IEC*4 | IEC*6 | IEC*4+terminal | ||||
| Overload Capacity | 105%-125%:turn to bypass after 1min; | ||||||
| 125%-150%:turn into bypass after 30s; | |||||||
| >150%: turn to bypass after 0.5s | |||||||
| EFFICIENCY | AC Mode | >87% | |||||
| Battery Mode | >83% | ||||||
| BATTERY | Battery Type | 12V/7Ah | Depending on capacity of external batteries | 12V/7Ah | Depending on capacity of external batteries | 12V/7Ah | Depending on capacity of external batteries |
| Batteries Nos. | 3 | 8 | 8 | ||||
| Backup Time (Half Load) | >5min | >5min | >5min | ||||
| Recharge Time (90%) | 8Hours | 8Hours | 8Hours | ||||
| Charging Current(Max) | 1.0A | 4.0A | 1.0A | 4.5A | 1.0A | 4.5A | |
| Rated Charging Voltage | 41.1±0.3VDC | 109.6±0.8VDC | 109.6±0.8VDC | ||||
| TRANSFER TIME | AC to DC | Zero | |||||
| Inverter to Bypass | 4ms (Typical ) | ||||||
| INDICATOR | LCD display | Load/Battery/Input/Output/Operating Mode | |||||
| AUDIBLE ALARM | Battery Mode | Sounding every 4 seconds | |||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continuously Sounding | ||||||
| DIMENSION | Tower Case (D*W*H) | 410*144*220mm | 465 x 190 x 350mm | 465 x 190 x 350mm | |||
| WEIGHT | Tower Case | 13kg | 9kg | 31kg | 15.5kg | 35kg | 15.5kg |
| ENVIRONMENT | Operating Environment | 0-40° C | |||||
| Relative Humidity | 20-90% (NON-CONDENSING) | ||||||
| Noise Level | <45dB @ 1 Meter | ||||||
| INTERFACE | Smart RS-232 / USB (Option) |
Software supports Windows Family, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
|||||
| External Slot (Option) | External Type of SNMP / AS400 Relay Card / RS485 | ||||||
