3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel

3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel
3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel 3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel

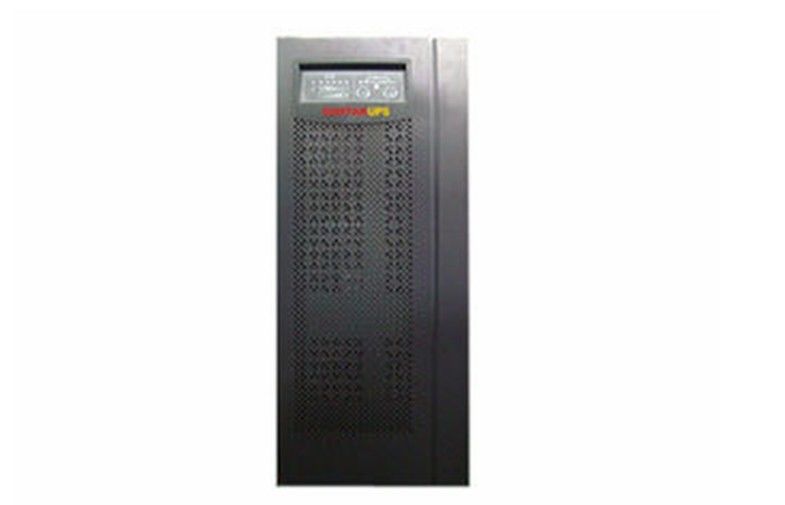

Large Image :  3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

Single Phase UPS

,

uninterruptible power supply



Quick Details:



        1. Input Voltage Range: 208VAC-478VAC

        2. Output Voltage: 220VAC

        3. Outlet: Terminal

        4. Charging Current(Max): 5A

        5. Rated Charging Voltage: 221VDC

        6. Tower Case (D*W*H): 248*500*616mm



3 Phase Online UPS 3C10KS, 3C15KS, 3C20KS N+X parallel

  • Parallel Units with a Single Output of up to 80kVA
  •  True N+1 Redundancy
  •  DSP Double-Conversion On-line Sine wave Design
  •  Input Power Factor Correction
  •  Hot-Swappable User Replaceable Batteries
  •  LCD Display with Advanced Monitoring for Easy UPS Management
  •  Programmable 50/60Hz Frequency Conversion
  •  Optional Remote Emergency Power Off (REPO)
  •  Wide Input Voltage Window
  •  Precision Output Voltage Regulation
  •  Superior Brownout, Surge & Transient Protection
  •  Optional Extended Battery Banks & Chargers
  •  RS-232C, USB & Optional SNMP/HTTP Agent
  •  WINPOWER® UPS Monitoring & Management Software



Applications:

Server, data centers, critical network devices, sensitive electronic equipment, telecom, enterprise servers,

small and medium sized LANs, small rooms, small precision electronic instrument



Specifications:



MODEL

Castle Series

3C10KS

3C15KS

3C20KS

CAPACITY

VA/W

10000VA/8000W

15000VA/12000W

20000VA/16000W

INPUT

Voltage Range

208VAC-478VAC

Frequency Range

46Hz-54Hz

Phase

three phase with ground

Power Factor

≧0.95

Harmonic Distortion

<5% THD(Linear loads);

Generator Input

Support

OUTPUT

Voltage

220VAC

Voltage Regulation

± 1%

Frequency (Syn Range)

46 ~ 54Hz

Frequency(Batt Mode)

50Hz±0.1%

Current Crest Ratio

3:01

Harmonic Distortion

<2%(liner 100% load)

Waveform

Pure Sinewave

Outlet

Terminal

Terminal

Terminal

Overload Capacity

105%-125%:turn to bypass after 1min;
125%-150%:turn into bypass after 30s;
>150%: turn to bypass after 0.5s

EFFICIENCY

AC Mode

>90%

Battery Mode

>90%

BATTERY

Battery Type

Depending on capacity of

external batteries

Depending on capacity

of external batteries

Depending on

capacity of e

xternal batteries

Batteries Nos.

Backup Time(Half Load)

Recharge Time(to 90%)

Charging Current(Max)

5A

5A

5A

Rated Charging Voltage

221VDC

221VDC

221VDC

TRANSFER TIME

AC to DC

Zero

Inverter to Bypass

4ms (Typical )

INDICATOR

LED display

UPS Status/Load Level/Battery Level /Battery Mode/Line Mode/Bypass/Fault

AUDIBLE ALARM

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

Fault

Continuously Sounding

DIMENSION

Tower Case (D*W*H)

248*500*616mm

248*500*616mm

248*500*616mm

WEIGHT

Tower Case

38.5kg

55kg

55kg

ENVIRONMENT

Operating Environment

0-40° C

Relative Humidity

20-90% (NON-CONDENSING)

Noise Level

<45dB @ 1 Meter

INTERFACE

Smart RS-232 / USB
(Option)

Software supports Windows Family, Linux,

 Sun Solaris, IBM Aix, Compaq True64, SGI IRIX,

 FreeBSD, HP-UX, and MAC

External Slot (Option)

External Type of SNMP / AS400 Relay Card / RS485





Competitive Advantage:

  • Stand-Alone Units Lower Costs
  •  Pure sine wave output
  •  True Regenerative On-line Design
  •  N+1 Redundancy Ensures Reliability
  •  Input Power Factor Correction
  •  DSP control technique
  •  Plus Frequency Converter Ready

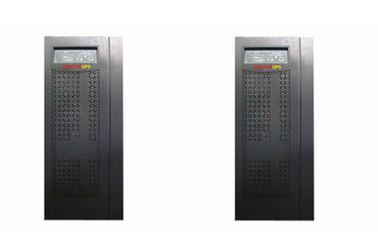

3 Phase Online UPS 3C10KS 3C15KS 3C20KS N+X parallel 0
