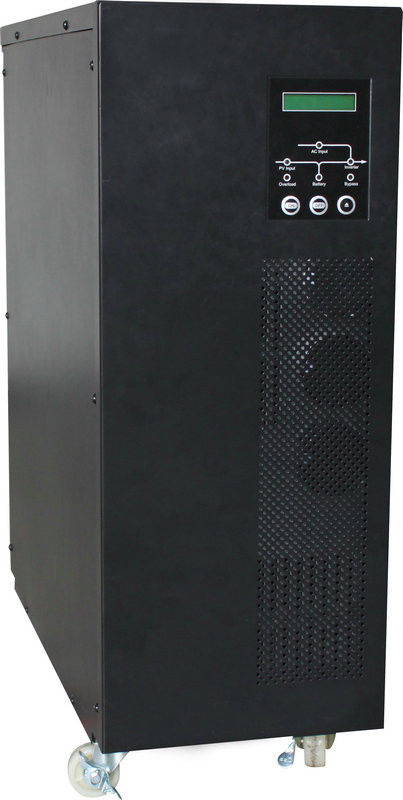

3000W / 3KW Off Grid Solar Inverter Black With 120/240V Split Phase Power

3000W / 3KW Off Grid Solar Inverter Black With 120/240V Split Phase Power
3000W / 3KW Off Grid Solar Inverter Black With 120/240V Split Phase Power

Large Image :  3000W / 3KW Off Grid Solar Inverter Black With 120/240V Split Phase Power

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Warranty: 3 years
Name: Off Grid Solar Inverter
Power: 3000W
Battery Voltage: 192Vdc
Display Panel: LED LCD
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

off grid solar inverters

,

off grid inverters





•  3000W off-grid solar inverter with isolated transformer
•  Flexible design for systems from 8 to 80kW
•  Dual AC inputs
•  Field serviceable modular design
•  GSLC load center option allows for quick and easy installation
•  Unsurpassed surge capacity
•  Grid-interactive and stand-alone capability in the same package
•  120/240V split-phase power
•  Built on our core FX FET board technology— the industry standard for reliability





Description:


SI series Inverter/Charger is a pure sine wave inverter with inbuilt MPPT charge controller. It can be used in the Grid Interactive/Hybrid system. With the GSF Grid/Hybrid system, solar energy is made available 24 hours a day in the event of a utility outage, providing reliable power and peace-of-mind. At night, battery power, which is charged from the PV/AC, is your power source. With the design of isolated transformer, the inverter not only can take normal household appliance, but also communicating equipments.




Applications:


1.Household appliance
2.Communication station equipments
3.Computer peripheral equipments





Specifications:



Model

SI3000

SI5000

SI6000

SI8000

 Power

3000W

5000W

6000W

8000W

Battery voltage

192Vdc

Working mode

 PV(Photovoltaic priority) / AC(AC priority)Optional

PV

MPPT voltage range

192Vdc--400Vdc

PV  Current

≤40A

≤60A

≤60A

≤80A

Max charge current

10A--40A

10A--40A

Conversion efficiency

≥98%

AC Status(option)

Input voltage range

220/230/240Vac±25%(customized)

Input frequency range

45-65 Hz(Auto transfer to inverter power when over frequency)

Output voltage range

220Vac±5%

 Input PF.(AC/DC)

80%

Efficiency

≥90%

 Charge current

12A Max

AC over load

110% load, 225s transfer to bypass;120% load ,60s transfer to bypass; 150% load,10s  transfer to bypass

Short circuit

Circuit Breaker

Inverter Output

Output voltage

220/230/240Vac ± 5%

Output frequency

50 Hz / 60Hz ± 1% Frequency Adaptive

Distortion

Line load≤ 5%

PV-AC transfer time

≤0s

Max efficiency

≥93%

Inverter overload

110% load, 225s transfer to bypass;120% load ,60s transfer to bypass; 150% load,10s  transfer to bypass

No load off (Optional)

Load< 5% after 1min , transfer to bypass mode

Short circuit

System Shut down automatically

Display

Display panel

LED+LCD

Alarm

AC abnormal

Beeping 1/4S, auto. Silence after 40s

Battery Low

5s

Over load

1s

Communication port  (optional)

RS232 / USB / SNMP(Setup available for regular start/shutoff)

Mechanical Details

Output sockets

Terminals

Surge protection

Optional

IP class

IP20

Ambient temperature

0℃ ~ 40℃

Ambient humidity

10% ~ 90%(Non Condensed)

Noise

≤ 50dB

Certificates

EN62040-2:2006;EA61000-3-2:2006; EA61000-3-3:2008 CE, RoHS

Warranty

Standard 3 years

Unit Weight

60

62

66

85

Shipping Weight

68

70

74

93

Inverter Dimensions (H x W x D)

560X562X725

Shipping Dimensions (H x W x D)

650X355X815





Competitive Advantage:


1 Isolated and Pure Sine Wave technique
2 Adjustable Charging current
  Charging current can be adjusted from 10Amp to 60Amp based on the configured capacity of the battery
3 Unmatched ability to utilize energy sources with solar , generator and AC.
4. Wide input range; High-speed synchronous conversion; Online protection
5 The system can track the Mains phase automatically, and make sure the inverter output voltage is the completely same as the Mains voltage
6.Intelligent No-load auto shutdown technology (optional)
7 Friendly alarm system; LCD+LED display mode
