Product Details:
Payment & Shipping Terms:
|
| Place of Origin: | China (Mainland) | Brand Name: | OEM | Model Number: | GTI-300W 220V |
| Output Power: | 201 - 300W | Output Type: | Single | Size: | 18.7*12.6*5.1CM |
| Weight: | 0.8Kg (1.8lbs) | Input Voltage: | 10.8-28VDC | Output Voltage: | 220V/180V-260V |
| Type: | DC/AC Inverters | Output Frequency: | 60Hz/55-63Hz; 50Hz/45-53Hz | Output Current: | 0.91A/220V |
| Maximum power factor: | >0.99 |
Voltage of solar panel recommenced: |
Vmpp 18V |
Recommended input power(STC): |
420Watt |
| PV panels connection: | Parallel connection | Certificate: | CE |
--Higher project profitability
--Reduced design costs
--Lower installation cost of energy
--Smart &Safe system

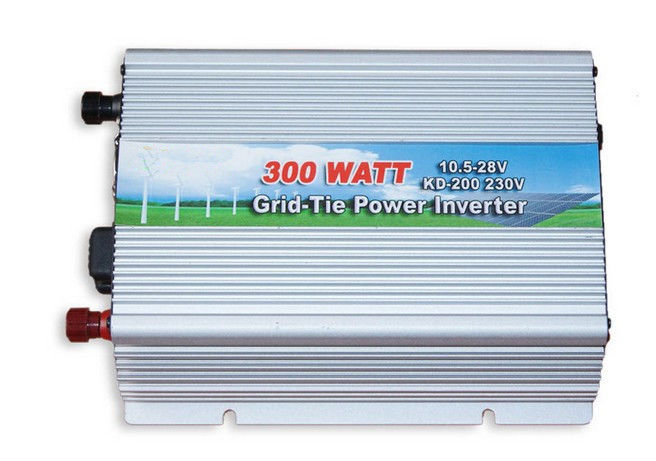

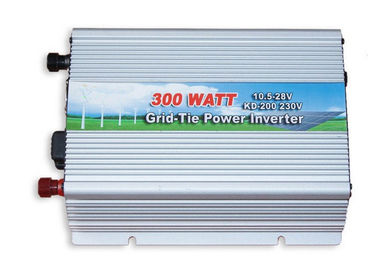

GTI-300W 220V- MIRCOINVERTER TECHNICAL DATA
|
Input Data (DC) |
Microinverter model GTI-300W 220V
Recommended input power(STC) 420W
Input voltage range 10.5-28V
Voltage of solar panel recommenced Vmpp 18V
|
Output Data (DC) |
Maximum output power 300W
Nominal voltage/ range 220V /180V-260V
Nominal frequency/ range 50Hz/45-53Hz
Maximum power factor 0.99
Output wave of microinverter pure/ true sine wave
Stacking using of microinverters higher AC power output
Solar panel in paralleled low /safe DC Volt. & higher DC output
|
Efficiency |
Peak inverter efficiency 92.0%
Night time power consumption < 0.1w
|
Mechanical Data |
Ambient temperature range -25 to +60
Operating temperature range -40 to +80
Cooling Fan cooling
Enclosure environmental rating Indoor type design
|
Features |
System connection Safe & smart, Plug and play
Communication Power line (WVC only)
Warranty 1-year limited warranty (GTI/ WV series)
3-year limited warranty,15-year service life deign(WVD)
5-year limited warranty, 25-year service life deign (TP / WVC)
Monitoring Free lifetime monitoring via Kaideng software (WVC only)
