Product Details:
Payment & Shipping Terms:
|
| High Light: | portable power inverter,power inverter for car |
||
|---|---|---|---|

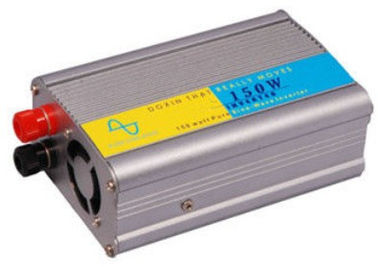

| Model: DXP150 | Wave form: Pure sine wave |
| Continuous power: 150W | Surge power: 300W |
| Rated input volt: 12V/24VDC | Input voltage range: 10-16VDC |
| Output volt: 110/220V/230V/240VAC | Frequency: 50/60±1Hz |
| THD: ≤5% | Standby input power: <10W |
| Efficiency: >87% | Max outer temperature: <65°C |
| Cooling: Fan | Overload and short-circuit protection: Yes |
| Dimension(L*W*H): 160*90*50MM | Packing size: 49*46*47CM(40pcs/ctn) |
|
PROTECTION SPECIALTY
High voltage cut off: >DC15V±1V |
Low voltage cut off: DC10V±0.3V |
| Input low voltage protection: 9V±0.2V | Input high voltage protection: 17V |
| Low input voltage alarm: 9V | Temperature protection: >70°C |
| Operating temperature: -20°C ~ +40°C | Storage temperature: -30°C ~ +80°C |
| Input anti-access protection: Self repair | Output short-circuit protection time: 2~3 seconds |
|
Output overload(>200W) protection time: 2~3 seconds |
Output overload(<180W) protection time: 30 seconds |
| STATUS INSTRUCTIONS |
| Proper functioning indication: Green lighting constantly |
|
INPUT VOLTAGE ABNORMAL INDICATION: 1. Input low-voltage protection: Red light and have A long whistle sounded 2. Low input alarm: Red light flashing, make bumming sounds
3. Input high voltage protection: Red light and have A long whistle sounded |
|
OUTPUT ABNORMAL INDICATION:
1. Output overload: Yellow light bright, after 30 seconds, light will turns red, and have A long whistle sounded 2. Output overload or short-circuit protection: short-circuit 2~3 seconds, the light turns red and have a long whistle sounded |
|
PURE SINE WAVE: As inductive load, is good to run precise instrument. |
MODIFIED SINE WAVE: Suitable for general electrical equipment |
1) In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, 3P air condition, and etc.
6) Power tool series: electric saw, drilling machine, punching machines, air compressors etc.
Ideally suitable for Journeys, Camping, Tents, Boat Trip,
Working on the way and everywhere, where is no electricity !
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use
110v/ 220v electrical appliances.
