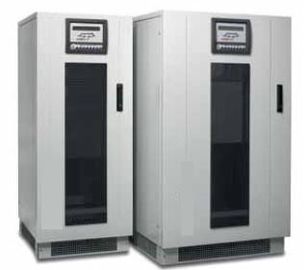

3Ph in / out Low Frequency Online UPS GP9312C GP9332C Series 10 - 200KVA with 8KW - 160KW

3Ph in / out Low Frequency Online UPS GP9312C GP9332C  Series 10 - 200KVA with 8KW - 160KW
3Ph in / out Low Frequency Online UPS GP9312C GP9332C  Series 10 - 200KVA with 8KW - 160KW 3Ph in / out Low Frequency Online UPS GP9312C GP9332C  Series 10 - 200KVA with 8KW - 160KW

Large Image :  3Ph in / out Low Frequency Online UPS GP9312C GP9332C Series 10 - 200KVA with 8KW - 160KW

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

Pure Sine Wave UPS

,

uninterruptible power system

3Ph in / out Low Frequency Online UPS GP9332C Series 10 - 200KVA with 8KW - 160KW



Key Features:

  1. Three phase in/three phase out, supporting 380/400/415VAC, 50/60Hz power supply system.
  2. Pure online double conversion structure, can provide best quality power supply, suitable for variety kinds of load, high overload capacity.
  3. Wide input voltage range, suitable for harsh power environment
  4. Intelligent battery management, can extend battery life.
  5. Large LCD display, friendly man-machine interface.
  6. touch screen optional

GP9110C GP9310C Series Producing Pictures (UPS Manufacturer)

Applications:
Medium-sized room IDC data exchange center, Medium-scale network management system, Billing Center, Banking / Securities Settlement Center, Industrial process control applications, the field of traffic control, etc.

GP9330C series Technical Specifications


Model

GP9330C 10-200KVA

10 KVA

15 KVA

20 KVA

30 KVA

40 KVA

60 KVA

80 KVA

100KVA

120KVA

160KVA

200KVA

Capacity

10KVA

/8KW

15KVA

/12KW

20KVA

/16KW

30KVA

/24KW

40KVA

/32KW

60KVA

/48KW

80KVA

/64KW

100KVA

/80KW

120KVA

/96KW

160KVA

/128KW

200KVA

/160KW

Nominal Voltage

380VAC Three phase four wires +G

Nominal Frequency

50/60HZ

AC Input

Voltage Range

380VAC±25% Three phase 4 wires +G

Frequency range

50/60HZ±5%

soft start

0-100%   5sec

Power factor

>0.92(with input filter)

Bypass Input

voltage range

380VAC±25% Three phase 4 wires +G

Frequency range

50/60HZ±10%

Inverter bypass

(overload)0ms





Output

Voltage Precision

380V±1% (steady load), 380V±3%(Load Fluctation)Three phase four wires +G

Frequency Precision

50/60Hz±0.05Hz(battery powered)

Power factor

0.8((lagging)

Wave Distortion

linear load<3%, non-linear load <5%

Steady-state response time

<10ms

Overload capability

110% Normal Running ; 125% for 10 min ;150% for 1 min

Static switch

automatism

Battery

Nominal battery voltage

360V

Float Charging voltage

405V

Cut-off voltage

315V

Maximum discharge current

28A

42A

56A

85A

113A

169A

225A

282A

338A

381A

507A

Charge current

1A-50A(According to the configuration of battery capacity which can be set)

Other

Display

LED/LCD display

Alarm

Sound and light alarm

Protection

UPS over current , short circuit , battery under voltage , over temperature

Working environment



Acoustic noise

60-65dB

Operating environment

Temperature:0-40℃   Humidity :10%-90%(Non-condensing)

Case color

Gray(Optional)

Physical Characteristics

Weight(KG)

N.W

200

224.7

224.7

354.8

412.3

513.9

700

860

900

1250

1380

G.W

226.8

251.5

251.5

389.5

447.5

552.3

740

900

960

1310

1440

Dimensions:  ( W x D x H )mm

450×720×1120

710×720×1450

710×830

×1500

1100×860×1680

1500×1120×1800

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice
