Product Details:
Payment & Shipping Terms:
|
| High Light: | rack mount ups,Rack Mounted UPS |
||
|---|---|---|---|

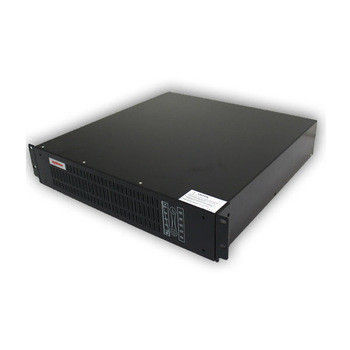

Rack mount online ups 1KVA--10KVA,networking ups,large LCD/LED display
Specification:
| Rack Mount UPS Model | RM1K | RM1KL | RM2K | RM2KL | RM3K | RM3KL | RM6KL | ||||||
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | 6KVA/4200W | |||||||||
| Input | Voltage | (115~300)VAC | (176~276)VAC | ||||||||||
| Frequency | 46~54Hz/56~64Hz | ||||||||||||
| Output | Voltage | 220/230/240(1± 1%)VAC | |||||||||||
| Frequency |
50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz), Battery Mode: 60Hz (1± 0.2%) |
||||||||||||
| Output Wave Form | Sine Wave | ||||||||||||
| Back-up Time (Minute) | Full Load | ≥ 5 | Depends on the capacity of the external batteries bank | ≥ 9 | Depends on the capacity of the external batteries bank | ≥ 5 | Depends on the capacity of the external batteries bank | Depends on the capacity of the external batteries bank | |||||
| Half Load | ≥ 14 | ≥ 21 | ≥ 15 | ||||||||||
| Battery Nominal Voltage | 36VDC | 96VDC | 240VDC | ||||||||||
| Transfer Time | 0ms | ||||||||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | 105%~130% 10min, over 150%1min | |||||||||||
| Communications | RS-232+Intelligent Slot | ||||||||||||
| Operating Environment | Temperature | 0~40Degree | |||||||||||
| Humidity | 15%~90% | ||||||||||||
| Dimensions(W*D*H)mm | 482.6*450*88 | 482.6*600*130 | |||||||||||
| Net Weight(Kg) | 16.30 | 9.10 | 10.5 | 11.5 | 11.50 | 12.30 | 19.5 | ||||||
