Product Details:
Payment & Shipping Terms:
|
| High Light: | automatic voltage stabilizer,digital automatic voltage regulator |
||
|---|---|---|---|

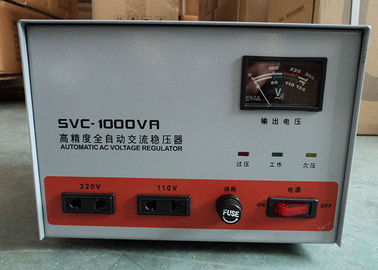

1KVA SVC 110V/220V IP20 Indoor Single Phase AC Power Stabilizer 50Hz/60Hz
Quick Detail:
| Capacity | 1KVA |
| Certificate | CE |
| Model | SVC |
| Phase | Single Phase |
Description:

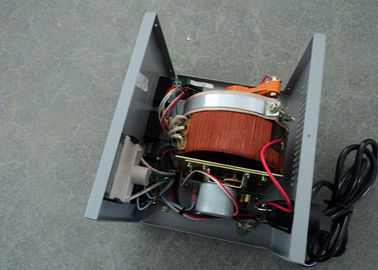

SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state. The series of stabilizers driven, of general type, the voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
Applications:
Computers ,test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment.
Specifications:
| Input Voltage |
Single phase 220V±20% The other input voltage range and rated voltage can be custom designed. |
| Output Voltage | Single phase 220V±1-5%;110V±4% |
| Supply Frequency | 50/60Hz |
| Insulation Resistance | ≥2MΩ |
| Waveform Distortion | nil |
| Insulation Class | H class |
| Efficiency | >95% |
| Overload Rating | Withstand 200% overload in short time |
| Protection class | IP20(indoor), outdoor type on request |
| Electrical safety | CE equivalent |
| Operational Temperature | -5 °C to +45 °C |
Competitive Advantage:
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage protection etc.
