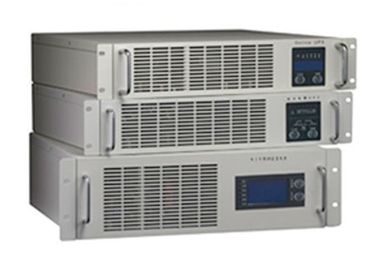

220 / 230 / 240V 2kVA Rack mount online UPS LCD Panel , 72V DC for overcharge protection

Model

C1KR

C1KSR

C2KR

C2KSR

C3KR

C3KSR

Rated power

1000VA/800W

2000VA/1600W

3000VA/2400W

AC  Input

Input system

Single phrase & earth ground

Range voltage

210/220/230Vac

Frequency

50/60Hz

Voltage  range

115~300VAC±5 @half load; 176-296VAC±5@full load

Frequency range

45~55Hz±0.5Hz or 55~65Hz±0.5Hz auto sense

Power factor

0.99

Voltage range of bypass

65VAC×(1±5%)~280VAC×(1±5%)

Battery Input

Type

Lead-Acid maintenance-free

Voltage range of battery

36VDC(24V/48Voptional)

72VDC(48V/96Voptional)

96VDC

(48V/72Voptional)

Inside batteries

12V7AH

-

12V7AH -

-

12V7AH -

-

Backup Time

Standard ups: Half loaded≥10minutes,Full loaded ≥5minutes
Long backup ups: depend on the external batteries

Charging current

1A

7A

1A

7A

1A

7A

AC Output

Output system

Single phrase & earth ground

Output voltage

210/220/230Vac±2%

Output frequency

50±5Hz(line normal, according to line) 50Hz±1%(line abnormal)

Dynamic voltage transient range

<5%

Dynamic transient restore

< 60ms

Waveform

True sine wave

Power factor

0.8

Overload capability

105~125%≥ 60s,126~150%≥30s  The recovery point is 90%

Current peak coefficient

3:1

Transfer time

0ms (AC to DC)

< 4ms(AC to Bypass)

Efficiency

85%

88%

THD

<2% full load(linear load)

Panel display

LCD and LED

 I/P Voltage, I/P& Frequency,Battery voltage,UPS status, load, temperature,O/P Voltage,Frequency, B/P Voltage,Frequency

Power Outlets

No. and types

 2  SOCKETS

4 SOCKETS

3 SOCKETS and 1 terminal

Function

Cold start

DC Power on

Automatic Charge

Automatic Charge when UPS is off

Automatic Restart

Automatic Restart if main power coming after battery mode shutdown

Frequency

50HZ/60HZ Auto Adjustable

Protection

AC input or output above or below the range of voltage Overload ,overtemperature and short circuit protection

Environment

Temperature

 -5 to 45 Degree

Noise level

≤55dB

Humidity

20% to 90%

Physical

Weight (KGs)

11.5

5.5

10

10

11

11

Shipping Wt.

12.5

12.5

24.5

12.5

13.5

13.5

Net dimensions (W*H*D mm)

432*88*300

432*88*430
