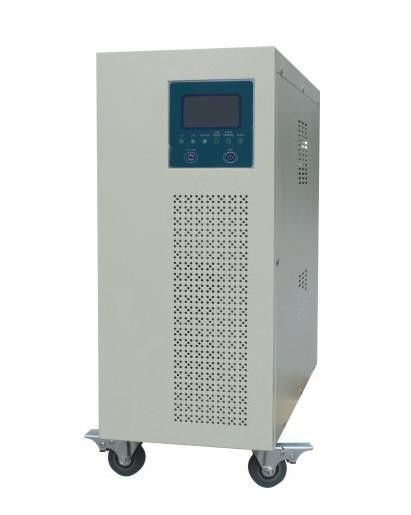

6kw-10kw solar inverters for off grid solar power system
Specifications
Model |
XC6K-OSI |
XC7K-OSI |
XC8K-OSI |
Power |
6000W |
7000W |
8000W |
Input voltage |
48V or 96V |
||
Input voltage range |
(48V low -high voltage) 39V-60V |
(96V low -high voltage) 78V-120V |
|
Converse time |
≤ 4ms Automatic transfer automatic transfer |
||
Converse rate |
87-90% |
||
Inverter frequency |
50-60Hz |
||
Output voltage |
4 steps AVR, 110 or 220v |
||
Output wave form |
Pure sine wave |
||
Charging currency |
15-25A |
||
Weight |
41KG |
55KG |
59KG |
Dimension(W*H*D) |
473*220*386mm |
473*230*421mm |
473*230*421mm |
Protection |
Protection against output short-circuit, overload, high/low voltage, reverse polarity, etc can be taken as charging function |
||
Power supply sequence |
Electric supply(AC) prior or Battery prior (Optional)
If electric supply prior, namely use electric supply firstly, when there is electric supply, use the power in battery while there is no electric supply. If battery prior, namely use battery power firstly, after exhausting the power in battery, use electric supply, meanwhile can charge the battery from the electric supply. |
