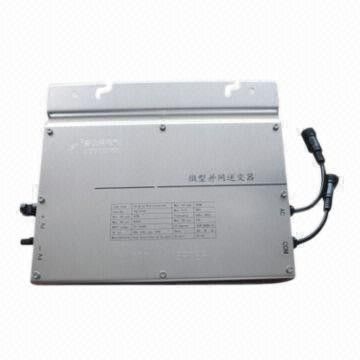

On-grid micro inverter, 250W power

On-grid micro inverter, 250W power
On-grid micro inverter, 250W power

Large Image :  On-grid micro inverter, 250W power

Product Details:
Place of Origin: china
Model Number: RHC-SBT-250HF
Main Export Markets: Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasia
Sample Price: Depending on the products
Category: Inverters & Converters
Payment & Shipping Terms:
Delivery Time: within 3 working days(depends on your quantity)
Payment Terms: L/C,T/T,Paypal
Detailed Product Description

Key Specifications/Special Features:

  • Features:
    • High frequency transformer isolation, ultimately avoids danger for operator and PV panels
    • Small volume and lightweight
    • Direct MPPT to each panel, ultimately maximize harvest
    • High reliability with full protective functions
    • Aluminum house with IP65 (NEMA6) protection class for outdoor installations
    • Waterproof direct plug-in terminals
    • Certifications: CE, CQC, IEEE 1547, UL1741 and ETL
  • Specifications:
    • Input:
      • Maximum DC input power: 270W
      • Night-time power consumption: 0W
      • Maximum array open-circuit voltage: 60V DC
      • Starting voltage: 30V DC
      • MPPT voltage range: 20 to 50V DC
      • Maximum input current: 10A
      • MPP tracker: 1
      • System efficiency:
        • Maximum efficiency: 94.8% with HF transformer isolation
        • Euro efficiency: 93.5% with HF transformer isolation
        • MPPT efficiency: 0.995%
    • Output:
      • Maximum AC power output: 250W
      • AC output voltage (nominal): 110, 204, 230 or 240V AC (local standard)
      • AC output voltage range: 180 to 260V
      • Maximum utility back feed current: 0A
      • AC frequency (nominal): 50 or 60Hz
      • AC frequency range: 49.5 to 50.5 or 59.5 to 60.5Hz
      • Maximum continuous output current: 1.5A
      • AC connection: single phase
      • Total harmonic distortion (THD): ≤3%
      • DC injection: ≤0.2%
      • Output current waveform: true sine wave
  • Packing:
    • Inverter size: (H) 252 x (W) 284 x (D) 45mm
    • Shipping size: (H) 286 x (W) 385 x (H) 70mm
    • Inverter weight: 2kg
    • Shipping weight: 3kg
  • Loading quantity:
Primary Competitive Advantages:
  • Country of Origin
  • Experienced Staff
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Packaging
  • Quality Approvals
  • Service
  • Small Orders Accepted
