On-grid micro inverter, 300W

On-grid micro inverter, 300W
On-grid micro inverter, 300W

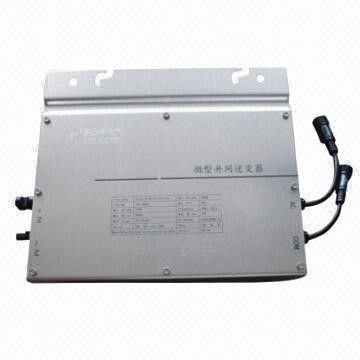

Large Image :  On-grid micro inverter, 300W

Product Details:
Place of Origin: china
Model Number: RHC-SBT-360HF
Main Export Markets: Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasia
Sample Price: Depending on the price changes of raw material
Category: Inverters & Converters
Payment & Shipping Terms:
Delivery Time: within 4 working days(depends on your quantity)
Payment Terms: L/C,T/T,Paypal
Detailed Product Description

Key Specifications/Special Features:

  • Electrical specifications:
    • Output:
      • Maximum AC power output: 300W
      • AC output voltage (nominal): 110/204/230/240V AC (local standard)
      • AC output voltage range: 180 to 260V
      • AC frequency (nominal): 50/60Hz
      • AC frequency range: 49.5 to 50.5 or 59.5 to 60.5Hz
      • Maximum continuous output current: 1.5A
      • AC connection: single-phase
      • Maximum utility backfeed current: 0A
      • Total harmonic distortion (THD): ≤3%
      • DC injection: ≤0.2%
      • Output current waveform: true sine wave
    • Input:
      • Maximum DC input power: 320W
      • Maximum array open-circuit voltage: 60V DC
      • Starting voltage: 31V DC
      • MPPT voltage range: 20 to 50V DC
      • MPP tracker: 1
      • Maximum input current: 10A
      • Night time power consumption: 0W
  • Mechanical specifications:
    • Operating temperature range: -13 to 134°F (-25 to 50°C)
    • Relative humidity: 0 to 95% (non-condensing)
    • Maximum working altitude: ≥2500m
    • Enclosure type: IP65
    • Cooling: natural convection
    • Mounting: on back of panel
    • Display: N/A
    • Communications integrated: RS232/RS485
  • CE, CQC and ETL approved
  • Warranty: 5 years (standard)
  • Packing:
    • Inverter dimensions: 252x284x45mm
    • Shipping dimensions: 286x385x70mm
    • Inverter weight: 2kg
    • Shipping weight: 3kg
  • Loading quantity:
