Product Details:
Payment & Shipping Terms:
|
| Nominal Voltage: | 100/110/120/127VAC Or 200/208/220/230/240VAC | Nominal Frequency: | 50/60 Hz |
|---|---|---|---|
| Input Voltage Range: | 60-138VAC Or 115-276VAC | Frequency Range: | 50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
| Power Factor: | 0.9 | Frequency Precision: | 50Hz/60Hz±0.05Hz |
| Harmonic Distortion: | Linear Load＜3% Non-Linear Load＜5% | Temperature: | 0～40℃ |
| Relative Humidity: | 0～95% Non-condensing | ||
| High Light: | Single Phase UPS,uninterruptible power supply |
||

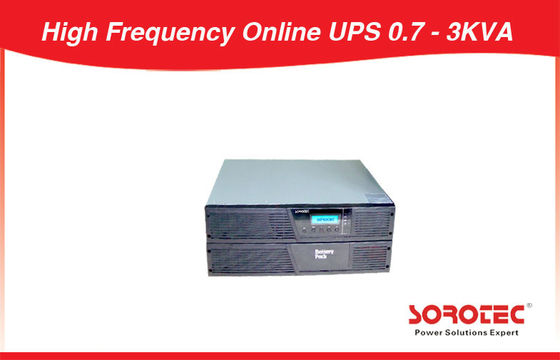

3kVA Rack Mountable Online UPS 110V / 220V AC 0.9 Power Factor
Key Features:
1.Protects against downtime, data loss and process interruption by providing continuous, clean power
2.Offers premium performance with a 0.9 power factor and >95% efficiency
3.Increases battery service life and system uptime with ABM battery charging technology
4.Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems or processes thanks to a capability to control load segments.
5.Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space
6.Can replace batteries online, convenient for user to use
7.Enhanced monitoring and configuration capability through easily navigated multilingual graphical display.
Application:
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing
Technical Specifications of Online UPS HP9117C 1-3KVA:
Model |
HP9117C 0.7-3KVA | ||||||||||||||||
| 1KT/1KR | 1KT-XL/1KR-XL | 2KT/2KR | 2KT-XL/2KR-XL | 3KT/3KR | 3KT-XL/3KR-XL | ||||||||||||
| Capacity | 1KVA/900 W | 2KVA/1800 W | 3KVA/2700 W | ||||||||||||||
| Nominal Voltage | 100/110/120/127VAC or 200/208/220/230/240VAC | ||||||||||||||||
| Nominal Frequency | 50/60 Hz | ||||||||||||||||
| Input | |||||||||||||||||
| Voltage Range | 60-138VAC or 115-276VAC | ||||||||||||||||
| Frequency Range | 50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) | ||||||||||||||||
| Power Factor | ＞0.98 | ||||||||||||||||
| Output | |||||||||||||||||
| Voltage precision | 100/110/120/127VAC(±2%) or 200/208/220/230/240VAC (±2%) | ||||||||||||||||
| Frequency precision | 50Hz/60Hz±0.05Hz | ||||||||||||||||
| Power Factor | 0.9 | ||||||||||||||||
| Harmonic Distortion | Linear Load＜3% Non-Linear Load＜5% | ||||||||||||||||
| Overload capacity | overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after normal load | ||||||||||||||||
| Current Crest Ratio | 3∶1 | ||||||||||||||||
| Transfer time | 0ms(AC→DC) | ||||||||||||||||
| Battery | |||||||||||||||||
| DC voltage | 36VDC | 96VDC | 96VDC | ||||||||||||||
| Recharge time | 7 hours to 90% | ||||||||||||||||
| Charge Current | 1A | 4A/8A(option) | 1A | 4A/8A(option) | 1A | 4A/8A(option) | |||||||||||
| Panel Display | |||||||||||||||||
| LCD | UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records | ||||||||||||||||
| Language | English, French, German, Russian, Spanish | ||||||||||||||||
| Communicate | |||||||||||||||||
| Communicate interface | Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port) | ||||||||||||||||
| Working Environment | |||||||||||||||||
| Temperature | 0～40℃ | ||||||||||||||||
| Relative humidity | 0～95% non-condensing | ||||||||||||||||
| Storage Temperature | -25℃～55℃ | ||||||||||||||||
| Elevation | ＜1500 meter | ||||||||||||||||
| Noise Level( 1meter) | ＜45dB | ＜45dB | ＜50dB | ||||||||||||||
| Physics Characteristic | |||||||||||||||||
| Net weigh(Kg) | 15 | 16 | 8.5 | 9 | 33 | 10.5 | 16.5 | 11.5 | 34 | 11.5 | 17 | 12.5 | |||||
| Gross weight (Kg) | 17.5 | 17.5 | 11 | 11.5 | 35 | 12.5 | 18.5 | 13.5 | 36 | 13.5 | 19 | 14.5 | |||||
| Dimension (WXDXH) | |||||||||||||||||
| Main unit(Tower) | 200X400X145 | 340X460X192 | 340X460X192 | ||||||||||||||
| Main unit (Rack mount) | 438X415X80 | 455 X440 X90 | |||||||||||||||
| APPLICATION OF OUR PRODUCT |
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
| COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
| WHY CHOOSE US ? |
1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
| FAQ |
1. How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................
2. How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
.......................................................................................................................................................................
3. How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
.......................................................................................................................................................................
4. How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
