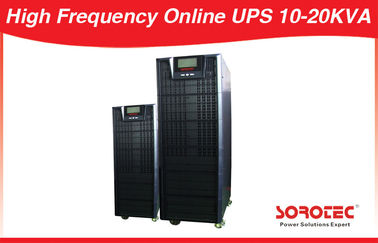

3 Phase High Frequency Online UPS , high frequency power supply
Key Features:
■ True double-conversion
■ DSP technology guarantees high performance
■ Output power factor 0.8
■ Wide input voltage range (110-300 VAC)
■ Active power factor correction in all phases
■ 50Hz/60Hz frequency converter mode
■ ECO mode operation for energy saving
■ Accepts dual-mains inputs
■ Emergency power off function (EPO)
■ Generator compatible
■ SNMP+USB+RS-232 multiple communications
■ 3-stage extendable charging design for optimized battery performance
■ Adjustable battery numbers
■ Maintenance bypass available
■ Optional N+X parallel redundancy
■ Optional isolation transformer offers full isolation and complete common mode noise rejection
Technical Specifications of Online UPS HP9335C Series:
|
MODEL |
HP9335C 10-20KVA |
||||||
|
10K |
10K-XL |
15K |
15K-XL |
20K |
20K-XL |
||
|
PHASE |
3-phase in / 3-phase out |
||||||
|
CAPACITY |
10000 VA / 8000 W |
15000 VA / 12000 W |
20000 VA / 16000 W |
||||
|
INPUT |
|||||||
|
NominalVoltage |
3 x 400 VAC (3Ph+N) |
||||||
|
InputVoltageRange |
305-478 VAC (3-phase) at 100% load ; 190-520 VAC (3-phase) at50% load |
||||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||||
| Power Factor | ≧ 0.99 @ 100% Load | ||||||
|
OUTPUT |
|||||||
|
Output Voltage |
3 x 400V (3Ph+N) |
||||||
|
AC Voltage Regulation (Batt. Mode) |
± 1% |
||||||
|
Frequency Range(SynchronizedRange) |
46~54Hz or 56~64Hz |
||||||
|
46~54Hz or 56~64Hz |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
||||||
|
Harmonic Distortion |
≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) |
||||||
|
Transfer |
AC Mode to Batt. Mode |
Zero |
|||||
| Inverter to Bypass | Zero | ||||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||||
| EFFICIENCY | |||||||
| AC Mode | 89% | 89% | 89% | ||||
| Battery Mode | 86% | 88% | 87% | ||||
| BATTERY | |||||||
| Standard Model |
Battery Type | 12 V / 9 Ah | |||||
| Numbers | 20 pcs (18 - 20 adjustable) | 20 pcs x 2 strings (18 - 20 adjustable) | |||||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||||
| Charging Current (max.) | 1A | 2A | 2A | ||||
| Charging Voltage | 273 VDC ± 1% | ||||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||||
| Numbers | |||||||
| Charging Current (max.) | 4A | 4A | 4A | ||||
| Charging Voltage | 273 VDC ± 1% | ||||||
| INDICATORS | |||||||
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer,and Fault | ||||||
| ALARM | |||||||
| Battery Mode | Sounding every 4 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continously sounding | ||||||
| PHYSICAL | |||||||
| Standard Model | Dimension,D x W xH(mm) | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | |||
| Net Weight (kgs) | 109 | 164 | 164 | ||||
| Long-run Model |
Dimension,D x W xH(mm) | 592 x 250 x 826 | 592 x 250 x 826 | 592 x 250 x 826 | |||
| Net Weight (kgs) | 38 | 40 | 40 | ||||
| ENVIRONMENT | |||||||
| Humidity | 0-95 % RH @ 0- 40°C (Non-condensing) | ||||||
| Noise Leve | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | |||||
| MANAGEMENT | |||||||
| Smart RS-232 / USB | Supports Windows22000/2003/XP/Vista/2008, Windows27/8, Linux, Unix, and MAC | ||||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||||
