Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 12V | Maximum Current: | 50A |
|---|---|---|---|
| Rated Working Voltage: | 12V/24V | Charging Mode: | PWM Mode |
| Operating Temperature: | -10~60 Degree | ||
| High Light: | solar charge controller,maximum power point tracking charge controller |
||

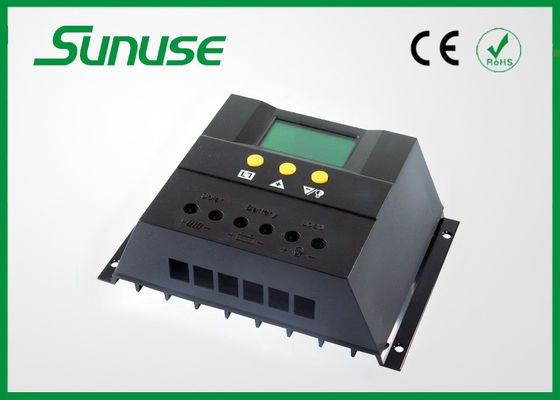

50a PWM Solar Panel Charge Controller Regulator with LCD Display 12V / 24V / 48V
Quick Detail:
50a PWM solar panel charge controller
1, Three working mode
2, PWM charging mode
3, multi-protection fuction
4, LCD display(charging and discharging progress display and fault indication)
5, Temperature compensation
6, Technical data adjustable
Specification:
| Model | PWM5024Z |
| Rated current | 40A,50A |
| Rated voltage | 12V/24V |
| Maximum voltage of solar panel | ≤50V |
| Float voltage | 13.7V/27.4V |
| Low Voltage Disconnection | 10.7V/21.4V |
| Low Voltage Reconnection | 12.6V/25.2V |
| No load loss | <30mA |
| Loop voltage drop | ≤200mV |
| Charging mode | PWM Mode |
| Temperature compensation | -4mV/Cell/℃ |
| Installation cable area | >3# AWG (<25mm2) |
| Operating temperature | -20℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Humidity Requirement | ≤90%, No Condensation |
| Size | 130mm×188mm×62mm |
| Mounting hole spacing | 98 mm×178 mm --Φ5 |
| Weight | 590g |
| Notes | Model suffix“Z” represent automatic identify system voltage level,“T”represent controller with remote monitoring. |
Solar charge controller forms an essential component of virtually all solar power systems that utilize batteries. The charge controller is used to regulate the current flowing from the solar panels to the batteries. These solar controllers prevent the battery from the damages caused by overcharge and disconnect the battery in case of severe discharge by shutting of loads. Easy Photovoltech's solar charge controllers are specially designed to improve the battery performance and increase the life.
Features:
1. Image of LCD graphic symbol
2. Simple button operation
3. Automatic Identification System Voltage level
4. Intelligent PWM charge mode
5. Automatic Temperature Compensation
6. Adjustable charge-discharge control parameters
7. Settable Operating mode of Load hours
8. Accumulated function of charge and discharge Ampere
9. Remote monitoring and control function (custom)
10. Battery reverse-discharge protection
11. Battery reverse-discharge protection
12. Battery reverse connection protection
13. Overload, Short Circuit Protection
You can View and Set the Parameters:
1.Battery Voltage
2.The load on/off control
3.Environment Temperature
4.Solar Panel charging current
5.Load discharging current
6.Accumulated charging power (Ah) by solar panel and back to zero
7.Accumulated discharging power (Ah) by Load and back to zero
8.Low Voltage Disconnection Protection
9.Low Voltage Reconnection
10.High Voltage Disconnection
Three Load Working Mode:
24H—Normal Mode, in case of no fault state of the load is always in power.
1H~23H—Light Control with Time Control Mode, Load power after dark, and close the load according to the timer setting.
0H—Light Control Mode, Load on after dark, turn off the load after drawn.
