best 60 amp PWM solar charge controller circuit diagram 12v / 24v / 48v for sale
Quick Detail:

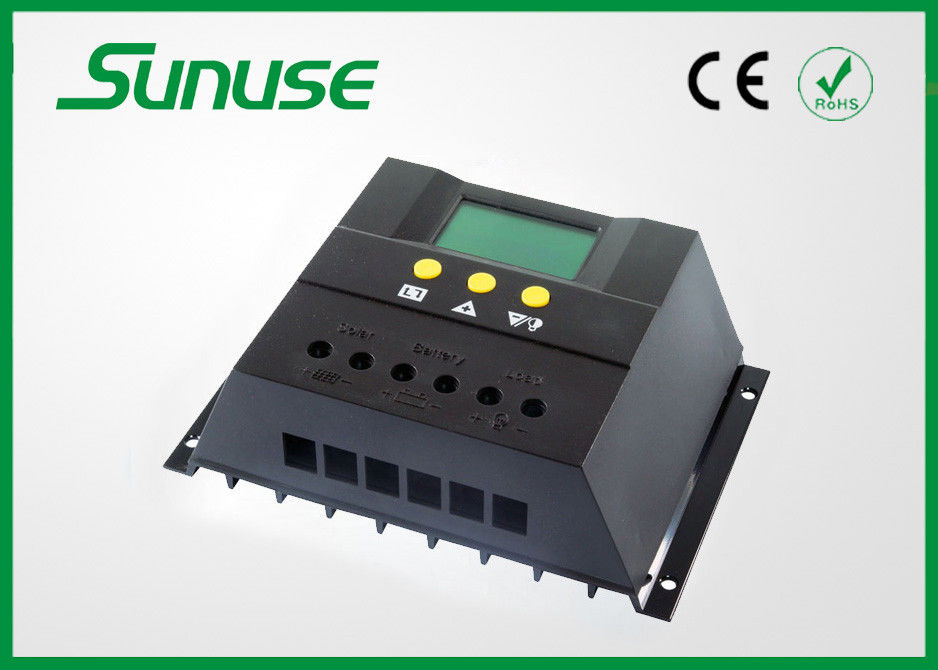

60A PWM solar panel charge controller circuit
1, Three working mode
2, PWM charging mode
3, multi-protection fuction
4, LCD display(charging and discharging progress display and fault indication)
5, Temperature compensation
6. Adjustable controlling parameter of the system
Specification:
| Model | PWM6048 |
| Rated current | 60A |
| Rated voltage | 48V |
| Maximum voltage of solar panel | ≤100V |
| Float voltage | 54.8V |
| Low Voltage Disconnection | 42.8V |
| Low Voltage Reconnection | 50.4V |
| No load loss | <30mA |
| Loop voltage drop | ≤200mV |
| Charging mode | PWM Mode |
| Temperature compensation | -4mV/Cell/℃ |
| Installation cable area | >3# AWG (<25mm2) |
| Operating temperature | -20℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Humidity Requirement | ≤90%, No Condensation |
| Size | 130mm×188mm×65mm |
| Mounting hole spacing | 98 mm×178 mm --Φ5 |
| Weight | 590g |
| Notes | Model suffix“Z” represent automatic identify system voltage level,“T”represent controller with remote monitoring. |
PWM Technology:
Solar Charger Controller is a system with advanced MOSFET based PWM Technology. The term “charge controller” refers either to a stand-alone device or a control circuitry integrated one within a battery pack, battery-powered solar device or a battery recharger.
The controller is for off-grid solar systems. This protects the battery from getting over charged using the solar module and over discharged by the loads. The charging process has been optimized for long battery life and improved system performance.
The comprehensive self-diagnostics and electronic protection functions prevent damage from installation mistakes or system faults.
Key Features :
You can View and Set the Parameters:
1.Battery Voltage
2.The load on/off control
3.Environment Temperature
4.Solar Panel charging current
5.Load discharging current
6.Accumulated charging power (Ah) by solar panel and back to zero
7.Accumulated discharging power (Ah) by Load and back to zero
8.Low Voltage Disconnection Protection
9.Low Voltage Reconnection
10.High Voltage Disconnection
Three Load Working Mode:
24H—Normal Mode, in case of no fault state of the load is always in power.
1H~23H—Light Control with Time Control Mode, Load power after dark, and close the load according to the timer setting.
0H—Light Control Mode, Load on after dark, turn off the load after drawn.
