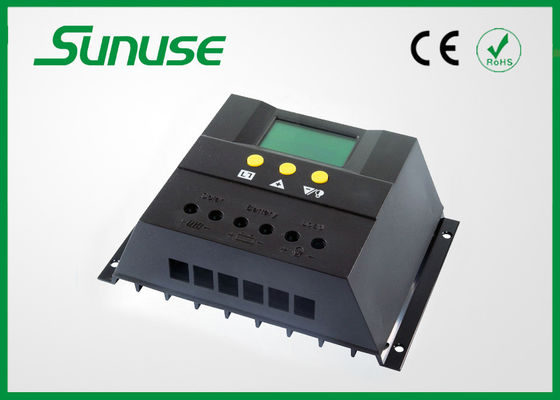

smart 12v 24v 50 amp auto Solar Panel Charge Controller for solar energy system

smart solar charge controller 12v 24v 50 amp auto recognition for solar energy system

Quick Detail:

50a pwm solar panel charge controller

1, Three working mode

2, PWM charging mode

3, multi-protection fuction

4, LCD display(charging and discharging progress display and fault indication)

5, Temperature compensation

6, Technical data adjustable

Specification:

Solar charge controller forms an essential component of virtually all solar power systems that utilize batteries. The charge controller is used to regulate the current flowing from the solar panels to the batteries. These solar controllers prevent the battery from the damages caused by overcharge and disconnect the battery in case of severe discharge by shutting of loads. Easy Photovoltech's solar charge controllers are specially designed to improve the battery performance and increase the life.

Features:

• Excellent EMC design
• Nominal system voltage automatic recognition
• High efficient Series PWM charging, increases battery life and improves the solar system performance
• Use MOSFET as an electronic switch, without any mechanical switch
• Widely used, automatically recognizes day/night

• Graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu display and operation
• Humanized design of browser interface, for convenience of operation
• Full control parameters setting and modification, diversified load control mode
• Gel, Sealed and Flooded battery type options
• Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically and improve battery life
• Electronic protection from overheating, overcharging, over discharging, over load, and short circuit.
• Reverse protection: any combination of solar module and battery

You can View and Set the Parameters:

1.Battery Voltage

2.The load on/off control

3.Environment Temperature

4.Solar Panel charging current

5.Load discharging current

6.Accumulated charging power (Ah) by solar panel and back to zero

7.Accumulated discharging power (Ah) by Load and back to zero

8.Low Voltage Disconnection Protection

9.Low Voltage Reconnection

10.High Voltage Disconnection

Three Load Working Mode:

24H—Normal Mode, in case of no fault state of the load is always in power.

1H~23H—Light Control with Time Control Mode, Load power after dark, and close the load according to the timer setting.

0H—Light Control Mode, Load on after dark, turn off the load after drawn.

PWM Technology:

Solar Charger Controller is a system with advanced MOSFET based PWM Technology. The term “charge controller” refers either to a stand-alone device or a control circuitry integrated one within a battery pack, battery-powered solar device or a battery recharger.

The controller is for off-grid solar systems. This protects the battery from getting over charged using the solar module and over discharged by the loads. The charging process has been optimized for long battery life and improved system performance.

The comprehensive self-diagnostics and electronic protection functions prevent damage from installation mistakes or system faults.
