Pure Sine Wave Out 24v Ac To Dc Ups Power Inverter With Rj11 Communication

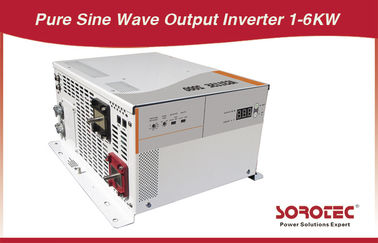

Large Image : Pure Sine Wave Out 24v Ac To Dc Ups Power Inverter With Rj11 Communication

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	IG3115E Series 1 - 6KW

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Input Voltage Waveform:	Sinusoidal (utility Or Generator)	Nominal Input Voltage:	230Vac
Low Line Disconnect:	184Vac±4%	High Line Disconnect:	253Vac±4%
Max AC Input Voltage:	270Vrms	Nominal Input Frequency:	50Hz/ 60Hz (Auto Detection)
Efficiency (Line Mode):	>95%	Transfer Switch Rating:	30A
Transfer Time (Ac To Dc):	20ms (typical)
High Light:	solar powered inverter , rack tower ups

24v Ac to Dc Solar Power Inverters with Rj11 Communication

Key Features:
1.Rack Tower design

2.Automatically charging

3.Auto change AC-DC

4.Automatically restart

5.Pure Sine wave Output

6.The charging current is big up to 70 A

7.Output Power Factor is 0.9-1

8.LED display, audible and visual alarm

Applications:

Supply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)

Technical Specification of Pure Sine Wave Inverter IG3115 Series:

MODEL	Pure Sine wave Out UPS Inverter
	IG3115E 1000-12		IG3115E 1000-24		IG3115E 2000-12		IG3115E 2000-24	IG3115E 3000-12		IG3115E 3000-24
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Line Disconnect	184Vac±4%
High Line Disconnect	253Vac±4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Over-Load Protection (SMPS load)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	20ms (typical)
Output Voltage Waveform	Pure Sine wave
Rated Output Power (W)	1000W	1000W		2000W		2000W		3000W	3000W
Power Factor	0~1.0
Nominal Output Voltage (V)	230Vac
Output Voltage Regulation	±10% rms
Nominal Efficiency	>80%
Nominal DC Input Voltage	12V	24V		12V		24V		12V	24V
Nominal Charge Current	70A	35A		70A		35A		70A	35A
Charge Current Regulation	± 5Adc
Battery initial voltage	0-15.7 Vdc (can operate with 0V battery)
Communication:	RJ11 (Used for factory testing. No customer interface available)
Safety Certification	Compliance with UL458							CE(EN60950)
EMI Classification	FCC, CLASS A							EN50091-2, CLASS A
Operating Temperature Range	0°C to 40°C
Storage temperature	-15ºC 60ºC
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Size	381mm217mm179mm
