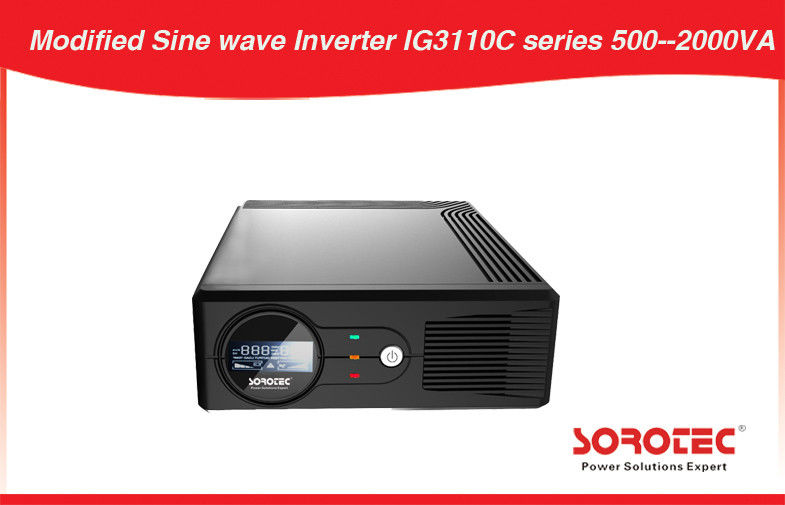

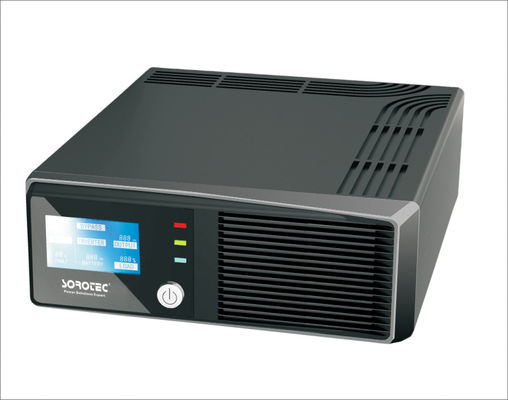

10Amp 12V UPS Power Inverter LCD fault with silent operation for DVD

10Amp 12V UPS Power Inverter LCD fault  with silent operation for DVD
10Amp 12V UPS Power Inverter LCD fault  with silent operation for DVD 10Amp 12V UPS Power Inverter LCD fault  with silent operation for DVD

Large Image :  10Amp 12V UPS Power Inverter LCD fault with silent operation for DVD

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: IG3110C 500-2000VA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Nominal Voltage: 220/230/240VAC Nominal Frequency: 50/60Hz
Input Voltage Range: 176VAC-280VAC(±3VAC) Input Frequency Range: 50/60Hz
Frequency Regulation: 50/60Hz+0.1Hz Output Voltage Regulation: 220/230/240VAC±2%
Wave Form: Modified Sine Wave Switch Time: Standard 2~4ms Typical 6ms
High Light:

solar powered inverter

,

power inverter solar



10Amp 12V UPS Power Inverter LCD fault with silent operation for DVD





Key Features:
●LCD Display details


●Full automatic and silent operation


●Rack Tower design


●Automatically charging


●Built-in with 10Amp charger for up to 100Ah battery


●Auto change AC-DC


●Over-load protection


●Automatically restart


●Two-steps intelligent charging control to recharging time


●LED display, audible and visual alarm






Build-in with big charger :
IG3110E series long back up UPS Built-in with 10Amp charger for up to 100Ah battery





Full protection:
Protection for low battery voltage, over load, output short circuit and over- temperature
Restrain surge interference, eliminate noise, protection for Thunder striking, provide the reliable power




Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)


Back Panel Description of LCD UPS Inverter IG3110C 500-2000VA:
10Amp 12V UPS Power Inverter LCD fault  with silent operation for DVD 0



Technical Specifications of LCD UPS inverter IG3110C 500-2000VA


Model

  IG3110C 500-2000VA

500-12

1000-12

2000-24

1000-24

Capacity

500VA/300W

1000VA/600W

2000VA/1200W

1000VA/600W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60Hz

Input

Voltage Range

176VAC-280VAC(±3VAC)

Frequency Range

50/60Hz

Output

Voltage Regulation

220/230/240VAC±2%

Frequency Regulation

50/60Hz+0.1Hz

Wave Form

Modified sine wave

Switch time

Standard 2~4ms   Typical 6ms

Current

Charge Current

10A

10A

10A

6A

DC Voltage

12V

12V

24V

24V

Overcharge Protection

15V

15V

30V

30V

Display

LCD

UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc

Operating Environment

Temperature

0℃~40℃

Humidity

5%~95%(<40℃, no condensation)

Storage Temperature

-25℃~55℃

Elevation Noise      (within 1 metre)

Less than 1500 meter
<45dB

Physical

Weight(KG)

Net weight

2.0

2.5

2.5

2.0

Gross weight

2.2

2.7

2.7

2.2

Dimension:WXDXH mm

224×225×80

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice
