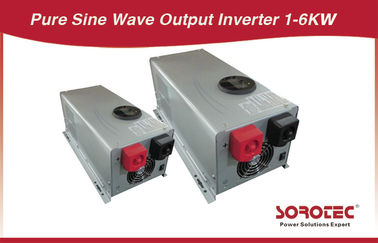

1000W 2000W 3000W Pure Sine Wave UPS Power Inverter IG3115E with Visual Alarm

1000W 2000W 3000W Pure Sine Wave UPS Power Inverter IG3115E with Visual Alarm
1000W 2000W 3000W Pure Sine Wave UPS Power Inverter IG3115E with Visual Alarm

Large Image :  1000W 2000W 3000W Pure Sine Wave UPS Power Inverter IG3115E with Visual Alarm

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: IG3115E 1-6KW
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Nominal Input Voltage: 230Vac Low Line Disconnect: 184Vac±4%
High Line Disconnect: 253Vac±4% Max AC Input Voltage: 270Vrms
Nominal Input Frequency: 50Hz/ 60Hz (Auto Detection) Efficiency (Line Mode): >95%
Transfer Switch Rating: 30A Transfer Time (Ac To Dc): 20ms (typical)
Output Voltage Waveform: Pure Sine Wave
High Light:

solar powered inverter

,

rack tower ups



1000W UPS Solar Power Inverters , Solar Energy Inverter IG3115E:





Key Features:
1.Pure Sine wave Output


2.The charging current is big up to 70 A


3.Output Power Factor is 0.9-1


4.LED display, audible and visual alarm


5.Full automatic and silent operation


6.Rack Tower design


7.Automatically charging


8.Auto change AC-DC


9.Automatically restart


10.Two-steps intelligent charging control to recharging time




Back Panel of Pure Sine Wave UPS Inverter:

ApplicationsSupply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)






Technical Specification of Pure Sine Wave Inverter IG3115 Series:

MODEL

Pure Sine wave Out
UPS Inverter

IG3115E
1000-12

IG3115E
1000-24

IG3115E
2000-12

IG3115E
2000-24

IG3115E
3000-12

IG3115E
3000-24

Input Voltage Waveform

Sinusoidal
(utility or generator)

Nominal Input Voltage

230Vac

Low Line Disconnect

184Vac±4%

High Line Disconnect

253Vac±4%

Max AC Input
Voltage

270Vrms

Nominal Input
Frequency

50Hz/ 60Hz
(Auto detection)

Over-Load Protection

(SMPS load)

Circuit breaker

Output Short
Circuit Protection

Circuit breaker

Efficiency
(Line Mode)

>95%

Transfer
Switch Rating

30A

Transfer Time

(Ac to Dc)

20ms (typical)

Output Voltage
Waveform

Pure Sine wave

Rated Output
Power (W)

1000W

1000W

2000W

2000W

3000W

3000W

Power Factor

0~1.0

Nominal Output
Voltage (V)

230Vac

Output Voltage
Regulation

±10% rms

Nominal Efficiency

>80%

Nominal DC
Input Voltage

12V

24V

12V

24V

12V

24V

Nominal Charge
Current

70A

35A

70A

35A

70A

35A

Charge Current
Regulation

± 5Adc

Battery
initial voltage

0-15.7 Vdc (can operate with 0V battery)

Communication:

RJ11 (Used for factory testing. No customer interface available)

Safety Certification

Compliance with UL458

CE(EN60950)

EMI Classification

FCC,  CLASS A

EN50091-2,
CLASS A

Operating
Temperature Range

0°C to 40°C

Storage temperature

-15ºC   60ºC

Operation humidity

5% to 95%

Audible Noise

60dB max

Cooling

Forced air,  variable
speed fan

Size

381mm*217mm*179mm


APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip





WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
