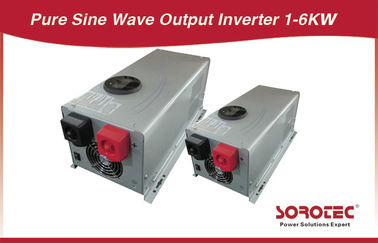

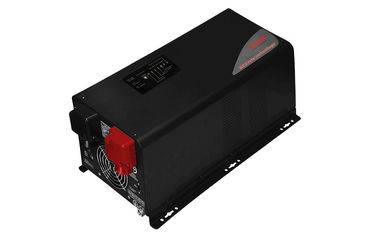

Pure Sine Wave Output UPS Power Inverter 1000W - 6000W FOR home

Pure Sine Wave Output UPS Power Inverter 1000W - 6000W FOR home
Pure Sine Wave Output UPS Power Inverter 1000W - 6000W FOR home

Large Image :  Pure Sine Wave Output UPS Power Inverter 1000W - 6000W FOR home

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: IG3115E 1 - 6KW
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Low Freq Trip: 47Hz For 50Hz,57Hz For 60Hz Nominal Voltage: 120Vac 230Vac
High Freq Trip: 55Hz For 50Hz,65Hz For 60Hz Low Voltage Re Trip: 90v ±4% & 184v/154v ±4%
Output Wave Form: (Bypass Mode)same As Input Low Voltage Re Engage: 100v ±4% & 194v/164v±4%
High Voltage Re Trip: 140v ±4% & 253v ±4% High Voltage Re Engage: 135v ±4% & 243v±4%
Max Input AC Voltage: 150VAC 270VAC Nominal Input Frequency: 50Hz/ 60Hz (auto Detection)
High Light:

solar powered inverter

,

power inverter solar



High Reliability Solar Power Inverters short circuit 1000W - 6000W :



Key Features:

1.Pure sine wave output



2.The charging current is big up to 75 Amp



3.Output power factor is 0.9-1



4.Well accept generator’s output



5.Full automatical and silent operation



6.Automatically transfer between battery and line modes



7.Microprocessor control guarantees high reliability



8.Remote control function



9.Four-steps intelligent charging control to recharging time



10.Bypass and bypass voltage regulation function





Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the
home appliances.







Applications:

Supply the reliable long back up time power for the home appliances
and office appliances Solar power systems etc.







Technical Parameters:

MODEL IG3115E 1000-6000W Pure Sine wave Output Inverter
1000W 1500W 2000W 3000W 4000W 5000W 6000W
Input Wave form Sine wave (utility or generator)
Nominal Voltage 120Vac 230Vac
Low voltage re trip 90v ±4% & 184v/154v ±4%
Low voltage re engage 100v ±4% & 194v/164v±4%
High voltage re trip 140v ±4% & 253v ±4%
High voltage re engage 135v ±4% & 243v±4%
Max Input AC Voltage 150VAC 270VAC
Nominal Input Frequency 50Hz/ 60Hz (auto detection)
Low freq trip 47Hz for 50Hz,57Hz for 60Hz
High freq trip 55Hz for 50Hz,65Hz for 60Hz
Output Wave form (Bypass mode)same as input
Over-Load Protection Circuit breaker
Short circuit Protection Circuit breaker
Transfer Switch Rating 30Amp or 40Amp
Efficiency on line transfer model ≥95%+
Line transfer time 10ms Typical
Bypass without battery connected Yes
Max bypass current 30 amp or 40 amp
Bypass over load current 30 amp or 45 amp:Alarm
Inverter specification/output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000
Output continuos power VA 1000 1500 2000 3000 4000 5000 600
Power factor 0.9-1.0
Nominal Output Voltage rms 120/230VAC
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification >88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000
Short circuit protection Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage 12V 24V 48V
Minimum start voltage 10V 20V 40V
Low battery alarm 10.5V 21V 42V
Low battery trip 10V 20V 40V
High voltage alarm 16V 32V 64V
Power saver Below 25 watts when enabled
Power saver Same switched on/off on remote
Charger mode specification 95-127VAC   194-243VAC/164-243VAC(W)
Input voltage range Dependent on battery type
Output voltage 35A/70A MAX
Charge current 0-15.7v for 12v(*2 for 24v;*4 for 48v)
Battery initial voltage for start up 15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection shutdown
Charger curves(4stage constant curren)battery types
4 step digital controlled progressive charge
Battery type        Fast V                   Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A 14.0                                      13.7
A.G.M. 1 14.1                                      13.4
A.G.M. 2 14.6                                      13.7
Sealed lead acid 14.4                                      13.6
Gel euro 14.4                                      13.8
Open lead acid 14.8                                      13.3
Calcium 15.1                                      13.6
De-sulphation 15.5 for 4 hrs
Remote control/RS232/USB Yes. Optional
Size: in mm 3 1000/1500Model:362*218*179mm³
2000/3000Model:442*218*179mm³
4000/5000/6000Model:598*218*179mm³
Weight 1000 1500 2000 3000 4000 5000 6000
16KG 18KG 20KG 22KG 35KG 38KG 40KG






APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip





WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.






COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.


FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
