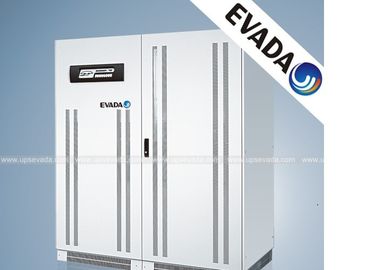

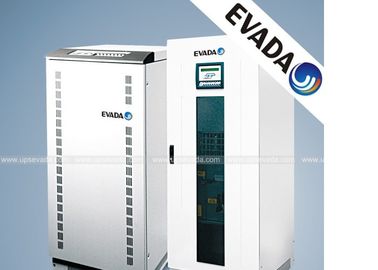

3 Phase High Frequency White ATM UPS 10KVA - 400KVA Three Input And Three Output
Quick details:
Description:
Online three input and three output power frequency UPS of HP series, whose unit capacity from 10KVA to 400KVA, is high performance sine wave uninterruptible power systems,which was designed for the key applications such as data processing center , the host system , manufacturing and telecommunications equipment, medical equipment. Its high availability and high reliability provide important protection for large key application systems. The series of UPS applied double conversion pure online IGBT technology and high-speed DSP digital processor and ensure the sine wave output of stable voltage and frequency.
Online three input and three output power frequency UPS of HP series applied advanced digital parallel controlled technology, can accommodate up to 8 machines running, and can provide clients options, such as harmonic suppression filters, isolation transformers and SNMP adapter and others.
Applications:
Highway lighting, billing, small and medium-scale network system room, billing centers, calling centers, business services groups, industrial process control applications, small and medium-scale office automation, computer equipments, precision equipments, medical equipments, etc.
Specifications:
|
model |
HP1000 |
HP1500 |
HP20 00 |
HP30 00 |
HP4000 |
HP60 00 |
HP8000 |
HP10000 |
HP12000 |
HP16000 |
HP20 000 |
||||
|
capability |
10KVA |
15KVA |
20KVA |
30KVA |
40KVA |
60KVA |
80 KVA |
100 KVA |
120 KVA |
160 KVA |
200 KVA |
||||
|
system |
|||||||||||||||
|
Power factor of input COSΦ: |
100～70% |
||||||||||||||
|
Overall efficiency |
92～94%(load 100%) |
||||||||||||||
|
Remote signal |
Three contact signals (low power, battery discharge,bypass/fault)； output12Vdc 80mA |
||||||||||||||
|
Remote control |
EPO and bypass |
||||||||||||||
|
Computer monitoring port |
RS232 |
||||||||||||||
|
Operating temperature |
0±40℃ |
||||||||||||||
|
Maximum relative humidity |
95%(Non-condensing) |
||||||||||||||
|
cooling |
Smart wind forced ventilation(Fan speed varies with load)) |
||||||||||||||
|
Safety standards |
Safety standards:GB4943; Electromagnetic compatibility: GB7260.2,GB/T 17626.2～5 |
||||||||||||||
|
Size W*D*H(mm) |
555×720×1200 |
800× 740×1400 |
1200× 740×1400 |
1420× 860×1600 |
|||||||||||
|
weight(without battery)Kg |
200 |
220 |
260 |
300 |
360 |
480 |
550 |
900 |
1020 |
1220 |
1550 |
||||
|
Rectified input (standard UPS) |
|||||||||||||||
|
Rated voltage |
380V 3 phase |
||||||||||||||
|
Voltage Range |
±20% |
||||||||||||||
|
rated frequency |
50/60Hz Automatically identify |
||||||||||||||
|
Frequency Range |
45～65 |
||||||||||||||
|
Maximum input power(A) |
18 |
28 |
37 |
55 |
72 |
103 |
130 |
175 |
220 |
280 |
350 |
||||
|
battery |
|||||||||||||||
|
Rated voltage |
384VDC |
432VDC |
480VDC |
||||||||||||
|
Charge current settings |
0.1A×C10 |
||||||||||||||
|
Inverter output |
|||||||||||||||
|
Inverter output(V) |
380(3 phase +N) |
||||||||||||||
|
Rated Current(A) |
14 |
22 |
29 |
43 |
58 |
87 |
115 |
148 |
186 |
235 |
296 |
||||
|
Phase voltage settings |
200～244V(Control Pane) |
||||||||||||||
|
Peak (Lpeak/Lrms) |
3:01 |
||||||||||||||
|
waveform |
Sine wave |
||||||||||||||
|
The distortion of Linear load voltage |
＜2% |
||||||||||||||
|
The distortion of nonlinear load voltage waveform |
＜5% |
||||||||||||||
|
Stability of steady-state voltage |
±1% |
||||||||||||||
|
Response of Transient voltage |
±5% in 10ms |
||||||||||||||
|
overload |
600’/10’/1’(110/125/150% rated current) |
||||||||||||||
|
Efficiency of inverter |
94%(load 100%) |
96%(load 100%) |
|||||||||||||
|
bypass |
|||||||||||||||
|
Rated voltage(V) |
380(3 phase +N) |
||||||||||||||
|
Range of input voltage |
±15%(can adjust from control pane ±10%,±25%) |
||||||||||||||
|
rated frequency(Hz) |
50/60 |
||||||||||||||
|
range of frequency |
±2%(can adjust from control pane ±5%) |
||||||||||||||
|
Conversion time of inverter/bypass |
＜1ms |
||||||||||||||
|
overload capability |
10’/1’/18”(150/175/200% rated current) |
||||||||||||||
|
model |
HP25000 |
HP30000 |
HP35000 |
HP40000 |
||||||
|
capability |
250 KVA |
300 KVA |
350 KVA |
400 KVA |
||||||
|
system |
||||||||||
|
Power factor of output COSΦ: |
100～70% |
|||||||||
|
Overall efficiency |
94%(load100%) |
|||||||||
|
Remote signal |
Three contact signals (low power, battery discharge, bypass/fault)；output12Vdc 80mA |
|||||||||
|
Remote control |
EPO and bypass |
|||||||||
|
Computer monitoring port |
RS232 |
|||||||||
|
Operating temperature |
0±40℃ |
|||||||||
|
Maximum relative humidity |
95%(Non-condensing) |
|||||||||
|
cooling |
Smart wind forced ventilation(Fan speed varies with load) |
|||||||||
|
Safety standards |
Safety standards:GB4943; Electromagnetic compatibility: GB7260.2,GB/T 17626.2～5 |
|||||||||
|
Size W*D*H(mm) |
1600*800*1800 |
2200*1000*2000 |
||||||||
|
weight(without battery)Kg |
1950 |
2250 |
2650 |
3150 |
||||||
|
Rectified input(Twelve - pulse rectifier) |
||||||||||
|
Rated voltage |
380V 3 phase |
|||||||||
|
Voltage Range |
±20% |
|||||||||
|
rated frequency |
50/60Hz Automatically identify |
|||||||||
|
range of frequency |
45～65 |
|||||||||
|
Maximum input power(A) |
450 |
540 |
630 |
720 |
||||||
|
battery |
||||||||||
|
Rated voltage |
480VDC |
576VDC |
||||||||
|
Charge current setting |
0.1A×C10 |
|||||||||
|
Inverter output |
||||||||||
|
rated voltage(V) |
380(3 phase +N) |
|||||||||
|
rated current(A) |
378 |
454 |
530 |
606 |
||||||
|
Phase voltage settings |
200～244V(Control Panel) |
|||||||||
|
peak (Lpeak/Lrms) |
3:1 |
|||||||||
|
waveform |
Sine wave |
|||||||||
|
The distortion of linear load voltage |
＜2% |
|||||||||
|
The distortion of nonlinear load voltage |
＜5% |
|||||||||
|
Stability of steady-state voltage |
±1% |
|||||||||
|
Response of Transient voltage |
±5% in 10ms |
|||||||||
|
overload |
600’/10’/1’(110/125/150% rated current) |
|||||||||
|
Efficiency of inverter |
95%(load 100%) |
96%(load 100%) |
||||||||
|
bypass |
||||||||||
|
Rated voltage(V) |
380(3 phase +N) |
|||||||||
|
Range of input voltage |
±15%( can adjust from control panel ±10%,±25%) |
|||||||||
|
Rated frequency(Hz) |
50/60 |
|||||||||
|
range of frequency |
±2%(can adjust from control panel ±5%) |
|||||||||
|
Conversion time of inverter/bypass |
＜1ms |
|||||||||
|
Overload capability |
10’/1’/18”(150/175/200% rated current ) |
|||||||||
Competitive advantages:
1. advanced 6th IGBT technology
2. Advanced battery management
3. Comprehensive and reliable protection measures against all type of power problems
4. Self test while start of the UPS
5. Advanced Current Control
6. Humanized information processing technology
7. Intelligent local and remote monitor capability with RS232 port
