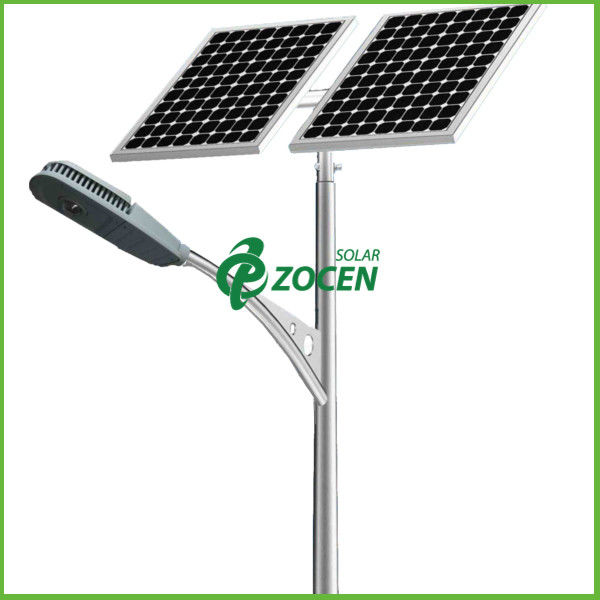

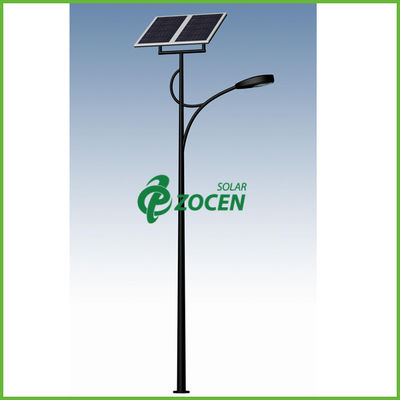

Cold White 2 pcs 36W Highway Solar Panel Street Lights with 10M Pole

Cold White 2 pcs 36W Highway Solar Panel Street Lights with 10M Pole

1> Quick Detail:

• Model Number: BRH-L2B
• Power Supply: Solar
• Application: Highway
• Lampshade Material: Toughened Glass
• Lighting Bulbs & Tube: LED
• Selling Points: 36W+36W LED with 11-12 Hrs/Night Lighting
• Certificates: CE,ROHS,FCC,ISO,SONCAP,IEC,CIQ
• Double Lamps 36W+36W Solar LED Street Light 10M Pole
• Height,CE,ROHS,FCC,ISO,SONCAP,IEC Certified Manufacturer,

2> Descriptions:

Zocen Solar has professional techniques and first-class sales team working for the whole world solar street lighting solutions, providing advanced designs according to scientific data of different cities of countries. We runs on passion and commitment for a cleaner energy future within the renewable energy sector.

Double Lamps 36W+36W LED Solar Street Light 10M Pole Height with SONCAP
Certified with 11-12 Hrs/Night*3-5 Overcast Day Design based on 5.0KWH solar radiation
Model: BRH-L2B, Lighting Effect Equal To 250W High Pressure Sodium Lamp,
1. Pole Height: 10M, Diameter: 80*190mm, Thickness: 4.0mm Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 36W LED, 4680LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 150W*2PCS,High efficiency,High Quality,
4. Gelled battery: 200Ah*2PCS, Fee Maintence, Deep Cycle, Sealed Type.
5. Battery Box: Engineering Steel,Hanging On Pole
6. Solar Controller: 15A/24V Automatic control by microcomputer

This model Solar Street Light, Design based on 5.0Kwh,
Getting more information for this Double source 36W+36W LED Solar Street Light, mail or call us please.

3> Components:

1 LED

2 SOLAR PANEL

Silicon Type……………………………..……………Poly

Size……………………..………….……………1480*670*35mm

Cells……………………..………………………..........………36

N Weight……………………………………..……………12.0KG

Vmp……………………………………………………………17.2V

Imp……………………..………………………………………..8.14A

Voc……………………..……………………………………….21.6V

Isc……………………..………………………….……….……8.69A
Efficiency: ……………………………..……..……………≥17.0%
FF(%)……………………..………………….…………….70-72%

Operating temperature………….….……….-40°C to +80°C

3 POLE

Bottom Diameter: 190mm
Pole thickness:4.0mm
Painting: Wanted colar
10M Height Pole, Steel, Q235
With Arm, Bracket, Flange, Fitting, Cable, etc
Resisitant to Wind: ≥150KM/H
Adjustable Angles

4 CONTROLLER

Intelligent Micro-computer Controller

Over-charging/discharging Protection Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after 11-12 Hrs later.

5 Other
