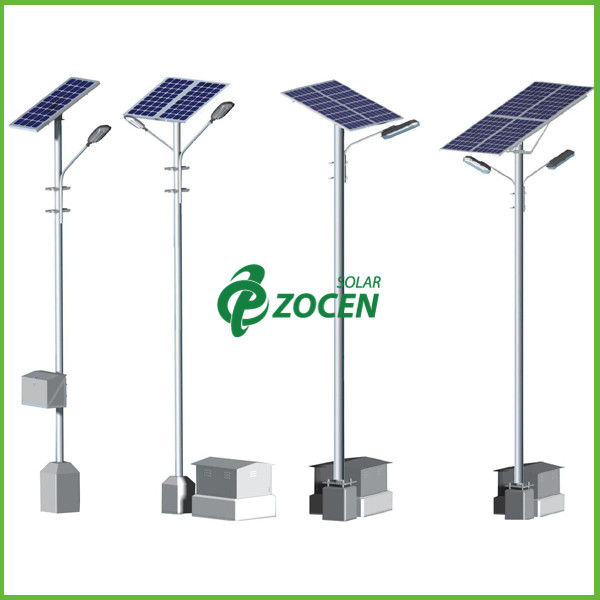

Ajustable IP65 70W Cold White High Solar Solar Panel Street Lights

Ajustable IP65 70W Cold White High Solar Solar Panel Street Lights

1> Quick Detail:

• Selling Points: 70W Solar powered road lights
• Model: ZCSSL-70
• 70W High Solar powered road lights
• Lighting Bulbs & Tube: Energy Saving
• LED lifespan: 80000Hrs
• IP Rate: IP65
• Bracket angle: Ajustable
• Pole Material: Q235
• Working temperature: -20℃ to+50℃
• System voltage: 12V/24V
• OEM: Available

2> Descriptions:

Zocen Solar has professional techniques and first-class sales team working for the whole world solar street lighting solutions, providing advanced designs according to scientific data of different cities of countries. We runs on passion and commitment for a cleaner energy future within the renewable energy sector.

Certified with 11-12 Hrs/Night*3-5 Overcast Day Design based on 5.5KWH solar radiation
Model: BR-6-8-10N1
1. Pole Height: Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: High Bright 120W/LM,Lifespan:>80000Hrs.
3. PV Module: Tempered Glass,High efficiency,High Quality,
4. Gelled battery:Fee Maintence, Deep Cycle, Sealed Type.
5. Battery Box: Engineering Steel,Hanging On Pole
6. Solar Controller:Automatic control by microcomputer

This model Solar Street Lights design will based on insolation of different countires, cities.

If your 're working on solar street lights project, pls provide the following information:

a. Pole height

b. Lighting time/Day:8-10Hrs/Day will be ok?or 11-12 Hrs/Night
c. Which city does the project belong to?This is Important for our design to calculate solar panel and battery.
d. Could you tell us your LED power walt? For Highway Road or Main Road or Small Road?

3> Components:

2 Battery

3 Solar Panels

Silicon Type……………………………..…………........…Poly

Size……………………..………….……………....780*360*35mm

Cells……………………..………………………..........………36

N Weight……………………………………..………..……3.5KG

Vmp……………………………………………………………17.2V

Imp……………………..……………………………………….2.04A

Voc……………………..……………………………………….21.6V

Isc……………………..………………………….……….……2.26A
Efficiency: ……………………………..……..……………≥17.0%
FF(%)……………………..………………….…………….70-72%

Operating temperature………….….…….......….-40°C to +80°C

4 Pole

Bottom Diameter: 190mm
Pole thickness:4.0mm
Painting: Wanted colar
10M Height Pole, Steel, Q235
With Arm, Bracket, Flange, Fitting, Cable, etc
Resisitant to Wind: ≥150KM/H
Adjustable Angles

5 Controller

Intelligent Micro-computer Controller

Over-charging/discharging Protection Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after 11-12 Hrs later.

6 Other
