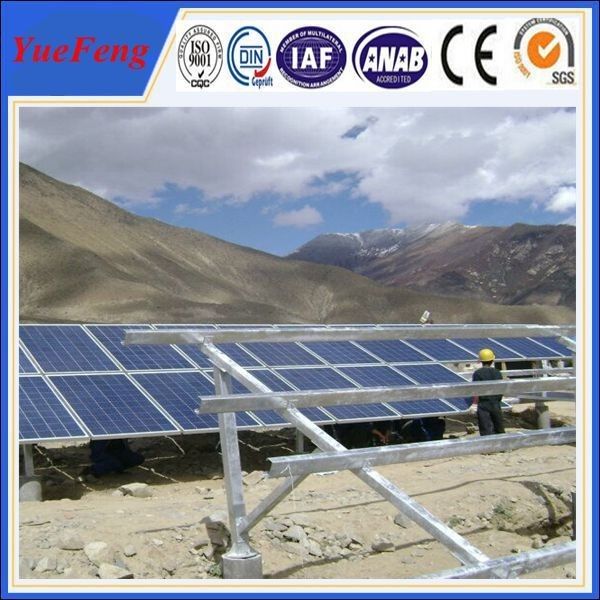

On Grid solar power system 30KW, Ground mounting solar system

1.Specification of aluminum pv solar rail mounting

2.Features of YUEFENG Solar rails

1).Easy Installation.

The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2).Great Flexbilitity.

The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3).High Accuracy.

Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4).Maximum Lifespan:

All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5).Guaranteed Durability:

Wanhos Solar provides a guarantee of 10 years on the durability of all components used.

Brief Installation Plan for corrugated tin roof solar mounting system

1,L-feet group installation
  1),Mark the installation position
  2),Bolt L-feet to the rafter

2,Rail installation
  1),Slide the G-module into the rail and fasten it in the right position
  2),Install the rail on the L-feet with G-module
3,Pv panel Installation

The Specification of PV Mounting Tin Roof Structure ,

Steel Ground Screw Anchor:

The Metal Ground Screw has been widely used in the conctruction of the Solar Power Plant from these years, for its

easily installation and the perfect perform in anti-corrosion & wear-proof. With such metal ground screws, installtion

could be realized in so many kinds of places, such as those not so even ground or the ground with slopes, which will

largely reduce the cost for the plant construction. YUEFENG metal Ground Screw has been focusing on customising any

length and other requirements of the customer.

Technical Information:

Reasons to choose YUEFENG mounting system ,

• Design conformable to different project requirements
• Fast and cost effective installation, easy to be assembled on different area.
• Short in 7-30 days leading time according to acrtual quantities
• Wisely solutions for your solar PV projects

Which Datas need provide when inquiry,

-----------

Dear Buyer,

In order to help you get the right system, please offer the following necessary info.,

1. The dimension of the solar panel: _________(L*W*T)

2. Tin roof photo or section: __________

3. The overall size of the PV array:____________

4. Wind load and snow load: ____________

5. The height of building:_______________

6. The order quantity for us to confirm delivery and shipping:______________

If you want to know about more information, please contact us or call me 0086 18662963676 (Urgent things), weblink:http://www.profiles-aluminum.com; aluminum-extrusion.sell.everychina.com.
