Industry Planetary Motor Gearbox Dynamic Load 30000Nm Heliostat Concentrate Reducer

Large Image : Industry Planetary Motor Gearbox Dynamic Load 30000Nm Heliostat Concentrate Reducer

Product Details:

Place of Origin:	Wenzhou City,Zhejiang,China
Brand Name:	HENGTAI
Certification:	CE,ISO9001:2008,ISO14001,GB28001
Model Number:	HDR series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	US $ 3000 - 90000 / Piece
Packaging Details:	1 PCS packed in ONE WOODEN CRATE
Delivery Time:	40 days
Payment Terms:	T/T or LC
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Backlash:	0.015 Degree	Model:	HDR30,470,600
Torque:	3000Nm	Mirror Volume:	30 Square Meters
Ratio:	30000	Weight:	180Kg
High Light:	planetary motor gearbox , planetary gear box

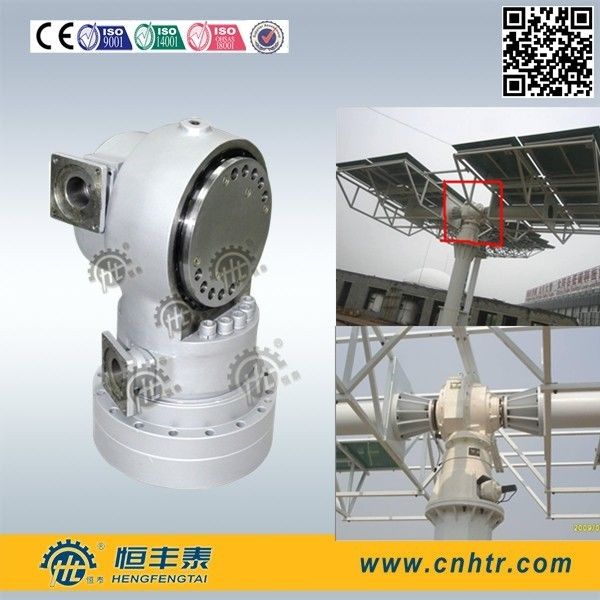

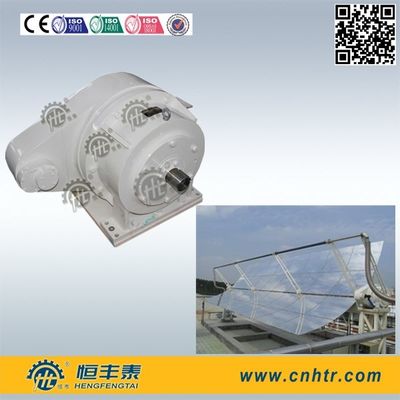

Electric Motor Planetary Gear Reducer Heliostat Concentrate Reducer

Quick Details

Gearing Arrangement: Dual drive transmission device

Ratio: up to 49295

Nominal output torque up to 40000Nm

Max output torque up to 100000Nm

Static load 120 KN

Dynamic Load 75KN

a. Multitooth meshing output, big output torque radius value, powerful carrying capacity.

Adopt modification of “positive equidistant + negative shift ” and reasonable modification parameter, realize “roachback tooth form” design of tooth profile, to homogenize loading between gear teeth of reducer and achieve large torque transmission function.

b.High-precision transmission, large output stiffness,low retrace tolerance, backlash error below 0.05°

Because multitooth mesh at same time, the loading situation is similar with spline. Therefore, it has extremely torsional rigidity and tiny retrace tolerance. Made of high precision gear and planetary, gear is made of hammering high wear-resisting, high-quality alloy material, surface-hardening treatment; processed with precision grinding machining.

c The special design of the bearing structure, long service life.

Gearing exposure to torque and impact loads without transmission parts, bore by the body and slewing directly, thereby reduce the burden on the transmission components, to improve life expectancy, maintain accuracy, with good results.

d Big ratio, high efficiency,self-locking ability

HJR04 Performance index
Performance	Unit	(Fx shaft)	(Fz shaft)
MotorPower	(w)	400	200
Ratio	——	43711.01	45035.586
Mechanical Efficiency	——	≥40%	≥40%
backlash	(°)	0.05°	0.05°
Service life	year	≥25	≥25
Nominal output torque	(Nm)	7060	5680
Max output torque	Nm	17650	14200
Static load	(N)	25000	20000
Dynamic load	(N)	25000	20000
Service environment	(℃)	-20~50	-20~50
Noise	(db)	≤70db	≤70db
Maximum strength
Torsional strength (Nm/rad)		11.4×10e6
Bending strength (Nm/rad)		16.2×10e6

Performance Model	Ratio	Rotate range (^o)	Horizontal allowable maximum dynamic torque (N.m)	Horizontal allowable maximum static torque (N.m)	Elevation allowable maximum dynamic torque (N.m)	Elevation allowable maximum static torque (N.m)	Maximum torsional stiffness (N.m/rad)	Backlash (^o)
HJR01	35000 ~ 50000	360	5578	9296	5132	8553	15.7×10e6	0.015
HJR02	35000 ~ 50000	360	5976	9960	5756	9593	18.4×10e6	0.015
HJR03	35000 ~ 50000	360	10160	16933	9865	16442	36.0×10e6	0.015
HJR04	35000 ~ 50000	360	15216	25360	14512	23587	38.0×10e6	0.015
HJR05	35000 ~ 50000	360	27430	45717	26381	43968	10.5×10e7	0.015
HJR06	35000 ~ 50000	360	36887	61479	35785	59642	14.4×10e7	0.015
HJR07	35000 ~ 50000	360	48285	80474	47665	79442	19.0×10e7	0.015
HJR08	35000 ~ 50000	360	62595	104325	61758	102930	33.3×10e7	0.015

Competitive Advantage:

From Year 2008, Hengfengtai Reducer began to solar power generator transmission equipment research and production, now owned 4 series solar positioning tracking devices, and signed cooperated agreement with domestic research institutes and solar enterprises, products are good comments by them.

1, HJR series multifunction positioning transmission device(application in tower,disc system)

2, HJX high precision double output shaft transmission device(application in groove system)

3,HJW series integrated multifunction positioning transmission device(application in tower,disc system)

4,HJV enclosed type double output shaft transmission device. (Apply to Fresnel and photovoltaic system)

R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.

Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.

Turnover of last year: 60m USD

Technology capacity

Hengfengtai is certified State High-tech Enterprise,
Enterprise Technique Center of Zhejiang province,
Applying ERP information management, CAD, pro/E, UG, CFD etc advanced software are widely used in drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.
Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.

Manufacture capacity

350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
2 manufacture plants with area more than 50000 square meters.
More than 300sets of advanced imported equipments: German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc
