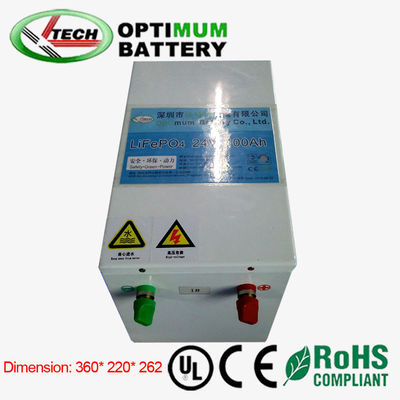

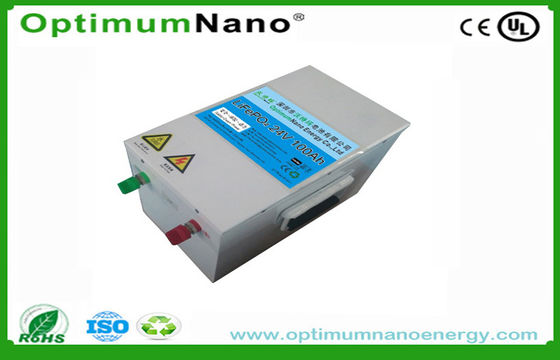

24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS

24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS
24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS 24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS

Large Image :  24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS

Product Details:
Place of Origin: China
Brand Name: Optimum
Certification: CE&UL,ROHS,TS16949,ISO9001-2008 certificates
Model Number: OPT24100
Proudct name: Wholesale 24V 100AH HESS lithium attery packs with suitable BMS
Rated voltage: 24V
Rated capacity: 100AH
Warranty: Home energy storage system,UPS,Solar pv,back up
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 1-5000$
Packaging Details: steel case with nicke protection from rusting
Delivery Time: 2-4weeks
Payment Terms: T/T
Supply Ability: 100 unit per day
Detailed Product Description
Product Name: HESS Solar Energy Storage Battery Rated Voltage: 24V
Rated Capacity: 100AH Cut Off Voltage: 20V
Battery Weight: About26kg Max Charge Voltage: 29.2V
High Light:

solar power storage battery

,

solar power storage batteries

24V 100AH HESS Solar Energy Storage Battery Lithium Battery Packs With Suitable BMS



24V 100AH  battery pack for UPS,Storage energy,Solar pv  system.



24V 100AH LiFePo4 battery pack specification






  • Electrical Charateristics

Nominal Voltage

24V

Nominal Capacity

100Ah

Impedance

(Max. at1000Hz)

≤50mΩ

Expected Cycle Life

2000 cycles





  • Mechanical Characteristics

Height

262±2mm

Width

220±2mm

Length

360±2mm

Net Weight

~35Kg






  • Operation Conditions

Charge Method

Constant Current/Constant Voltage

(CC-CV)

Max. Charge Voltage

29.2V

Standard Charge Current

20A

Charge Temperature

0℃~40℃

Max. Continuous Discharge Current

80A

Peak Instant               Discharge Current

100A,

Duration of Peak Instant               Discharge

10 seconds

Discharge Cut-off Voltage

20.0V

Discharge Temperature

-20℃~65℃

Storage Temperature

-20℃~45℃









































































































Optimum Battery Advantages



1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or SLA.

2) Non-Toxic, environmentally-friendly product.

3) High safety

LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material

LiFePO4 cells do not incinerate or explode under extreme conditions

4) Good performance in high-current discharge cycles.

 We  can design different capacity and different size batteries to meet your demand.



Appplication



EVs

E-car,e-bus,e-bikes,e-scooter,e-motorcycles,E-Mobility cars,e-ship,yacht,Road Sweeper,Golf Trolleys,golf cart,electric wheelchair,staring car battery

UPS

Telecom Base station,Lighting,Small Doctor instruments,Stand by Power,Mining lighting,LED torch.Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator,laser sensor,Portable mobile power battery pack,POS

Power tools

Electric lawn mower,electric drill,electric vacuum cleaner,Electrical tools

Power storage system Solar system,Solar pv system,Solar LED street light,Tidal energy,Wind / solar energy,on&off grid solar system
