Product Details:
Payment & Shipping Terms:
|
| Output Power: | 65W | Output: | 19V DC / 3.4A |
|---|---|---|---|
| Product Name: | AC DC Power Adapter | Standard: | CE / ROHS / FCC |
| Input: | 100-264Vac | Size: | 115*50*32mm |
| High Light: | universal power adapter,laptop power adapter |
||

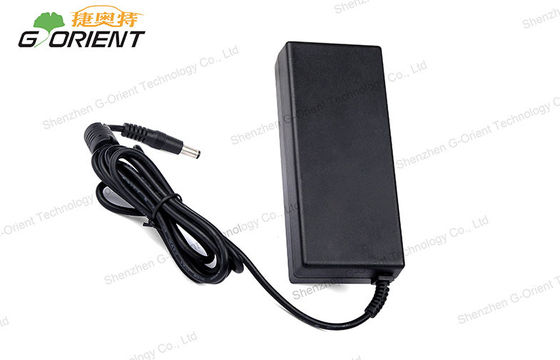

19V 3.4A Switch Power Supply Universal AC/DC Power Adapter For Notebook
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
Specifications:
|
AC DC Power Adapter |
DT193A40 |
|
|
OUTPUT |
DC Voltage |
19V |
|
Current Range |
0~3.4A |
|
|
Rated Current |
3.4A |
|
|
Rated Power |
65W |
|
|
Load Regulation |
±5% |
|
|
Unload Power |
≤ 0.5W |
|
|
INPUT |
Voltage Range |
100Vac-264Vac |
|
Frequency Range |
50-60Hz |
|
|
Efficiency(Typ.) |
≥87% |
|
|
Environment |
Working Environment |
0℃~+40℃ |
|
Safety |
Safety standards |
CE |
|
Safety regulations |
EN60950 |
|
|
Others |
EMC |
EN55022 |
|
MTBF |
50000Hrs |
|
|
Protection Characteristics |
OCP/OVP/OTP |
|
|
Dimension |
115*50*32mm |
|
|
Packing |
1set/white box, 5sets/ Carton |
|
Applications:
The products is our standard products, which also can extremely wide range of applications, including:
• CCTV, Security and Access Control industries
• Portable Printer, scanner, CD/DVD,
• Note-book, Monitor, LCD/LED TV
• Consumption electronic products
• Toy and lighting products
• Tester machine and industrial machine
• Digital product and radio device
• Medical and exercise device or equipment
• Small Household appliance
Features:
* High efficiency 87% & small size
* Through the EMC certification
* 2 years warranty
* Ultrasonic Lamination
* Natural Cooling
Competitive Advantage:
* High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
* Meets "ENERGY STAR" program requirement
* Over voltage protection
* Over load & short circuit protection
* 100% full load burn-in test
* Energy Efficiency: Efficiency level V
* Meet CEC, Reach and MEPS standard
* Rohs compliant
