Product Details:
Payment & Shipping Terms:
|
| Nominal Voltage: | 220/230/240VAC | Frequency: | 50/60 Hz |
|---|---|---|---|
| Frequency Range: | 50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) | Power Factor: | 0.7/0.8(option) |
| Voltage Precision: | 220/230/240X (1±2%)VAC | Frequency Precision: | 50/60HZ±0.05Hz |
| Harmonic Distortion Linear: | Load＜3% Non-Linear Load＜6% | Current Crest Ratio: | 3∶1 |
| Transfer Time: | 0ms(AC→DC) | ||
| High Light: | ups rack mountable,rack tower ups |
||

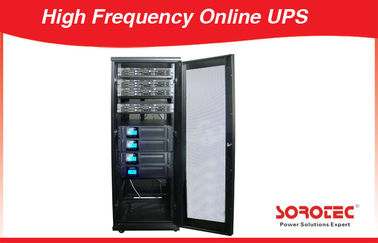

Voltage Circuit uninterruptible power supply rack mount UPS 6KVA 60-138VAC or 130-276VAC
Key Features:
1.Large Blue LCD display interface in English, user-friendly
2.Pure high frequency online UPS, with voltage adjustment circuit, provide stable power protection in bad operation environment
3.Comprehensive electrical isolation protection and bypass protection
4.Input power factor correction, reduce the harm of harmonic on grid, convenient to match small generators
5.Automatic alarm, self test function
6.Wide input voltage range
7.Input neutral and live wire detection function and data protection function
8.Main power failure, going to DC staring , Convenient and reliable; Main power recover, UPS start automatically
Applications:
This series against the key equipment, such as special communication system and computer network system, and provide more flexible and reliable power protection for equipments require strict environment of power .
Trendy & Elegant LCD Design for real-time UPS system information
Technical Specifications of Rack mount UPS HP9116C HP9316CR Series
Model |
HP9116CR 1-10KVA |
HP9316CR 10KVA |
||||||||||||||||||||
|
1KR/1KR-XL |
2KR/2KR-XL |
3KR/3KR-XL |
6KR/ 6KRXL |
10KR/ 10KR-XL |
10KR/ 10KRXL |
|||||||||||||||||
|
Capacity |
1KVA/800W |
2KVA/ 1600W |
3KVA/ 2400W |
6KVA/ 4800W |
10KVA/ 8000W |
10KVA/ 8000W |
||||||||||||||||
|
Nominal Voltage |
220/230/240VAC |
380VAC |
||||||||||||||||||||
|
Frequency |
50/60 Hz |
|||||||||||||||||||||
|
Input |
||||||||||||||||||||||
|
Voltage Range |
115～295VAC(±3VAC) |
176～297VAC(±3VAC) |
304～478VAC(±3VAC) |
|||||||||||||||||||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
|||||||||||||||||||||
|
Power Factor |
＞0.98 |
|||||||||||||||||||||
|
Output |
||||||||||||||||||||||
|
Voltage precision |
220/230/240X (1±2%)VAC |
|||||||||||||||||||||
|
Frequency precision |
50/60HZ±0.05Hz |
|||||||||||||||||||||
|
Power Factor |
0.7/0.8(option) |
|||||||||||||||||||||
|
Harmonic Distortion |
Linear Load＜3% Non-Linear Load＜6% |
|||||||||||||||||||||
|
Overload capacity |
overload(110%～150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
|||||||||||||||||||||
|
Current Crest Ratio |
3∶1 |
|||||||||||||||||||||
|
Transfer time |
0ms(AC→DC) |
|||||||||||||||||||||
|
Battery |
||||||||||||||||||||||
|
DC voltage |
36VDC |
96VDC |
240VDC |
|||||||||||||||||||
|
Recharge time |
5 hours to 90% |
|||||||||||||||||||||
|
Charge Current |
1A |
4A |
1A |
8A |
1A |
8A |
2.0A/4.2A5.6A(option) |
|||||||||||||||
|
Panel Display |
||||||||||||||||||||||
|
LCD |
Display input and output voltage, frequency, battery voltage, battery capacity, and the percentage of load |
|||||||||||||||||||||
|
Communicate |
||||||||||||||||||||||
|
Communicate interface |
RS232, SNMP card(option), USB port(option) |
|||||||||||||||||||||
|
Working Environment |
||||||||||||||||||||||
|
Temperature |
0～40℃ |
|||||||||||||||||||||
|
Humidity |
0～95% non-condensing |
|||||||||||||||||||||
|
Storage Temperature |
-25℃～55℃ |
|||||||||||||||||||||
|
Elevation |
＜1500 meter |
|||||||||||||||||||||
|
Noise Level(1meter ) |
＜45dB |
＜50dB |
||||||||||||||||||||
|
Physics Characteristic |
||||||||||||||||||||||
|
Weight(KG) |
N.W |
16.5 |
9 |
26 |
11.5 |
26 |
12.5 |
18.5 |
18.5 |
25 |
32 |
25 |
32 |
|||||||||
|
G.W. |
18.5 |
11.5 |
28 |
14.5 |
28 |
15 |
21.5 |
21.5 |
28.2 |
35 |
28.2 |
35 |
||||||||||
|
Dimension (WXDXH) |
447x450 x130 |
447x600 x130 |
447x450 x130 |
447x600 x130 |
447x450 x130 |
447 x600x130 |
447x600 x177 |
|||||||||||||||
HP9116CR HP9316CR Series Back Panel Description
EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
