Product Details:
Payment & Shipping Terms:
|
| Type: | Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | online ups suppliers,industrial ups systems |
||

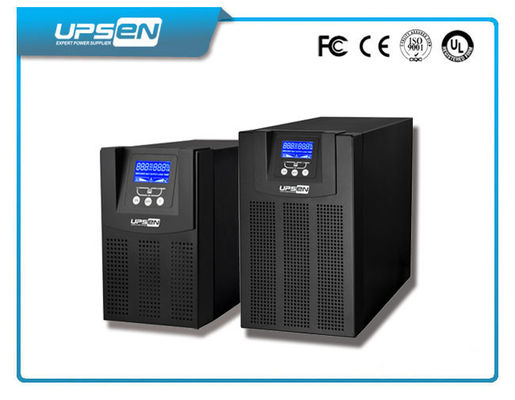

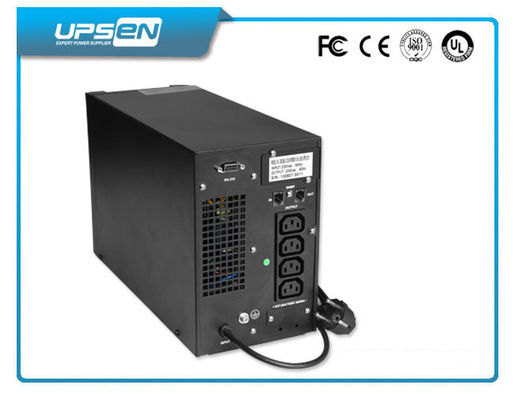

Sinusoidal Online UPS Suppliers 3Kva 12V 7Ah for Servers and Data Rooms
Key Features:
1: Sinusoildal output waveform
2: Single Phase 220V/230/240Vac or 110/120Vac Input/Output
3. Self-diagnosis when UPS start up
4. Wide input range, support kinds of generator
5. Battery configuration flexible, 1KVA-24/36V, 2Kva-48/72/96V,3Kva-72/96V etc.
6. Cold start(DC power on)
7. ECO function, Economic function (Optional)
8. Compact design and less noise
9. Lightening and Surge protection 1050J
10. Fan speed varies according to load automatically
11. Smart RS232 (USB, Dry contact, SNMP card optional)
12: Protecton against over voltage, over load, over current, over charge and so on.
13. Output power factor 0.8,offering more stronger load capability;
14. Online double conversion with DSP control With excellent performance and comprehensive protections for load
and UPS
Application:
Computers, Data Rooms, Servers, Bank Ssytem, ATM, Army, Transportation System, Security System,
CCTV, Monitoring System, irect Digital Control System, PLC
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL | ||
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |||||
| Input | Voltage | 115 - 300Vac | ||||||
| Frequency | 40-60Hz / 50-70Hz | |||||||
| Power factor | 0.99 | |||||||
| Output | Voltage | 220/230Vac(1±2%) | ||||||
| Frequency |
Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
|||||||
| On-load factor | 0.8 | |||||||
| Overload rating | 125% overload,1min | |||||||
| Battery | Type | Valve-control lead acid maintenance-free battery | ||||||
| Back up time |
> 11min (half load) |
External |
> 11min (half load) |
External |
> 11min (half load) |
External | ||
| Rated voltage | 36V | 72V | 96V | |||||
| Transfer time | 0 | |||||||
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC | |||||||
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 | |||||
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 | ||
