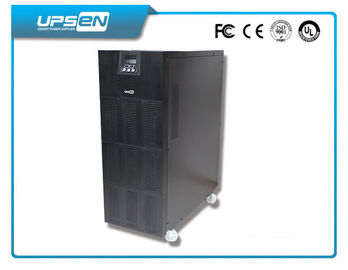

Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel

Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel
Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel

Large Image :  Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Queen Star Series 6-20Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Single Phase/Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

online ups suppliers

,

online ups power supply



Emergency UPS 220V / 230V 6 KVA / 10 KVA High Frequency Online UPS with N + X Parallel

Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)



Key Features:

  • True N+1 Redundancy
  • DSP Double-Conversion On-line Sinewave Design
  • Input Power Factor Correction
  • LCD Display with Advanced Monitoring for Easy UPS Management
  • Programmable 50/60Hz Frequency Conversion
  • Optional Emergency Power Off (EPO)
  • Wide Input Voltage Window
  • Precision Output Voltage Regulation
  • Superior Brownout, Surge & TransientProtection
  • Optional Extended Battery Banks & Chargers
  • RS-232C, USB & Optional SNMP/HTTP Agent
  • WINPOWER® UPS Monitoring & Management Software



Technical Specification



Queen Star Series Q6K-20Kva
Model Q6K Q6KL Q10K Q10KL 31Q10KL 31Q15KL 31Q20KL
Capacity 6KVA/4800W 10KVA/8000W 15KVA/12KW 20KVA/16KW
Input Nominal Voltage 220/230/240Vac 380/400/415Vac
Voltage Range 176~276Vac (1P2W+G) 304~478Vac (3P4W+G)
Current  31A (max) 50A (max) 50A (max) 75A (max) 100A (max)
Frequency 46~54Hz/56~64Hz
Power Factor ≥0.99
Output Voltage 220/230/240± 2%Vac  (1P2W+G)
Frequency 50/60Hz(adjustable)                                                                                      50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode)
Current  27.3A 45A 68A 91A
Power Factor 0.8lag
Waveform Pure Sine Wave
Waveform Distortion Line load <2% Line load <3%
Back-up Time Full Load ≥7′ Depends on external batteries bank's Capacity ≥5′ Depends on external batteries bank's Capacity
Half Load ≥20′ ≥13′
Battery Nominal Voltage 192/240Vdc
Transfer Time 0ms
Overload Capacity  >105% 1min, >120% 30s transfer to bypass, shut down in 1min
Communication SNMP,RS-232,USB+Intelligent Slot
Operating Environment Temperature 0C~40℃
Humidity 15%~90%
Dimension Width (mm) 260 260 260 260 260
Depth (mm) 560 533 560 533 560
Height (mm) 717 501 717 501 717
Net Weight(Kg) 68 18 70 20 28 30 30
*Specification are subject to change without prior notice
