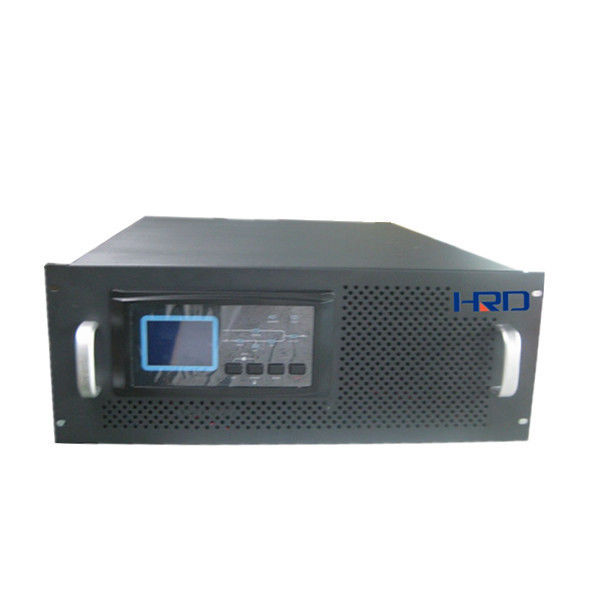

Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre

Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre
Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre

Large Image :  Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre

Product Details:
Place of Origin: Shenzhen China
Brand Name: OEM / ODM/ customised
Certification: CE, ISO9001-2000
Model Number: PCR06,PCR10
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: 500-1500USD
Packaging Details: 1PCS/2CTNS
Delivery Time: 15-20DAYS after down payment
Payment Terms: TT OR LC
Supply Ability: 300pcs/day
Price term: Fob Shen zhen
Warranty: 18 months after shipment, 10years spares support
Detailed Product Description
High Light:

uninterruptible power system

,

rack mounted ups

Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre



Quick Detail:



1) Phase:Single Phase

2) Output Voltage:  208/220/230/240 VAC

3) type :rack mount

4) 10A intelligent DSP charger avaiable , with inverse battery protection, 3stages charging process to extend battery life hugely;Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre 0



Introduction

Power Castle Rack mount is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.

Perfect Application:

Network, data centre, servers and workstations, control system, communication system and office etc.

Main Features are below:

19' Rack-mount, 4U(height)

High frequency and dual conversion on-line technology

192VDC and 240vdc easily  convertible

Wide input frequency 40-70hz

Perfect failure protection and alarm function:

Rich Communication and Monitoring Features

Advanced PFC technology

Self-diagnosis when UPS startup

AC  start and Cold start feature(DC power on )

Automatically charging batteries in UPS off mode

Lightning and surge protections(surge energy rating 1050 Joules)

4 levels Fan speed automatically changes as load varies

Event record function, 100logs

Large LCD display and easy maintenance design
Technical Specifications:







Power Castle RACKMOUNT 6K/10K  ONLINE HF UPS

MODEL PCR 06S PCR 06L PCR 10S PCR 10L
PHASE 1 phase in / 1 phase out
CAPACITY 6000 VA / 4800 W 10000 VA / 8000W
INPUT
Voltage Range Low Line Transfer  176 VAC ± 3% @ 100% load
130 VAC ± 3% @ 50% load
Low Line Comeback  188 VAC ± 3% @ 100% load
142 VAC ± 3% @ 50% load
High Line Transfer  286 VAC ± 3%
High Line Comeback  270 VAC ± 3%
Frequency Range   40-70Hz, following range 46~54 Hz ◎50Hz / 56~64 Hz ◎60Hz
Phase Single phase with ground
Power Factor ≧0.99  @ 100%load
OUTPUT
Output Voltage 208/220/230/240 VAC
AC Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 46~54 Hz ◎50 Hz / 56~64 Hz ◎60 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≦3 % THD (Linear Load)  ≦6 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode Zero
Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 89%
Battery Mode 88%
BATTERY
Standard model Battery Type lead-acid battery maintanence free
Numbers 16/20Pcs
Typical Recharge Time 3 hours recover to 90% capacity 4 hours recover to 90% capacity
Charging Current (max.) 1A ±10% 4A±10% 1A ±10% 4A ±10%
Charging Voltage  220/273 VDC ± 1%
Long-run Model Battery cabinet  inbuilt with 16/20pcs 7ah without  inbuilt with 16/20pcs9ah without
INDICATORS
LCD Panel UPS status, Load level, load watts, load va, Battery level, Input/Output voltage, output current, Bus voltage,
 Temp, and warning and fault code and events
ALARM
Battery Mode Sounding every 4 seconds( can mute)
Low Battery Sounding every second
Overload Sounding every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension, D X W X H (mm) UPS Unit : 580 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U]
UPS unit: 580 X 438 X 176[4U] UPS Unit: 668 X 438 X 176 [4U]
Battery Pack : 580 X 438 X 176 [4U]
UPS unit: 668 X 438 X 175[4U]
Net Weight (kgs) UPS Unit : 22 kgs
Battery Pack : 62kgs
25kgs UPS Unit : 25 kgs
Battery Pack :75 kgs
25kgs
ENVIRONMENT
Operation Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
* L means long-run model, S means standard model

 Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre 1Power Castle Series Rack Mount Ups 10kva 220vac For Data Centre 2
