Can provide laboratory or somewhere else with low power UPS Series 1KVA,2KVA,3KVA

China Can provide laboratory or somewhere else with low power  UPS  Series 1KVA,2KVA,3KVA supplier

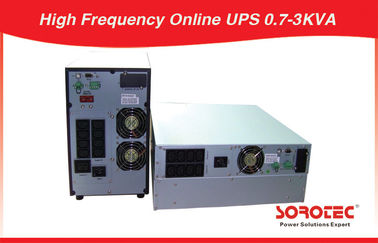

Large Image :  Can provide laboratory or somewhere else with low power UPS Series 1KVA,2KVA,3KVA

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9117C 0.7 - 3KVA

Payment & Shipping Terms:

Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Nominal Voltage: 100/110/120/127VAC Or 200/208/220/230/240VAC Nominal Frequency: 50/60 Hz
Voltage Range: 60-138VAC Or 115-276VAC Frequency Range: 50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor: 0.9 Current Crest Ratio: 3:1
Transfer Time: 0ms(AC→DC)



Laboratory Low Power Series Uninterruptible Power Supply Ups Rack Mount 3000va 1kva 2kva





Key Features
● Protects against downtime, data loss and process interruption by providing continuous, clean power


● Offers premium performance with a 0.9 power factor and >95% efficiency


● Increases battery service life and system uptime with ABM battery charging technology


● Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems or processes thanks to a capability to control load segments.


● Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space




● Can replace batteries online, convenient for user to use
● Enhanced monitoring and configuration capability through easily navigated multilingual graphical display.



        Replace battery online:               ABM Technology:
     Can provide laboratory or somewhere else with low power  UPS  Series 1KVA,2KVA,3KVA      Can provide laboratory or somewhere else with low power  UPS  Series 1KVA,2KVA,3KVA




Application
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing





Technical Specifications of Rack mount UPS HP9117C Series

Model

HP9117C  0.7-3KVA

1KR

1KR-XL

2KR

2KR-XL

3KR

3KR-XL

Capacity

1KVA/900 W

2KVA/1800 W

3KVA/2700 W

Nominal Voltage

100/110/120/127VAC or 200/208/220/230/240VAC

Nominal Frequency

50/60 Hz

Input

Voltage Range

60-138VAC or 115-276VAC

Frequency Range

50HZ:(46~54HZ);60HZ:(56HZ~64HZ)

Power Factor

>0.98

Output

Voltage precision

100/110/120/127VAC(±2%) or 200/208/220/230/240VAC (±2%)

Frequency precision

50Hz/60Hz±0.05Hz

Power Factor

0.9

Harmonic Distortion

Linear Load<3%    Non-Linear Load<5%

Overload capacity

overload(110%~150%)after 30 seconds automatically transfer to bypass, it recover after  normal load

Current Crest Ratio

3∶1

Transfer time

0ms(AC→DC)

Battery

DC voltage

36VDC

96VDC

96VDC

Recharge time

7 hours to 90%

Charge Current

1A

4A/8A(option)

1A

4A/8A(option)

1A

4A/8A(option)

Panel Display

LCD

UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records

Language

English, French, German, Russian, Spanish

Communicate

Communicate  interface

Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port)

Working Environment

Temperature

0~40℃

Relative humidity

0~95% non-condensing

Storage Temperature

-25℃~55℃

Elevation

<1500 meter

Noise Level( 1meter)

<45dB

<45dB

<50dB

Physics Characteristic

Net weigh(Kg)

16

9

10.5

11.5

11.5

12.5

Gross weight(Kg)

17.5

11.5

12.5

13.5

13.5

14.5

Dimension(WXDXH)

Main unit (Rack mount)

438X415X80

455 X440 X90

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943
Note: Product specifications are subject to change without further notice
