19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use

China 19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use supplier

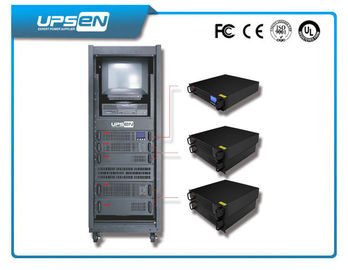

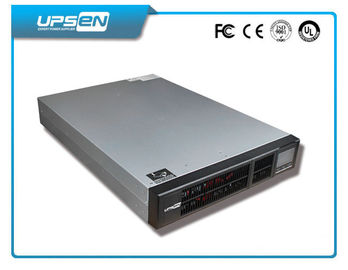

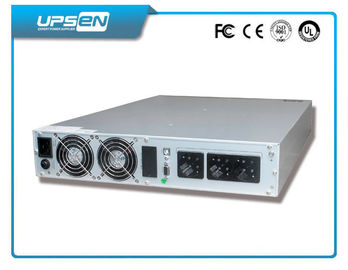

19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use supplier 19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use supplier 19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use supplier

Large Image :  19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use

Product Details:

Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Rack Mount Star Series 1-10Kva

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Type: Rack Mount Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000



19 Inch Sinewave Rack Mount UPS 1Kva - 10Kva for Servers, Data-center, Critical Network Devices Use

Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)



Key Features:



Rack mount 19”design 2U/3U Height to save space
High Frequency and double conversion online technology
Fully digitized microprocessor control
Smart RS232, USB, RJ11, RJ45 communication with monitoring software
Optional SNMP card slot
Wide input voltage range
Advanced PFC technology
Self-testing when UPS startup
Advanced battery management
Automatic battery charging in UPS off mode
Lighting and surge protection
Short circuit and overload protection
Network/fax/modem surge protection
Optional extension battery pack



Applications


RM Series 1KVA~10KVA High Frequency Rack Mount Online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.





Rack Mount Star Series RM1K-10K
Model RM1K RM2K RM3K RM1KL RM2KL RM3KL RM6KL RM10KL
Input Phase Single Phase with Ground
Nominal Voltage 110115//120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC  or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection IEC320-10A inlet IEC320-16A inlet IEC320-10A inlet IEC320-16A inlet Terminal Block
Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2% 110/115/120Vac or 220/230/240VAC± 1%
Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode) 46~54Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode) 50Hz ± 0.05Hz ( Battery mode)
Waveform Pure Sine Wave
Power Factor 0.7/0.8 Optional
Overload Capability 108%~150% for 30 sec., 150% for 300 ms

105%~130% for 10 min.,

130% for 1 min.

Current Crest Ratio 3:1
Connections IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320 -10A * 4

IEC320-10A and

Terminal Block

IEC320-10A * 4 and

Terminal Block

Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default “NO”, user adjustable to “YES” Yes
Voltage Range  80~264VAC (Default), user adjustable within 80~286VAC 176 ~ 261VAC
Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED /LCD indicators

Load level / Battery level, Battery , Utility Power,

Inverter, Bypass, Overload, Fault

Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card,

AS400 card or WinPower CMC)

Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental Operating Temperature 0 ~ 40°C
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3
Dimensions (W x D x H) mm 482 x 420 x 88 (2U)

482 x 420 x 88 (2U) or

(3U Internal Batteries)

482 x 420 x 88 (2U) 482.6 x 600 x 130 (3U)
Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 24/36VDC 48/72VDC 72/96VDC 24/36VDC 48/72VDC 72/96VDC 192/240VDC

Battery Numbers

 & Capacity

2/3Pcs *12V7.2Ah 4/6Pcs *12V7.2Ah 6/8Pcs *12V7.2Ah

Depending on the capacity of

external battery packs

Backup Time (Full load)      5 min 7min (with 1 BP) 5 min (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%
Charging Current (Max.) 1.0A 1.0A 1.0A 8A±1A 4.2A
Charging Voltage 41.1Vdc±0.6V 110Vdc±0.4V 41.1Vdc±0.6V 110Vdc±0.4V 274Vdc±1%V
Net Weight (Kg)  --- 25.3 25.3 --- --- --- ---
Dimensions  (W x D x H) mm  --- 482 x 420 x88 (2U) 482 x 420 x88 (2U)  --- --- ---  ---
