Product Details:
Payment & Shipping Terms:
|
| Type: | Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Three Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | industrial uninterrupted power supply,220V ups Power Supply |
||

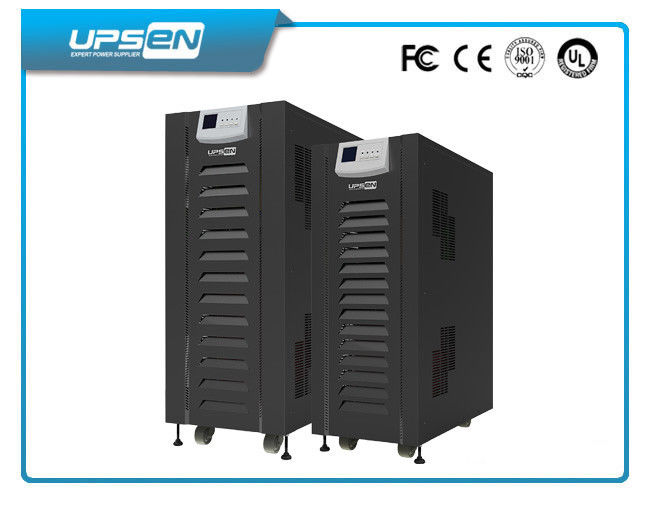

Large Triphase Uninterrupted Power Supply 60Kva Isolation Transformer and EPO
Key Features
•Online double-conversion, which assure UPS with stable and clean power for devices.
•True galvanic isolation transformer design, enable UPS with strong overload ability
•Accept dual-mains input
•Parallel operation with up to 4 units (option)
•DSP technology guarantees high reliability
•Control designed to withstand all kinds of loads
•Intelligent battery management to prolong battery lifecycle
•Redundant fan design and independent ventilation enhance durable operation under
harsh environment
•Adjustable battery numbers from 16 to 32pcs
•Variety of communication options available, double RS232 + remote contacts + 2 communication interface slots
Application
Industrial equipment, Financial and Securities, Large Data rooms, Medical and Health
Technical Specification
| 3P/3P ONLINE UPS SELECTION GUIDE | ||||||||
| LS33 Series 10K - 80Kva | ||||||||
| MODEL | 10K | 20K | 30K | 40K | 60K | 80K | ||
| CAPACITY | 10KVA/ 8KW | 20KVA/ 16KW |
30KVA/ 24KW |
40KVA/ 32KW | 60KVA/ 48KW | 80KVA/ 64KW | ||
| INPUT | ||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||
| Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||
| Frequency | 46-54Hz or 56-64Hz | |||||||
| INVERTER | ||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||
| Precision | Stationary: ±1% Transitory: ±5% (load variations 100-0-100%) |
|||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz |
|||||||
| Max. Synchronisation Speed | ±1 Hz/s | |||||||
| Waveform | Pure Sinewave | |||||||
| Total Harmonic Distortion (THDv) | <2% (Linear Load) <5% (Non-linear Load) |
|||||||
| Phase Displacement | 120º ±1% (balanced load) 120º ±2% (imbalances 50% of the load) |
|||||||
| Dynamic Recovery Time | 1 cycle at 98 % of the static value | |||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||
| Admissible Crest Factor | 3:1 | |||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% | |||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit High Crest-Factor current: Peak Voltage Limit |
|||||||
| STATIC BYPASS | ||||||||
| Type | Solid state | |||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||
| Frequency | 50/60 Hz | |||||||
| Activation Criterion | Microprocessor control | |||||||
| Transfer Time | Zero | |||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||
| Transfer to Bypass | Immediate, for overloads above 160% | |||||||
| Retransfer | Automatic after alarm clear | |||||||
| MAINTENANCE BYPASS | ||||||||
| Type | Without interruption | |||||||
| Voltage | 3 x 400V (3Ph + N) | |||||||
| Frequency | 50/60 Hz | |||||||
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% | |||
| Battery Mode | 90% | 91% | 93% | 93% | ||||
| BATTERY & CHARGER | ||||||||
| Battery Type and Numbers | 12VDC x 16 pcs | 12VDC x 32 pcs (29~32 pcs adjustable) | ||||||
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) | ||||||
| Charging Method | CC/CV | |||||||
| Precision | ±1% | |||||||
| Charging Current | Max.: 40 A | |||||||
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) | ||||||
| PHYSICAL | ||||||||
| Dimensions, D x W x H(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 840 x 432 x 1140 | 975 x 554 x 1286 | ||||
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 | ||
| * Product specifications are subject to change without further notice | ||||||||
