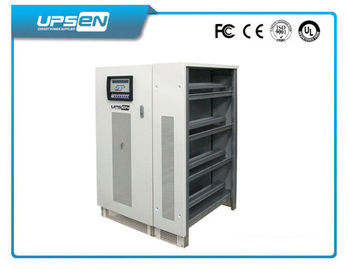

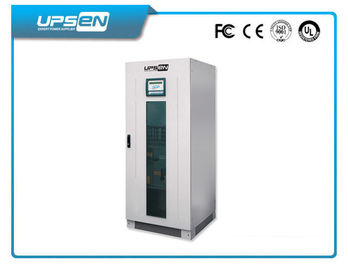

High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection

High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection
High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection

Large Image :  High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: High Efficiency Star Series 10-200Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

high efficiency UPS

,

220V ups Power Supply



High Efficiency 200 Kva / 160 Kw Low Frequency Online UPS With EPO and Over Load Protection

Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)





Key Features



● Advanced DSP digital control technology

● Large-screen LCD + LED in Chinese and English display

● Dual AC input
● Double CPU control

● Pure sine wave output, true on-line dual conversion design

● Adopt 4 layer PCB, and SMD technology.

● High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology

● Touch screen display, with the simple operation and Intuitive data, optional display language and logo.

● Set the work mode on the display directly, UPS mode or ECO mode

● Intelligent detecting function
● Modularize
● Battery can be sharing
● Up to 8 units in parallel
● Compatible with generator
● Manual maintenance bypass
● Wide input voltage range
● High output power factor
● Strong environmental adaptability
● Advanced battery management
● N+X parallel redundancy
● Strong shock resistance ability
● EPO function
● Full protection against over-discharge, overcharge, over load





Application
Large-medium computer data center, industrial process and other mission-critical equipment





Technical Specification



High Efficiency Strar Series HE33 10K-200K
Model HE33 Series UPS
Capacity (VA) 10K 15K 20K 30K 40K 60K 80K 100K 120K 160K 200K
Noninal output capacity 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW
Operate type Double conversion online type
Input Nominal voltage 220V/380, 230/400, 240/415V
Voltage Tolerance 380/400/415V±25%
Frequency 50Hz/60Hz±5%

Permitted Frequency

 Tolerance

±2% (selectable from ±1% to 5% from the front panel)
Soft start 0-100% in 30" (selectable)
Input power factor 0.95(with input filter)
Standard features Back Feed protection separable bypass line
  Phase Three phase +N+G
Output Voltage 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)
Frequency 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode)
Static stability ±5% in 19ms
Distortion Linear load <3%, non linear load<5%
Power factor 0.8
Output wave Pure sine wave
Crest factor 3:01
Battery voltage Standard battery voltage 384V 432V 480V
Floating charge 432V 486V 540
Terminal voltage 336V 378V 420V
Charge current 1A-50A (Can calculate and set according to battery configuration software)

Maximum Discharge

 Current

28 42 56 85 113 169 225 282 338 381 507
Main Function Active voltage change 0-100%±5%
Instant recover time <10ms
Imbalance voltage <±5%,<±1%( Balance load voltage)
Overload capacity 125%→10min,150%→1min
Static switch Automatic
Protection UPS over current, short circuit, battery low voltage, over heat
Cold method Compel aeration ( temperature control mode)
Noise 60-65dB
Display LED,LCD display
Remote signalling Voltage-free contacts
Remote commands EPO and bypass

Communication Port

(Optional)

double RS232 + remote contacts + 2 communication interface slots
Alarm Alarm with buzzer and indicators
Environment Temperature: 0-40C  Humidity: 0-90%





Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
