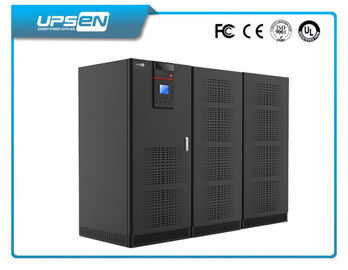

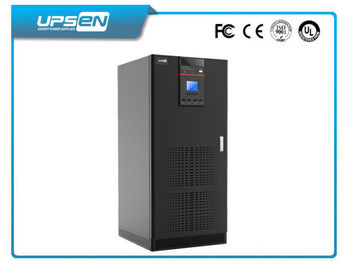

120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse

120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse
120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse 120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse

Large Image :  120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Low Frequency Star Series 100-400Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.9
Phase: Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

industrial uninterrupted power supply

,

220V ups Power Supply



120KVA / 108KW 160KVA / 144KW PF 0.9 Industrial UPS Systems With 6 Pulse / 12 Pulse

Low Frequency Online UPS Low Frequency Strar Series LF33 120K-800K(3Ph in/3Ph out)



Low Frequenccy UPS Overview

1: Low frequency UPS with both 6 Pulse and 12 Pulse for choose

2: UPS with output power factor 0.9

3: UPS with  Adopt 4 layer PCB, and SMD technology

4: Pure sine wave output, true on-line dual conversion design

5: UPS with capacity 120Va - 400Kva



Key Features

●0.9 output power factor,

●UP to 6 units in parallel

●6-inch extra large LCD that display 12 language( English/Russian/Spanish/French…)

●The efficiency of the machine is more than 94%, and reach 98% in ECO mode.

●6th generation DSP control

● Pure sine wave output, true on-line dual conversion design

● Adopt 4 layer PCB, and SMD technology.

● High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology

● Touch screen display, with the simple operation and Intuitive data, optional display language and logo.

● Set the work mode on the display directly, UPS mode, ECO mode, EPS mode.

● Intelligent detecting function

● Excellent load featureIt is completely capable to load from 0~100% while no need to change to bypass, which make sure    the output reliable.

● Three phase separately control, realizes the control of instantaneous over~loading balance, so as to reach 100%

    unbalanced load.

● Cold start

   When mains failure, can directly use the battery to start the ups until the battery discharge to low voltage, when mains

   recover, can self start UPS.

● Generator compatible

  According to the real electric circumstances, UPS can be compatible to the generator, highly improve the generator input

   efficiency, save the energy.

● Intelligent communication

   With RS232 and RS485 standard collocation, optional SNMP and dry contact

●  Perfect protection.

   Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over

    charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.

● Selectable battery inspection module.

  Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the

   administrator.

● High-powered dynamic feature

  Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic

   adjustment, but also reduce the output voltage distortion.

● ptional input harmonic filter or 12 pulse rectifier

  Effectively restrain the input THD,raise UPS input power factor, reduce the input THD current.



Application
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.



Technical Specification



                                                         Low Frequency Strar Series LF33 100K-400Kva
Model                                          LF33 Series
Rectifier Type 6p 12p 6p 12p 6p 12p 6p 12p 6p 12p
Rated Nominal 120KVA/108KW 160KVA/144KW 200KVA/180KW 300KVA/270KW 400KVA/360KW
Rated input voltage 380/400/415VAC 3-phase 4-wire
Rated frequency 50/60HZ
Input parameters
Input voltage range ±25%
Input frequency range 45Hz~65Hz
Input soft start function 0-100%   5-300settable
Input power factor more than 0.98(If harmonic filter is added)
Input harmonic current (THDi) less than 4.5%(If harmonic filter is added)
Bypass
Bypass voltage range -20%~+15%
Bypass frequency range 50/60HZ±10%
Output parameters
Inverter output voltage 380/400/415VAC 3-phase 4-wire
Voltage stability ±1%(Steady status),±3%(Transient status)
Frequency 50/60Hz
Mains power synchronization window ±5%
Actually measured frequency accuracy (internal clock) 50/60Hz±0.01Hz
Output power factor 0.9(Output 90kW per 100kVA)
Transient response time less than 5ms
Inverter overload capability At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s
Short circuit current from inverter 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
Maximum Bypass capability 1000% for 100ms
Phase shift With 100% balanced load less than1°
Characteristic With 100% imbalance load less than1°
Total harmonic 100% linear load less than1%
Distortion(THDv) 100% non-linear load less than3%
System efficiency (full load) Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability 1%
DC ripple voltage ≤1%
Operating environment
Operating temperature range 0~40°C
Storage temperature -25~70°C(Without battery)
Relative humidity 0~95% No condensation
Maximum operating height ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m
Noise (1m) 58-68dB
Protection level IP20
Standard Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3
Physical parameters
Weight (kg) 980 1420 1200 1750 1350 2000 1600 2200 2100 2750
Width(mm) 900 1250 1250 1640 1250 1640 1640 2280 2280 2280
Depth (mm) 855 855 855 855 855 855 855 855 855 855
Height (mm) 1900 1900 1900 1900 1900 1900 1900 1900 1900 1900
*Specifications change without prior notice



Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
