Product Details:
Payment & Shipping Terms:
|
| Type: | Online | Output Power Factor: | 0.8 |
|---|---|---|---|
| Phase: | Three Phase | Protection: | Over Load/Current/Voltage, Short Circuit Etc |
| Display: | Digital LCD Display | H.S. Code: | 8504402000 |
| High Light: | industrial uninterrupted power supply,220V ups Power Supply |
||

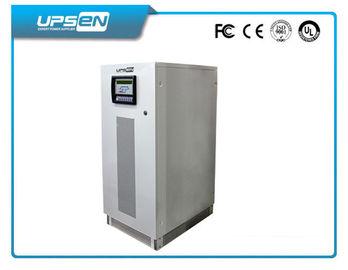

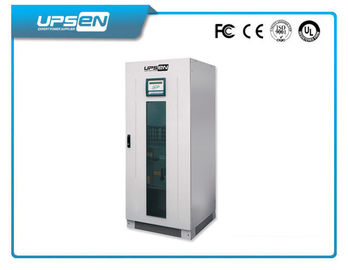

50Hz / 60Hz 208V 220V 3 Phase Low Frequency No Break UPS SAI Power Supply 10KVA - 200KVA
Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)
Low Frequency UPS Overview
1: Low Frequency UPS inbuilt pure copper isolation tranformer
2: Low Frequency UPS with 3 years' warranty and service lifetime over 10 years
3: UPS with CE and ISO Certificate
4: UPS with 3 Phase 208Vac 220Vac or 380Vac 400Vac 415Vac
5: UPS with DC Voltage 384Vdc 432Vdc 480Vdc
6: UPS suitable for maintenance free battery
Key Features
● Output Power Factor 0.8
● Three Phase Input / Output both for 208Vac 220Va and 380Vac 400Vac 415Vac
● DSP control
● Double CPU control
● Modularize
● Battery can be sharing
● Up to 8 units in parallel
● Compatible with generator
● Manual maintenance bypass
● Wide input voltage range
● High output power factor
● Strong environmental adaptability
● Advanced battery management
● N+X parallel redundancy
● Strong shock resistance ability
● EPO function
● Full protection against over-discharge, overcharge, over load
Application
large-medium computer data center, industrial process and other mission-critical equipment
Technical Specification
| High Efficiency Strar Series HE33 10K-200K | ||||||||||||
| Model | HE33 Series UPS | |||||||||||
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K | |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW | |
| Operate type | Double conversion online type | |||||||||||
| Input | Nominal voltage | 220V/380, 230/400, 240/415V | ||||||||||
| Voltage Tolerance | 380/400/415V±25% | |||||||||||
| Frequency | 50Hz/60Hz±5% | |||||||||||
|
Permitted Frequency Tolerance |
±2% (selectable from ±1% to 5% from the front panel) | |||||||||||
| Soft start | 0-100% in 30" (selectable) | |||||||||||
| Input power factor | 0.95(with input filter) | |||||||||||
| Standard features | Back Feed protection separable bypass line | |||||||||||
| Phase | Three phase +N+G | |||||||||||
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) | ||||||||||
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) | |||||||||||
| Static stability | ±5% in 19ms | |||||||||||
| Distortion | Linear load <3%, non linear load<5% | |||||||||||
| Power factor | 0.8 | |||||||||||
| Output wave | Pure sine wave | |||||||||||
| Crest factor | 3:01 | |||||||||||
| Battery voltage | Standard battery voltage | 384V | 432V | 480V | ||||||||
| Floating charge | 432V | 486V | 540 | |||||||||
| Terminal voltage | 336V | 378V | 420V | |||||||||
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) | |||||||||||
|
Maximum Discharge Current |
28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 | |
| Main Function | Active voltage change | 0-100%±5% | ||||||||||
| Instant recover time | <10ms | |||||||||||
| Imbalance voltage | <±5%,<±1%( Balance load voltage) | |||||||||||
| Overload capacity | 125%→10min,150%→1min | |||||||||||
| Static switch | Automatic | |||||||||||
| Protection | UPS over current, short circuit, battery low voltage, over heat | |||||||||||
| Cold method | Compel aeration ( temperature control mode) | |||||||||||
| Noise | 60-65dB | |||||||||||
| Display | LED,LCD display | |||||||||||
| Remote signalling | Voltage-free contacts | |||||||||||
| Remote commands | EPO and bypass | |||||||||||
|
Communication Port (Optional) |
double RS232 + remote contacts + 2 communication interface slots | |||||||||||
| Alarm | Alarm with buzzer and indicators | |||||||||||
| Environment | Temperature: 0-40C Humidity: 0-90% | |||||||||||
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
