AC Frequency Conversion Giant Dye Jigger Fabric Dyeing Machine1000kg - 3200kg

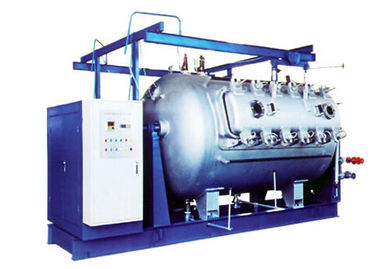

KD-GR HTHP AC Frequency Conversion Giant Dye Jigger
GR1000 type jigger has different models(2000, 2200, 2800, 3000, 3200) for user to choose.
This machine is applied for front-back finishing and drying cotton,hemp,chemical fabric under high temperature and high pressure. Widely used for printing & dyeing industries small amount,multi kinds, combined of desizing, boiling, bleaching and dyeing process. Advanced design, reasonable structure, widely use, safety operation, easily maintenance.

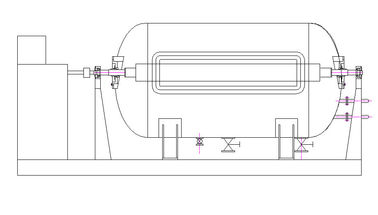

This machine is composited of driven box,dye tank,electrical control cabinet,pipeline and output frame(optional parts).
Machine size (L is roller surface width): 5100mm
Max fabric working diameter: 1200mm
Max fabric working width: L= 2400mm
Working temperature: 140℃
Main cylinder diameter: Φ300mm
Liquor ratio: 1:3
Cell body volume: 300L-600L
Machine weight: about 8T
Motor power: based on fabric width
Fabric running speed: 10--120M/min
Fabric tension arrange: 10—70kg/M
This system cans automatic charge according to technology request to reduce fabric front and back chromatist and improve yield.
The whole machine drives by two AC motors through pulley drives gear reducer, reduction box and cloth roller connected by flexibility coupling, this type separating structure is easy to operation, dismantling and installation.
2. Dye vat
Dye vat is made of 1Cr18Ni9Ti stainless steel, the dye vat adopts double bottom roller to drive, extend the time of fabric in the dye liquor,increased fabric dyeing efficiency; cell body center installed velocity measurement roller which can measure speed,count length,check fabric tension；cell body bottom installed dye liquor circulation device to make inside temperature and liquor stirring evenness and remove fabric crosswise chromatist.
3. Width expansion frame
In order to prevent wrinkle during dyeing process, install spring type width expansion frame inside the cell body；width expansion frame is made of stainless steel, composited of swing arm, width expansion roller, cloth guide roller, tension spring etc.
Tension spring is made of 4Cr13,with good mechanical characteristic and corrosion resistance.
4. Water,steam pipe system
Inflow parts is composited of water inlet,water inlet spray and mating valves, user can control according to actual inquiry.
Total machine steam pipe is mainly composited of cell body thermal insulation coil,cell body direct heat pipe and mating valves；cell body direct heat pipe is automatic controlled by pneumatic thin film valve.
5. Output mechanism(selective purchasing part)
Total machine output has two types: cross arm output and A frame driven output, user choose any type.
Cross arm output installed in the total machine, composited of cross arm,motor,cylinder,rubber roller, output motor thought worm wheel retarding mechanism to drive rubber roller, then rubber roller hold down the A frame rolling roller to friction output.
“A” frame output is composited of drive frame,motor reducing box,universal joint cross,A frame etc.
