Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | Single Phase 220V±20% The Other Input Voltage Range And Rated Voltage Can Be Custom Designed. | Output Voltage: | Single Phase 220V±1-5%, Three Phase: 380V±1-5% |
|---|---|---|---|
| Supply Frequency: | 50/60Hz | Insulating Resistance: | ≥2MΩ |
| Voltage Regulation Mode: | Independent Phase Regulation For Three Phase | Efficiency: | >98% On Full Load |

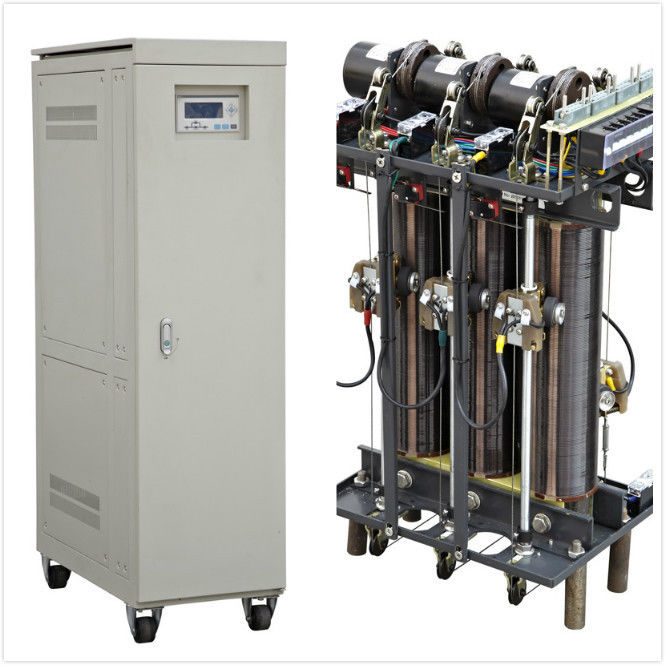

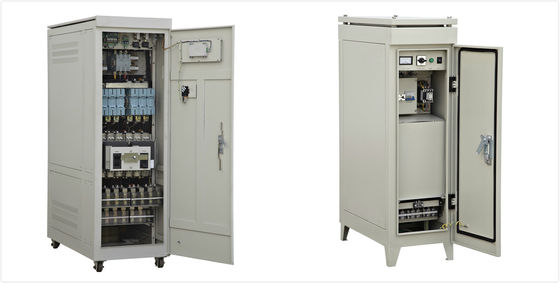

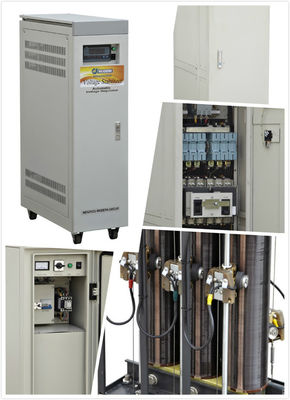

35 years professional power solutions manufacturer to supply Independent regulation voltage regulator energy saving power stabilizer.
Description:
Modern's automatic voltage regulator provides continuous power conditioning and the broadest range of protection available. It guards against voltage fluctuations that can wreak havoc with your electrical load (equipment).
Features and benefits of power conditioner:
Technical Parameter of power conditioner
|
Input Voltage |
DBW |
SBW |
|
220±15%,20%,30%,50% |
380±15%,20%, 25%30%,50% |
|
|
Output Voltage |
220Vac±1-5% |
380Vac±1-5% |
|
Efficiency |
>98% |
|
|
Precision |
1-5% |
|
|
Frequency |
47-53Hz |
|
|
Response Time |
<0.5S/20V(Line Voltage) |
|
|
Insulated Strength |
2000V/1 minute without puncture |
2500V/1 minute |
|
Insulated Resistance |
>2MΩ |
|
|
Wave Deformation |
Nil |
|
|
Isolation transformer |
Optional |
|
|
Surge Protection |
Optional |
|
Model & Specifications
|
Phase |
Model |
Rated Capacity(KVA) |
Dimension(H×W×D)mm |
Cabinet(QTY) |
|
Single Phase
|
DBW-10 |
10 |
1020×300×700 |
1 |
|
DBW-15 |
15 |
1020×300×700 |
1 |
|
|
DBW-20 |
20 |
1020×300×700 |
1 |
|
|
DBW-30 |
30 |
1020×300×700 |
1 |
|
|
DBW-50 |
50 |
1120×380×750 |
1 |
|
|
DBW-80 |
80 |
1220×400×780 |
1 |
|
|
DBW-100 |
100 |
1220×400×780 |
1 |
|
|
DBW-150 |
150 |
1420×450×930 |
1 |
|
|
DBW-200 |
200 |
1420×450×930 |
1 |
|
|
Three phase
|
SBW-F10 |
10 |
1020×300×700 |
1 |
|
SBW-F20 |
20 |
1020×300×700 |
1 |
|
|
SBW-F30 |
30 |
1020×300×700 |
1 |
|
|
SBW-F50 |
50 |
1120×380×750 |
1 |
|
|
SBW-F80 |
80 |
1220×400×780 |
1 |
|
|
SBW-F100 |
100 |
1220×400×780 |
1 |
|
|
SBW-F150 |
150 |
1420×450×930 |
1 |
|
|
SBW-F200 |
200 |
1520×520×980 |
1 |
|
|
SBW-F300 |
300 |
1720×600×1380 |
1 |
|
|
SBW-F500 |
500 |
1860×720×1580 |
1 |
|
|
SBW-F800 |
800 |
1860×900×1080 |
1 |
|
|
SBW-F1000 |
1000 |
1860×900×1080 |
2 |
|
|
SBW-F1500 |
1500 |
1860×900×1080 |
3 |
|
|
SBW-F2000 |
2000 |
1860×900×1080 |
3 |
