High Power Mechanical Automatic Voltage Regulator 100 KVA DBW 220V IP20 AC

High Power Mechanical Automatic Voltage Regulator 100 KVA DBW 220V IP20 AC
High Power Mechanical Automatic Voltage Regulator 100 KVA DBW 220V IP20 AC

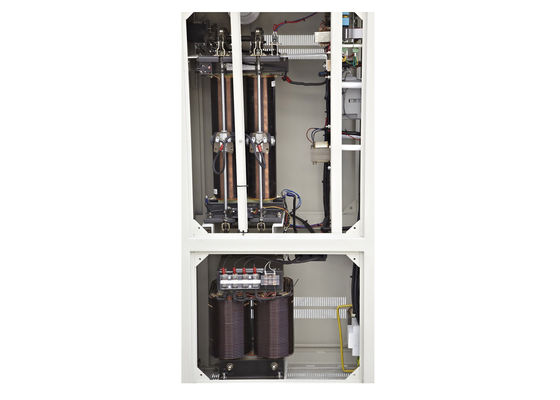

Large Image :  High Power Mechanical Automatic Voltage Regulator 100 KVA DBW 220V IP20 AC

Product Details:
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: DBW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 500 unit/month
Detailed Product Description
High Light:

high power voltage regulator

,

automatic voltage regulator avr



100KVA DBW 220V IP20 AC Single Phase Automatic Voltage Regulator 50Hz / 60Hz



Quick Detail:





Capacity 100KVA
Certificate CE
Model DBW
Phase Single Phase





Description:



Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.



Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.







Applications:





BROADCAST: Regulation for broadcast transmitter sites and studios.



COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.



INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.



MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.



TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .







Specifications:



Input Voltage

Single phase 220V±20%

The other input voltage range and rated voltage can be custom designed.

Output Voltage

Single phase 220V±1-5%,

The other output voltage can be custom designed.

Supply Frequency 50/60Hz
Insulation Resistance ≥2MΩ
Voltage Regulation Mode Independent phase regulation for three phase
Waveform Distortion nil
Insulation Class H class
Method of Voltage Regulation Regulation transformer with servomotor
Insulated Strength Single phase: 2000V/1min without puncture
Efficiency >97% on full load
Overload Rating Withstand 200% overload in short time
Protection class IP20(indoor), outdoor type on request
Electrical safety CE equivalent
Operational Temperature -20 °C to +45 °C
Functions Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start







Competitive Advantage:



Extremely wide voltage regulation range

· Maintenance free roller type carbon brush

· Individual regulation with unique small dimension

· Maximum capacity up to 5000KVA

· High Mean time Between Failure(MTBF)

· Reliable and quiet servo motors

· Wheels mounted for easy installation

· Start up delay to prevent over current inrush

· Isolation transformer on request

· Indoor or outdoor version on request
