Water Cooled Cummins Diesel Generators 68KW , Automatic Control Panel

Water Cooled Cummins Diesel Generators 68KW , Automatic Control Panel

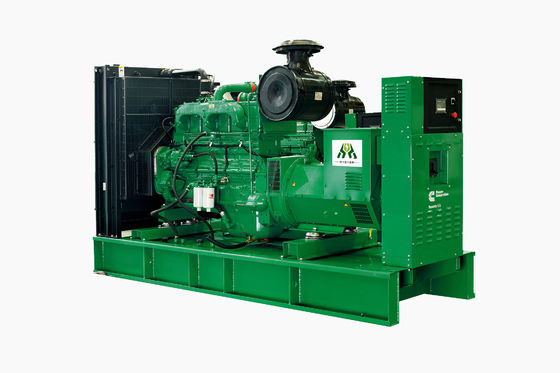

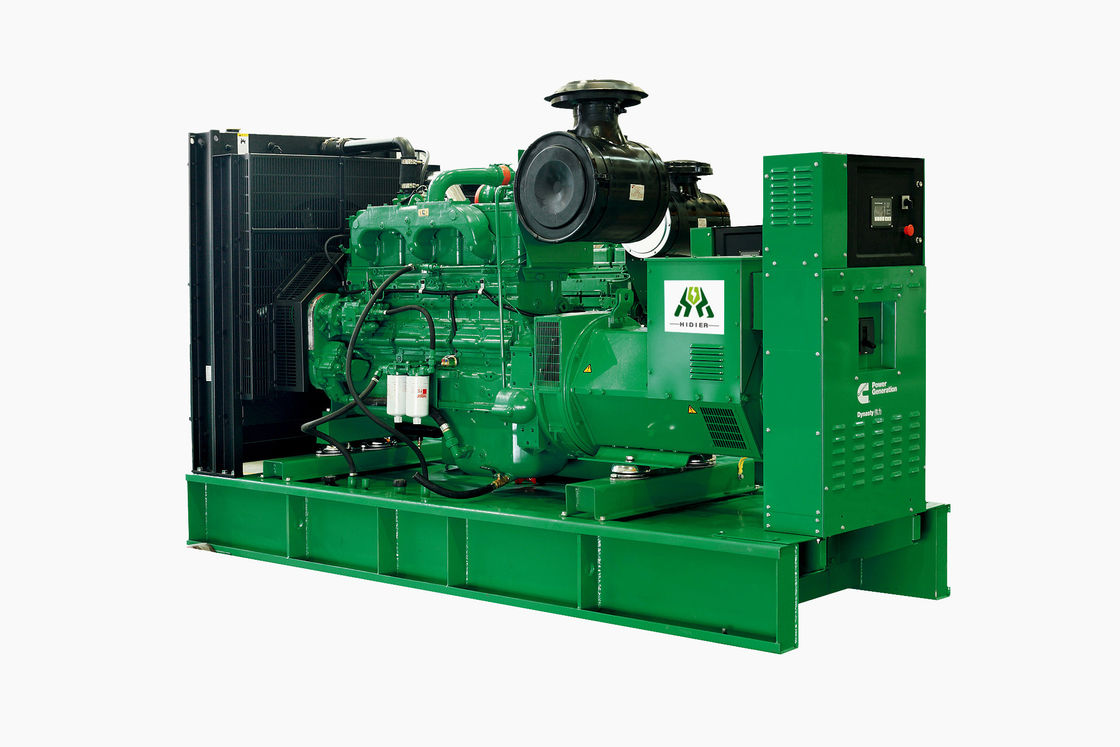

68KW Cummins diesel generator set powered by Cummins engine 6BT5.9G1 and original Stamford or LEROY SOMER alternator Silent /Open type 50/60Hz HDC75

Quick Detail:

1. 68W Cummins diesel generator HDC75

2. Engine: Cummins engine 6BT5.9G1

3. Alternator: original Stamford or LEROY SOMER alternator

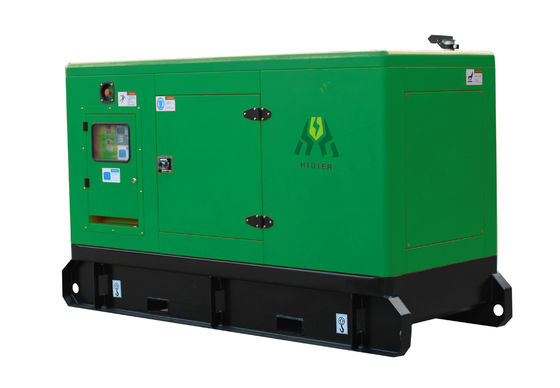

4. Optional:silent type /Open type; 50Hz / 60Hz

Description:

Hidier Cummins Power Station Series powered by Dongfeng Cummins(DCEC CUMMINS), Chongqing Cummins (CCEC CUMMINS) and original US Cummins, it enjoys the features of high reliability, easy maintenance, long continuous running hours and ideal for port, railway, industrial and mining.

Hidier is an approved Cummins OEM partner. So we can provide genuine Cummins genset with very competitive price and comprehensive technical support. HDC75 has following features:

Engine Features:

1. Cummins engine 6BT5.9G1

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

Alternator Features:

1. World famous brand AC alternator: Stamford or LEROY SOMER

2. Brushless, 4 poles, rotation magnet

3. IP23 (NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1. Automatic control panel, LCD display

2. Four protection systems

3. Emergency stop

Applications:

Hidier Power Station Series ideal to run as a reliable power supply in factories, ports, field operations, museums, schools, hospitals, data centers and commercial buildings, etc.

Specifications:

GENERAL INFORMATION

(1)Prime Power: ratings are as per DIN 6271, BS55114 and ISO-3046 with 10% overload capacity

(2)Standby Power: Power available at variable load for up to a max. of 500 hours during one year of which 300 hours may be for continuous use

(3)Operation at Altitude ≤1500m, Ambient Temperature ≤ 40℃).If altitude, higher than 1500m, each 100m will cause additional de-rating 1%.

Competitive Advantage:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory and CCIB inspection

5. ISO9001 and CE certification
