Product Details:
Payment & Shipping Terms:
|
| Output Power: | 120KW 150KVA | Frequency: | 50/60HZ |
|---|---|---|---|
| Voltage: | 220v - 690v Optional | Engine: | Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional |
| Alternator: | Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional | Controller: | Deepsea, Smartgen, Harsen For Optional |
| MCCB: | ABB Or Delixi | Cooling System: | Water Cooled |
| Genset Type: | Open Type, Silent Type, Container Type, Trailer Type For Optional | ATS: | Optional |
| High Light: | perkins silent diesel generator,open type genset |
||

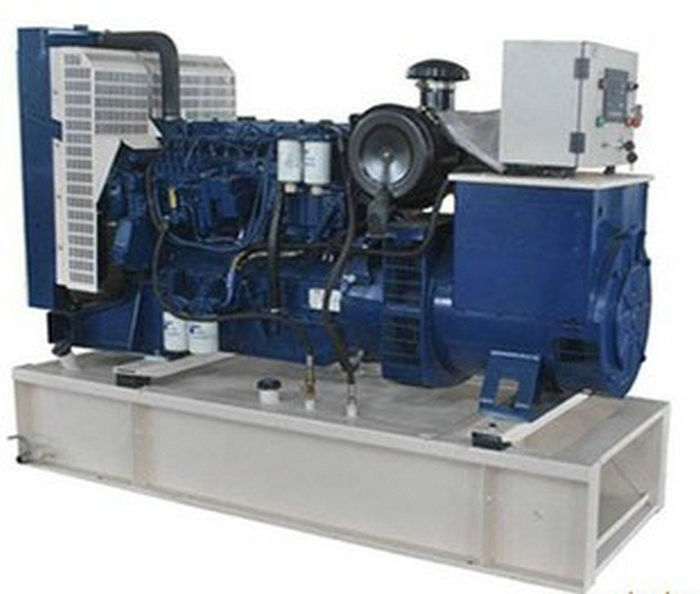

Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO
|
Technical data |
|
|
Genset Model |
PF-P150 |
|
Prime Power |
120KW/150KVA |
|
Rated Voltage |
400/230V |
|
Frequency |
50/60Hz |
|
Power Factor |
0.8(lagging) |
|
The regulating rate of steady voltage |
≤±0.5% |
|
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
|
The time of steady voltage |
≤1.5sec |
|
The waving rate of voltage |
≤1.0% |
|
The regulating rate of steady frequency |
≤3% |
|
The regulating rate of instantaneous frequency |
≤±10% |
|
The time of steady frequency |
3sec |
|
Dimension (L×W×H) (mm) |
2650*760*1600 |
|
Genset weight (kg) |
1450 |
|
Diesel Engine |
|
|
Brand |
PERKINS |
|
Model |
1006A-TAG2 |
|
Number of Cylinders |
6 |
|
Rotating Speed |
1500RPM |
|
Cycle |
Four stroke |
|
Type |
waste gas turbine boost,direct spurting type |
|
Bore×Stroke(mm) |
100*127 |
|
Displacement(L) |
6 |
|
Lubricating Capacity(L) |
19 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Speed Stability (%) |
≤5% |
|
Fuel Consumption at 100% Load |
208g/kw.h |
|
Starting Method |
DC24V Electrical starting |
|
Alternator |
|
|
Brand |
Stamford |
|
Model |
HSJ274D |
|
Number of Phase |
3 |
|
Connecting Type |
Three Phase and Four Lines |
|
Number of Bearing |
1 |
|
Grading Protection |
IP23 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless (AVR automatic voltage regulating) |
|
Insulation Class |
H degree |
|
The components of the genset |
|
|
(1) PERKINS Diesel Engine; (2) Stamford Alternator; (3) Control Panel |
|
|
Control Panel |
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
|
Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
Contact Person: Mr. Song
Tel: 86-137367899
Fax: 86-755-7287468
