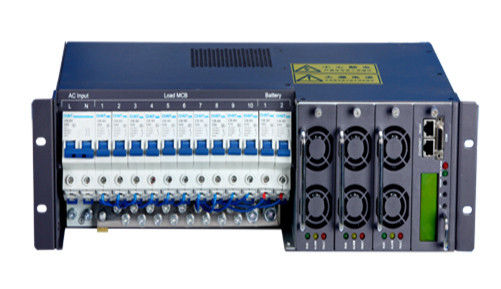

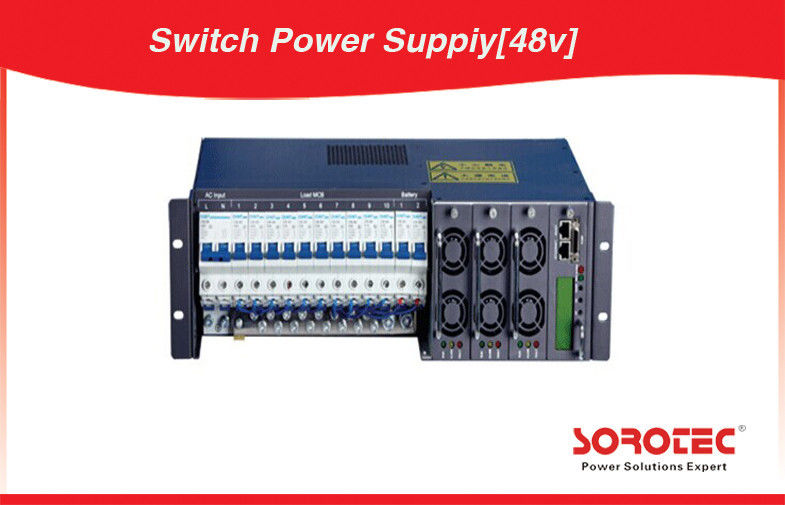

High Efficiency 48V DC 90A Embedded Power Supply System

High Efficiency 48V DC 90A Embedded Power Supply System
High Efficiency 48V DC 90A Embedded Power Supply System High Efficiency 48V DC 90A Embedded Power Supply System

Large Image :  High Efficiency 48V DC 90A Embedded Power Supply System

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: Embedded System - 3U48V90A
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Rated Voltage: 220V AC Intput Voltage Range: 85 - 300V
AC Frequency Range: 45 - 66HZ
High Light:

dc 48v power supply

,

48 volt power supply

High Efficiency 48V DC 90A Embedded Power Supply System

Application:
Small SPC exchange
AN(access network)
Transmission equipment
Moving communication


AC Input:
Rated input voltage: 220V

AC input Voltage range: 85-300V

AC input Frequency range; 45-66HZ

Power factor: ≥ 0.99

Efficiency: >92%


DC Input:
Rated voltage:48V

Voltage range: 42-60V

Rated Current :30A/45A/60A/90A

Load shunt:10 road load

Battery shunt : 2 road battery

Battery LVD:100A× 1

Mode of connection:Former connection wire

Rectifier Module:SR4810, SR4815, SR4820, SR4830

Monitoring Module:STM-1



Safety characteristics:
Input ----output 3000vac/10mA//1min

Input---- chassis 2500Vac/10mA//1min

Input---- chassis 500Vac/10mA//1min

Environment:
Operating temperature:-40-+70° C

Humidity : ≤ 95% non-condensing


Mechanical characteristic:
Dimensions(W. H. D): 482.6*132*280(mm)

Weight(Kg); 15kg (include rectifier module)
