Telecom Power Supply 48V 200A UPS

Name: Telecom Power Supply 48V 200A UPS
Brand: SOROTEC
SKU: SP3U-48200
Price: 1 USD
Availability: InStock
Rating: 4.7 (104 reviews)

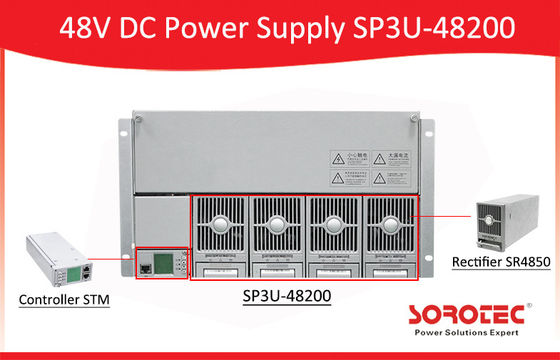

Large Image : Telecom Power Supply 48V 200A UPS

Product Details:

Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,ISO9000
Model Number:	SP3U-48200

Payment & Shipping Terms:

Minimum Order Quantity:	USD10000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	30% TT in advance, the balance before shipping
Supply Ability:	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Contact Now

Detailed Product Description

Power Supply Mode:	Single Phase (3 Phase Is Optional)	Input Voltage:	80 ~ 300 Vac
Input MCB:	125A/ 2Px1	Output Voltage:	42~ 58Vdc
Standard Battery MCB:	125Ax2	Standard LLVD Output Route:	63Ax 2, 32Ax4, 16Ax2
High Light:	dc 48v power supply , 48 volt power supply

High Efficiency Switch Power Supply SP3U-48200

Key Features:

1.Constructed with standard 19 inch screen, which has the advantage of wide use.

2.The data center area and the installation cost can be saved due to it small size and the embedded installation.

3.Wide input voltage range (85 -290Vac), the power gird is adaptable.

4.Perfect lightning protection.

5.Rectifiers are hot-pluggable. Easy and quick on line maintenance.

6.The rectifier uses DSP(Digital Signaling Processor) ology, makes the power density ran up to 14W/In3.

7.Battery management, prolongs the life of the battery well.

8.Have passed CE, UL, TLC, and other related certifications.

9.Excellent energy conservation and environmental protection.

Technical Specifications of SP3U-48200 High Efficiency Switch Power Supply :

SP3U-48200
AC Distribution
Power supply mode :	Single phase (3 phase is optional)
Input Voltage:	80 ~ 300 Vac
Input MCB:	125A/ 2P×1
DC Distribution
Output Voltage	42~ 58Vdc
Standard Battery MCB	125A×2
Standard LLVD Output Route	63A× 2, 32A× 4, 16A× 2
Rectifier
Mode	SR4850	SR4850 Plus
Input
Input Voltage	85Vac ~ 290Vac	85Vac ~ 305Vac
Power Factor	0.99	0.99
Efficiency	92%	96.3% peak
Max. Input Current	18A	22.5A
Output Voltage	-42Vdc ~ -58Vdc	-42Vdc ~ -58Vdc
Output Current	60A	73A
Operation Temperature	-40~+60°C	-40~+75°C
Controller STM
Display	LCD
CommunicationInterface	RS232,Ethernet
Analog input	1batterycurrents, 1busvoltage, 1battery Voltage,2temperatures, 4 midpoint battery voltage
Digitalinputs	2 load fuses, 4 battery fuses, 1 bi – stable contactor statues, 4 user inputs(Optional, need extra board) load fuse and battery fuse can be configured as midpoint battery voltage, load fuse and battery fuse
Outputs	1 LVD mono or bistable contactors, 1 LVD mono contactor, 8 user relay outputs (Optional, need extra board)
Protocol	HTTP,SNMP,YDN23
