Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122

Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122
Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122 Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122

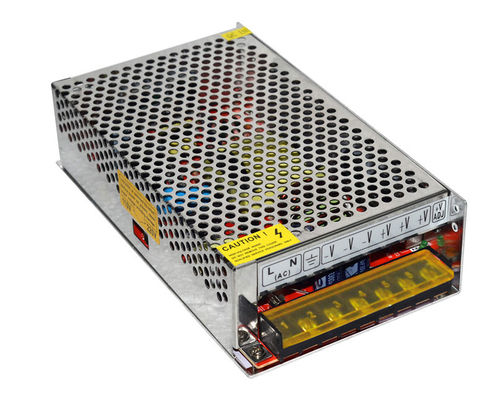

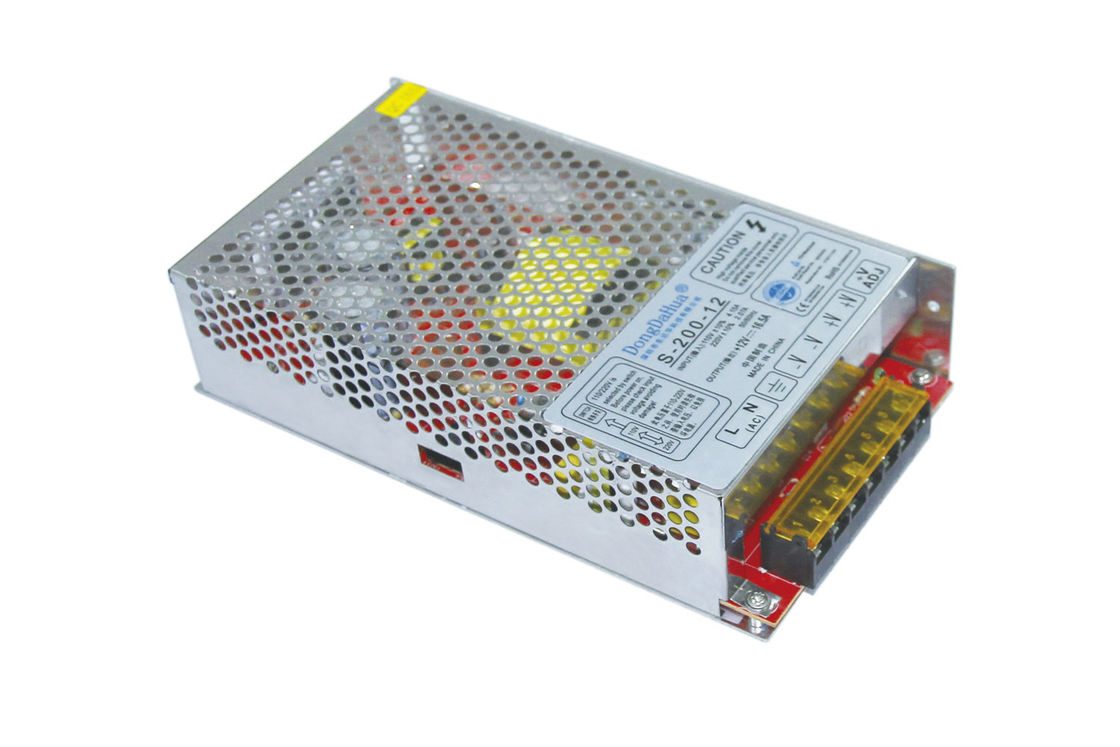

Large Image :  Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122

Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: S-200-12
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 8000 Pieces/Day
Detailed Product Description
High Light:

LED Power Supply Driver

,

Power Supply for LED

Short-circuit 12 Volt LED Power Supply 201W 16.5A IP20 EN1122



Quick detail:

Power: 200W

Current: 16.5A

Output: DC 12V-24V

Input: 176-264VAC

Efficiency : 80%

Warranty: 2 years





Description:

Double AC input voltage controlled by switch

Protection: short-circuit, overload, overheat

Naturally air cooled

LED power indicator

100% full-load aged

Holds on 300 VAC surge for 5 sec.

Working temperature up to 60℃

5G vibration tested

High efficiency, long life span, and high reliability





Specifications:



Product No. S-200-12 S-200-15 S-200-24 S-200-48
Output DC voltage 12V 15V 24V 48V
Capacity of current 16.5A 1.3A 8.3A 4.2A
Range of current 0-16.5A 0-1.3A 0-8.3A 0-4.2A
Power 200W 200W 200W 200W
Noise max. 2 150mVp-p 180mVp-p 240mVp-p 250mVp-p
Voltage adjustment 10.8-13.2V 13.5-16.5V 22-27.6V 44-52V
Voltage accuracy 3 ±1% ±1% ±1% ±1%
Linear Adjustment 4 ±0.5% ±0.5% ±0.5% ±0.5%
Load adjustment 5 ±0.5% ±0.5% ±0.5% ±0.5%
Start and rise time 1000ms,30ms/230VAC 1000ms,30ms/110V
Hold time (Typ) 50ms/230VAC  10ms/115AC
Input Voltage range AC 110V±15%/AC 220±15% change by switch
Frequency range 50HZ/60HZ
Efficiency (Typ) 80% 81% 82% 82%
AC current (Typ) 3.7A/110V  1.8A/220V
Surge current (Typ) Cold start: 65A/230VAC
Current leak <2mA/240VAC
Protection Overload Greater than 105% of capacity
Protection mode: hiccup, automatic restoration after abnormity removed
Overvoltage

Overheat

Environment Working temp. -20+60 (see tenuation curve)
Working humidity 2090% RH, without condense
Storage temp & hmdty -40+80
Temp. coefficient ±0.03%/ (050℃)
Vibration proof 10500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC Safety regulation GB195110.1-2004/IEC61347-1:2003  CE(EMC+LVD)
Voltage proof I/P-O:1.5KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC
insulation resistance I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/70% RH
EMC irradiation EN 55015:2006;EN61000-3-2:1995+A2:2005
EMC disturbance proof EN 61000-3-2:2006;
  Dimensions 200*110*50mm(L*W*H)
Packing 0.72kg/PCS;24PCS/18.2kg




Competitive Advantage:

· built-in EMI filter

· 100% load test

· Full range of input voltage

· output voltage accurate and stable

· Output over-voltage,  over-current and short-circuit protection

· Output low ripple and noise

· Two year warranty

· Average working no trouble >50, 000 hours
