DIV Digital INVT Inverter Power Supply CPU control technology

DIV Digital INVT Inverter Power Supply CPU control technology
DIV Digital INVT Inverter Power Supply CPU control technology

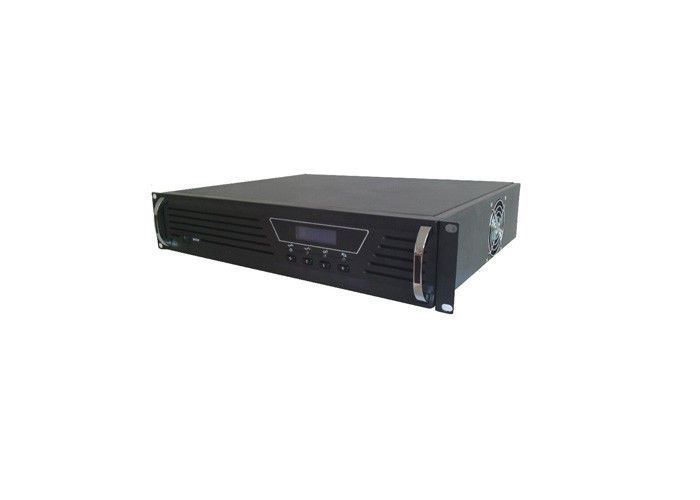

Large Image :  DIV Digital INVT Inverter Power Supply CPU control technology

Product Details:
Place of Origin: China
Brand Name: INVT
Certification: TUV,CE
Model Number: DIV Digital
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Box
Detailed Product Description
Input Voltage: 12V/24V/48V/110V/220V Reverse Noise Current: ≤10%
Bypass Volt(Vac): 265V-185V(±10V) Transfer Time(ms): ≤5ms
Voltage And Frequency: 220Vac,50HZ Voltage Precision(V): 50±0.1%
High Light:

ups power backup

,

ups uninterruptable power supply



DIV Digital INVT Inverter Power Supply CPU control technology





Description



DIV series sine-wave inverter is designed to facilitate power supply system and communication system. In consideration of the demand of office workers and motor room workers, this inverter features space-saving footprint, automatic management via network, and low noise.



Specifications



MODEL

DIV500

DIV1000

DIV 2000

DIV3000

DIV4000

DIV5000

DIV6000

Capacity

500VA

1000VA

2000VA

3000VA

4000VA

5000VA

6000VA

DC Input

Input Voltage(Vdc)

12V/24V/48V/110V/220V

Reverse Noise Current

≤10%

AC Bypass

Bypass Volt(Vac)

265V-185V(±10V)

Input Current(A)

2.3

4.5

9.1

13.6

18.2

22.7

27.3

Transfer Time(ms)

≤5ms

AC Output

Rated Capacity(VA)

500VA

1000VA

2000VA

3000VA

4000VA

5000VA

6000VA

Output Power(W)

400W

800W

1600W

2400W

2800W

3500W

4200W

Voltage and Frequency

220Vac,50HZ

Rated Current(A)

1.8

3.6

7.2

10.8

14.5

16

19.1

Voltage Precision(V)

220±1.5%

Frequency Precision(Hz)

50±0.1%

Wave Form

Sine wave

THDu

≤3%

Transient Response

5%

Power Factor(PF)

0.8/0.7

Overload Capability

120%,30sec

Efficiency

≥85%

Transfer to Bypass

≤5ms

Environment

Isolation(IN/OUT)

1500Vac,1min

Noise(1 meter)

≤40dB

Operation Temperature

-25℃~+50℃

Humidity

0~90%(non-condensing)

Altitude(m)

≤2000

Mechanical

Standard
(W*D *H)(mm)

482*356*88 (500VA;1KVA;2KVA) 482*388*88 (3KVA;4KVA;5KVA)
482*400*176 (6KVA)

Weight(Kg)

8.5KG(500VA,1000VA,2000VA,3000VA);12KG(4000VA) ;
12.5KG(5000VA) ;17KG(6000VA)



Features



CPU control technology
 SPWM technology with pure sine wave
 Powerful load capability and high compatibility
 Advanced reverse noise technology
 Settable to AC model and DC model
 Fault protection
 Interface:RJ45,dry contact
