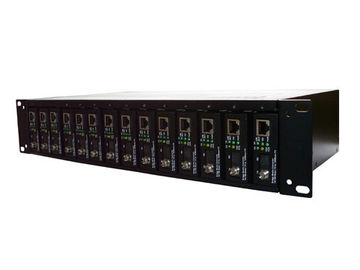

14-slot 2U rack for fiber video converter, single power or AC+AC or DC+DC power supplies

14-slot 2U rack for fiber video converter, single power or AC+AC or DC+DC power supplies
14-slot 2U rack for fiber video converter, single power or AC+AC or DC+DC power supplies

Large Image :  14-slot 2U rack for fiber video converter, single power or AC+AC or DC+DC power supplies

Product Details:
Place of Origin: China
Model Number: VOF-2U14
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Standard
Delivery Time: within 3~7 days
Supply Ability: sample available
Detailed Product Description

VOF series 2U-14-Slot Rack is cost-effective video converter rack (2U) widely used in the equipment room. Different types of stand alone type media converter developed by our company can be inserted into this rack, which total slots up to 14.


It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.


Features

· The configuration of active/standby power supply ensures un-interruptible operation of the system;

· Provide two power supplies AC 220V/DC-48V, enabling the system can work under many operating environments;

· Supporting simultaneous operation of several standalone type video converters at different rates, which greatly improves system adaptability;

· Each card supports hot swapping;

· Applicatory module types: VOF-100-M series (external power supply, standalone type).

· The configuration of active/standby power supply ensures un-interruptible operation of the system;

· Provide two power supplies AC 220V/DC-48V, enabling the system can work under many operating environments;

· Supporting simultaneous operation of several standalone type video converters at different rates, which greatly improve system adaptability;

· Each card supports hot swapping;

· Applicatory module types: VOF-100-M series (external power supply, standalone type).



Specifications

Parameter



Number of slots

14

Structure

2U rack

Power input

AC Voltage: AC 100~265V; frequency: 50/60 Hz

DC voltage: DC -36~72V

Power output

DC5V 12A

Ripple

≤20mv

Power configuration

Single power supply, or

dual power supply for warmbackup mode

LED indication

POWER (power supply)

Max power consumption

95W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions of rack

427mm* 230mm* 90mm

Applications

· Intelligence Traffic Monitor system (ITS)

· Metro/High-speed way monitor system

· Electric power/ hydraulic Safety Monitor system

· Industrial mining enterprises Security System

· Long-distance multimedia teaching/ Campus Security

· CATV long-distance transmission

· Building Automatic Security System



Order info



Model

Product description

VOF-2U14-2AC

14-slot dual-power supplies rack (220V) 19''2U

VOF-2U14-2DC

14-slot dual-power supplies rack (-48V) 19''2U

PS: single power supply is optional.
