208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva

208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva
208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva

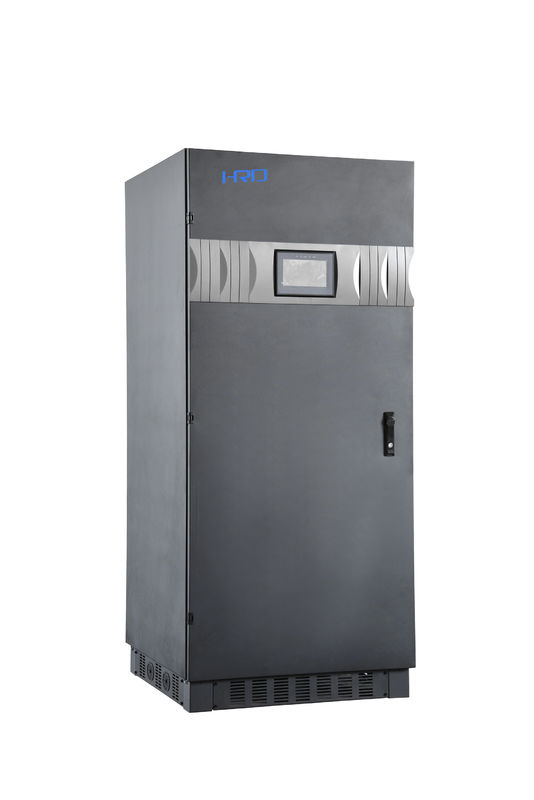

Large Image :  208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001:2008
Model Number: PVA3310II,PVA3315II,...PVA33200II,
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 3100usd/pcs
Packaging Details: 1PCS/CTN ,wooden case with pallet
Delivery Time: 4 weeks after down payment
Payment Terms: TT or LC
Supply Ability: 1000PCS/month
Warranty: 2years after shipment
Detailed Product Description
High Light:

three phase online ups

,

double conversion online ups

,

high frequency online ups



208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva





Introduction:



208Vac Online 3 Phase Ups Smart Double Conversion 10kva / 200kva



Powervalue America () is upgraded DSP controlled Online LF UPS with output isolation transformer.The application power gri are 190/208/220vac Line to line power grid. It can be your perfect large capacity power shield for your critical and industrial load.





Main Features:



QUALITY POWER SUPPLY


HRD PV(II)series is an On-Line double conversion (VFI) UPS with isolation output transformer, unit capacity from 10KVA to 400KVA. It is immune to the interferences on the electric power supply line as it has special input and output filters. World leading DSP technology, with high speed DSP processor are adopted to guarantee system’s high stability and giving stable output power supply for all kinds of harsh load.



PERFECT APPLICAITON:



Middle and large data center, Telecom, Finance, Traffic, Defense, Medical, Education, Energy, Manufacture, Industry, etc.



MAXIMUM RELIABILITY



MTBF >200,000h.
The advanced DSP technology appliance considerably improves reliability, since a reduction in electronic components lowers the likelihood of breakdowns. Digital control is provided by the microprocessor that, in the PV(II) series controls all the internal parameters, thus increasing reliability and performance. In parallel connections, digital control ensures balance of the currents, which generally change over time due to phenomena such as vibrations and temperature, between the UPS units and the exchange of information with no need for manual tuning. PV(II) has been designed so that it can be connected in parallel even after the installation of the first unit. The power availability can be increased thanks to various configurations available such as the parallel configuration, the Dual Bus function and the Dynamic Dual Bus system.



HIGH SPEED DSP PROCESSOR: Ensuring the operation more faster and more stable





OUTPUT 100% UNBALANCE LOAD
The UPS can accept 3phase 100% unbalance load to satisfy kinds of load configuration.





ECO function: under good power condition, UPS can work in ECO mode, efficiency reach 98%, green and energy saving;





UPS FOR INDUSTRIAL LOADS
PV(II) series with its strong overload capability, output galvanic isolation and low harmonic current distortion, is the ideal solution for industrial applications.

Thanks to the high battery current, PV(II) Series is suitable to work with large battery banks as it can guarantee recharging in 10 hours as recommended by the battery manufacturer.





OPERATING FLEXIBILITY:All power ratings of the PV(II) series can also be used as Frequency Converters 50 to 60 Hz and vice versa.





COLORFUL MULTIFUCTIONAL PANEL


The 7 inch colorful multifunctional panel allows easy and humanized operation of the UPS. It gives access to the most important parameters: status and alarms, control commands, input, output, battery measurements (power, current, voltage, frequency and temperature) and settings. The PV(II) series’ diagnostics system includes up to 128 alarms or messages allowing precise and detailed identification of any event.





Advanced Battery Management (ABM)


Optimal battery management includes:

  • Periodic battery test, and automatically transfer between boost charging and float charging to extend battery lifespan
  • Automatically adjusting the battery charging current according to battery capacity
  • Recharge temperature compensation (optional)
  • Remaining  back up time display



MAXIMUM SAFETY FOR PERSONNEL


The back feed protection device prevents any voltage back feed in the upstream distribution board, thus ensuring the safety of the maintenance personnel.



FULL FRONT ACCESS AND CONVENIENT CABLE CONNECTION


Full frontal access is for all power and electronic components, which reduces the floor space required and consequently reduces the installation costs.

Configured with top and bottom cable connection



PERFECT HUMAN-MACHINE COMMUNICATION


UPS Monitor software displays the most important information such as the input and output voltage, the load applied, the remaining back-up time, etc., in the form of bar graphs. The software is able to provide information even in the event of a failure, in support of the fault diagnostics. The UPS Monitor software can be used to program the automatic shutdown of all open systems in the event of a prolonged black out. PV(II) can also operate with a network agent for applications on LAN or WAN networks.

The UPS contains the following hardware interfaces:

  • RS232 /RS485 interface,
  • Dry contacts: battery low,battery discharge,bypass/breakdown
  • EPO (Emergency Power Off) contact for UPS shutdown using the remote emergency button.
  • SNMP card(optional)



ADVANCED PARALLEL


Maximum parallel up to 8 units and share the common battery pack.10-80kva parallel  can be with parallel card only ; 100kva-200kva, parallel card  with  weaver reactance and different capacity UPS can be also be parallel;



DYNAMIC DUAL BUS SYSTEM


Two independent systems set in Dual Bus Configuration can be merged together at any time for system expansion or maintenance. This provides a lot of flexibility in your installation in case of maintenance or when it is necessary to change the redundancy level of both systems.



EVENT LOG:



1000 historical events can be saved, which is easy for tracing UPS operation status and useful for maintenance

Technical specification:

1)  10-80KVA specification:

Model

PVA3310ii

PVA3315ii

PVA3320ii

PVA3330ii

PVA3340ii

PVA3360ii

PVA3380ii

Capacity

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

system

Output PF

0.9 (lag)

System efficiency  (inverter mode)

92%(@100% load) ;90% @50%load;

System efficiency  (ECO mode)

98%(@100%load)

Maximum leakage current

100(mA)

MTBF

Above 200,000hours

Dry contact

 Standard: 3 types signal(BAT. low,battery mode,bypass /failure);

Optional:14 dry contact ; output: 12Vdc 80mA

Communication interface

Standard RS232,optional: RS485 / MODBUS

Operation temperature

0 ~ 40 °C

Humidity

95 % (non-condense)

Cooling

Forced air(speed varying according to load percent)

Max. altitude

Within 1000m(every 100increase,capacity decrease -1%),Maximum 4000m

Noise (dB)

52 ~ 58

IP protection

(EN 60529)

IP20

Input/output way

Bottom /rear

Safety standard

safety:GB4943 ,EN 50091-1;EMI:GB7260.2,GB/T 17626.2~5EMC, EN 50091-2

Physical

W *D*H(mm)

600*600*1280

800*800*1480

Weight(Kg)

230

250

260

305

345

500

560

AC input

Rated voltage

 190/208/220VAC (Line-Line) Three-phase three-wire

Input voltage range

± 15 %- ± 25 % adjustable)

Rate frequency

50 / 60 Hz  auto-sense

Frequency range

50/60Hz+/-5Hz

Input soft start function

0 - 100%,10-300s(settable)

Input power factor

Reachable 0.99(plus harmonic filter)

Input current harmonic component(THDi )

Can <5%(plus harmonic filter)

Max. input current [A]

18

27

36

54

72

108

144

The output characteristic of the rectifier

Maintain the voltage (20°C)

Battery type1 and 2 :V =435Vdc (2.266 x el.)

Battery type 3 :V =424Vdc (2.21 x el.)

 Battery type 0:the voltage value between type 1and 2,

Voltage regulating range: V =400~460Vdc

Charging voltage (20°C)

Battery type1 and 2 :V (%recharging<95%) = 445Vdc (2.32 x el.)

Battery type 3 :V (%recharging<95%) = 460Vdc (2.4 x el.)

Battery type 0: the voltage value between type 1and 2,

Voltage regulating range: V =400~460Vdc

The highest charging voltage

445V

The charger output voltage regulation accuracy

1%

DC ripple voltage component

≤1%

Battery

Unit number(rated voltage)

384VDC(360-384v,selectable)

Charging current settings

0.1C(battery capacity)

The battery discharge end voltage

Battery type 1,2 and 3:no-load discharge current,V min=346 [V dc]

Battery type 1,2 and 3:output current =Ah capacity,V min=316 [V dc]

Battery type 1,2 and 3:output current >Ah capacity,V min=306 [V dc]

Battery type 0: the factory set the default values,V min=320 [V dc]

Regulating range: V min =300~360[V dc]

Inverter output

Rated capacity  [KVA]

10

15

20

30

40

60

80

Rated power  [KW]

8

12

16

24

32

48

64

Rated voltage  [V]

 190/208/220VAC(Line to Line),   three-phase four-wire

Rated current  [A]

24

36

48

72

96

144

192

Phase voltage setting

100 ~ 127 V (control board)

Peak factor

3:1

Waveform

Sine wave

Voltage phase shift (degrees)       100% balanced load

± 1'

Voltage phase shift (degrees)

100% unbalanced load

± 2'

Phase voltage difference         100% balance load

± 1 %

Phase voltage difference         100% unbalanced load

± 3 %

Total harmonic content(THD v)                                100% linear load

<2%

Total harmonic content(THD v)                               100% non-linear load

<5%

Steady-state voltage stability

± 1 %

Transient voltage response

± 5 % within 10ms

Rated frequency

Same as input

Frequency stability

When asynchronous,± 0.5 %;synchronization,± 2 %

(can be set to ± 1~5 %,by the panel operation)

Overload

  600’ / 10’ / 1’ (110/125/150% rated current)

Short circuit 0.1s

Double input

Inverter efficiency           (load 100%)

98%

Bypass

Rated capacity  [KVA]

10

15

20

30

40

60

80

Rated voltage  [V]

 190/208/220VAC(Line to Line), Three-phase four-wire

Input voltage range

±15 %(can be adjusted from the control panel ± 10 %,± 20%)

Rated frequency       [Hz]

50 / 60

Frequency range

±2 %(can be adjusted from the control panel ± 5 %)

“STAND-BY ON”(Eco mode, the bypass switch to inverter)transfer time

2~5ms

Inverter/bypass transfer time

<1ms

Overload

10’/1’/18” (150/175/200% Rated current)

Standard configuration

Feed flow protection, bypass independently isolated

1)  100-200KVA specification:

Model

PVA33100ii

PVA33150ii

PVA33160ii

PVA33200ii

Capacity

100KVA

120KVA

160KVA

200KVA

system

Output PF

0.8 (lag)

System efficiency  (inverter mode)

92%(@100% load) ;90% @50%load;

System efficiency  (ECO mode)

98%(@100%load)

Maximum leakage current

100(mA)

MTBF

Above 200,000hours

Dry contact

 Standard: 3 types signal(BAT. low,battery mode,bypass /failure);

Optional:14 dry contact ; output: 12Vdc 80mA

Communication interface

Standard RS232,optional: RS485 / MODBUS

Operation temperature

0 ~ 40 °C

Humidity

95 % (non-condense)

Cooling

Forced air(speed varying according to load percent)

Max. altitude

Within 1000m(every 100increase,capacity decrease -1%),Maximum 4000m

Noise (dB)

52 ~ 58

IP protection

(EN 60529)

IP20

Input/output way

Bottom /rear

Safety standard

safety:GB4943 ,EN 50091-1;EMI:GB7260.2,GB/T 17626.2~5EMC, EN 50091-2

Physical

W *D*H(mm)

800*800*1800

1400*800*1800

Weight(Kg)

610

710

1200

1500

AC input

Rated voltage

 190/208/220VAC (Line-Line) Three-phase three-wire

Input voltage range

± 15 %- ± 25 % adjustable)

Rate frequency

50 / 60 Hz  auto-sense

Frequency range

50/60Hz+/-5Hz

Input soft start function

0 - 100%,10-300s(settable)

Input power factor

Reachable 0.99(plus harmonic filter)

Input current harmonic component(THDi )

Can <5%(plus harmonic filter)

Max. input current [A]

360

412

500

630

The output characteristic of the rectifier

Maintain the voltage (20°C)

Battery type1 and 2 :V =435Vdc (2.266 x el.)

Battery type 3 :V =424Vdc (2.21 x el.)

 Battery type 0:the voltage value between type 1and 2,

Voltage regulating range: V =400~460Vdc

Charging voltage (20°C)

Battery type1 and 2 :V (%recharging<95%) = 445Vdc (2.32 x el.)

Battery type 3 :V (%recharging<95%) = 460Vdc (2.4 x el.)

Battery type 0: the voltage value between type 1and 2,

Voltage regulating range: V =400~460Vdc

The highest charging voltage

445V

The charger output voltage regulation accuracy

1%

DC ripple voltage component

≤1%

Battery

Unit number(rated voltage)

384VDC(360-384v,selectable)

Charging current settings

0.1C(battery capacity)

The battery discharge end voltage

Battery type 1,2 and 3:no-load discharge current,V min=346 [V dc]

Battery type 1,2 and 3:output current =Ah capacity,V min=316 [V dc]

Battery type 1,2 and 3:output current >Ah capacity,V min=306 [V dc]

Battery type 0: the factory set the default values,V min=320 [V dc]

Regulating range: V min =300~360[V dc]

Inverter output

Rated capacity  [KVA]

100

120

160

200

Rated power  [KW]

80

96

128

160

Rated voltage  [V]

 190/208/220VAC(Line to Line),   three-phase four-wire

Rated current  [A]

240

288

360

480

Phase voltage setting

100 ~ 127 V (control board)

Peak factor

3:1

Waveform

Sine wave

Voltage phase shift (degrees)       100% balanced load

± 1'

Voltage phase shift (degrees)

100% unbalanced load

± 2'

Phase voltage difference         100% balance load

± 1 %

Phase voltage difference         100% unbalanced load

± 3 %

Total harmonic content(THD v)                                100% linear load

<2%

Total harmonic content(THD v)                               100% non-linear load

<5%

Steady-state voltage stability

± 1 %

Transient voltage response

± 5 % within 10ms

Rated frequency

Same as input

Frequency stability

When asynchronous,± 0.5 %;synchronization,± 2 %

(can be set to ± 1~5 %,by the panel operation)

Overload

  600’ / 10’ / 1’ (110/125/150% rated current)

Short circuit 0.1s

Double input

Inverter efficiency           (load 100%)

98%

Bypass

Rated capacity  [KVA]

100

120

160

200

Rated voltage  [V]

 190/208/220VAC(Line to Line), Three-phase four-wire

Input voltage range

±15 %(can be adjusted from the control panel ± 10 %,± 20%)

Rated frequency       [Hz]

50 / 60

Frequency range

±2 %(can be adjusted from the control panel ± 5 %)

“STAND-BY ON”(Eco mode, the bypass switch to inverter)transfer time

2~5ms

Inverter/bypass transfer time

<1ms

Overload

10’/1’/18” (150/175/200% Rated current)

Standard configuration

Feed flow protection, bypass independently isolated



Contact Details
CHINA UPS Electronics Co., Ltd.

Contact Person: Mr. Song

Tel: 86-137367899

Fax: 86-755-7287468

Send your inquiry directly to us (0 / 3000)
