Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 200/208VAC | Frequency: | 50/60 Hz |
|---|---|---|---|
| Voltage Range: | 176～279VAC(±3VAC) | Frequency Range: | 50HZ:(46～54HZ); 60HZ:(56HZ～64HZ) |
| Power Factor: | 0.98 | Voltage Regulation: | 200/208X (1±2%)VAC |
| Frequency Regulation: | 50/60 Hz±0.05Hz | Power Factor: | 0.7/0.8(Optional) Standard 0.7 |
| Current Crest Ratio: | 3;1 | DC Voltage: | 240VDC |
| High Light: | 110v step up transformer,igbt rectifier ups |
||

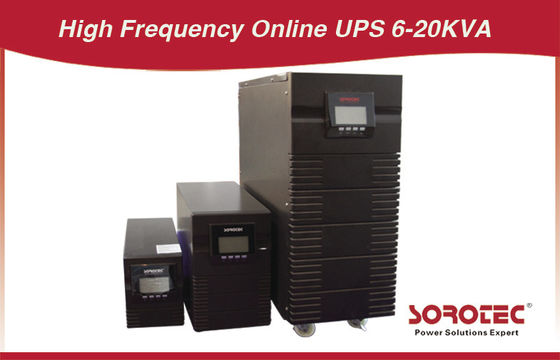

Large LCD N + N online 50Hz 4.2A 240VDC 10KVA / 8000W 110V UPS HP9116B
Key Features:
1.Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.
2.UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.
3.N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
4.Large blue back light LCD for detailed Real-time UPS status display.
5.Advanced online pure sine wave power supply system, with bypass repair switch, It can
provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.
6.Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…
Technical Specifications of Online UPS HP9116B 6-10K (1Ph in/1Ph out)
|
Model |
HP9116B 6-10KVA |
||||
|
6KT |
6KT-XL |
10KT |
10KT-XL |
||
|
Rated Power |
6KVA/4800W |
10KVA/8000W |
|||
|
Rated Voltage |
200/208VAC |
||||
|
Frequency |
50/60 Hz |
||||
|
Input |
|||||
|
Voltage Range |
176～279VAC(±3VAC) |
||||
|
Frequency Range |
50HZ:(46～54HZ); 60HZ:(56HZ～64HZ) |
||||
|
Power Factor |
0.98 |
||||
|
Output |
|||||
|
Voltage Regulation |
200/208X (1±2%)VAC |
||||
|
Frequency Regulation |
50/60 Hz±0.05Hz |
||||
|
Power factor |
0.7/0.8(Optional) Standard 0.7 |
||||
|
Voltage distortion |
Linear load<3% Non-linear load<6% |
||||
|
Overload Capability |
110%～150% for 30s change to bypass model, |
||||
|
Current Crest Ratio |
3;1 |
||||
|
Transfer time |
0ms(AC mode→ Battery mode) |
||||
|
Battery |
|||||
|
DC Voltage |
240VDC |
||||
|
Recharge Time |
7hrs to 90% of capacity after full load discharge |
||||
|
Recharge Current |
2A |
4.2A |
2A |
4.2A |
|
|
Display |
|||||
|
LCD |
Display input/output Voltage, |
||||
|
Communication |
|||||
|
Interface |
Smart RS232, SNMP card(optional), USB(optional) |
||||
|
Environment |
|||||
|
Operation Temperature |
0～40℃ |
||||
|
Humidity |
0～95% non-condensing |
||||
|
Storage Temperature |
-25℃～55℃ |
||||
|
Sea level elevation |
<1500m |
||||
|
Noise Level(1m) |
＜55dB |
||||
|
Physical |
|||||
|
Wright(KG) |
N.W. |
81 |
35.5 |
84 |
36 |
|
G.W. |
89 |
39.5 |
91 |
42 |
|
|
Dimension(D x W x H)mm |
570 X260 X717 |
||||
